MF58 100 X Glass Encapsulated NTC Thermistor 1K-1M Ω 5% 3950B Temperature Sensor

Brand: Unbranded

Series: MF-58

Type: NTC Thermistor

Manufacturer Warranty: 6 Months

Termination Style: Axial

Packaging: Bag

Resistance Rating: 1KΩ - 1MΩ

MPN: Does Not Apply

Material: Glass

Maximum Operating Temperature: 200 °C

Country/Region of Manufacture: China

Minimum Operating Temperature: -55 °C

MF58 100 X Glass Encapsulated NTC Thermistor 1K-1M Ω 5% 3950B Temperature Sensor.

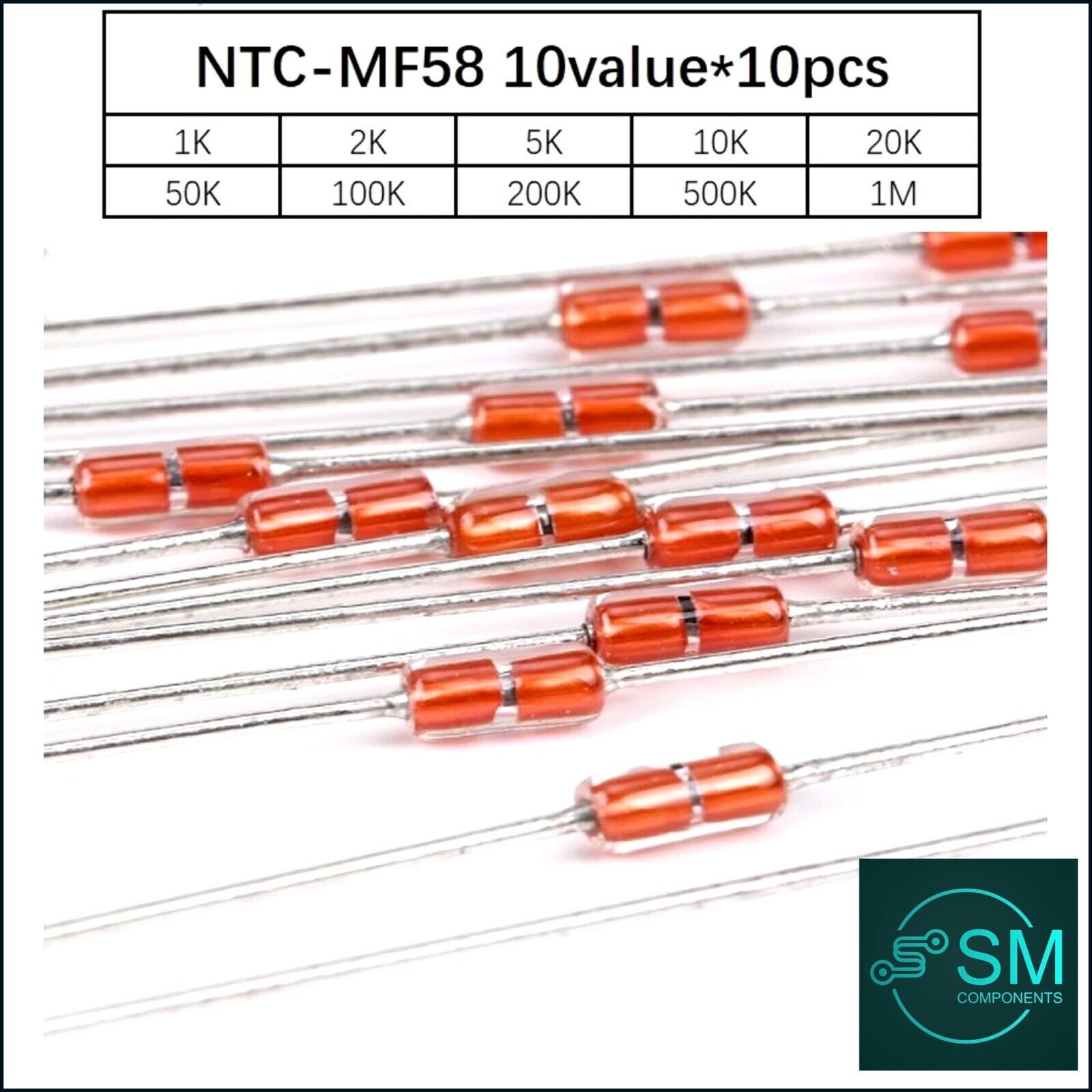

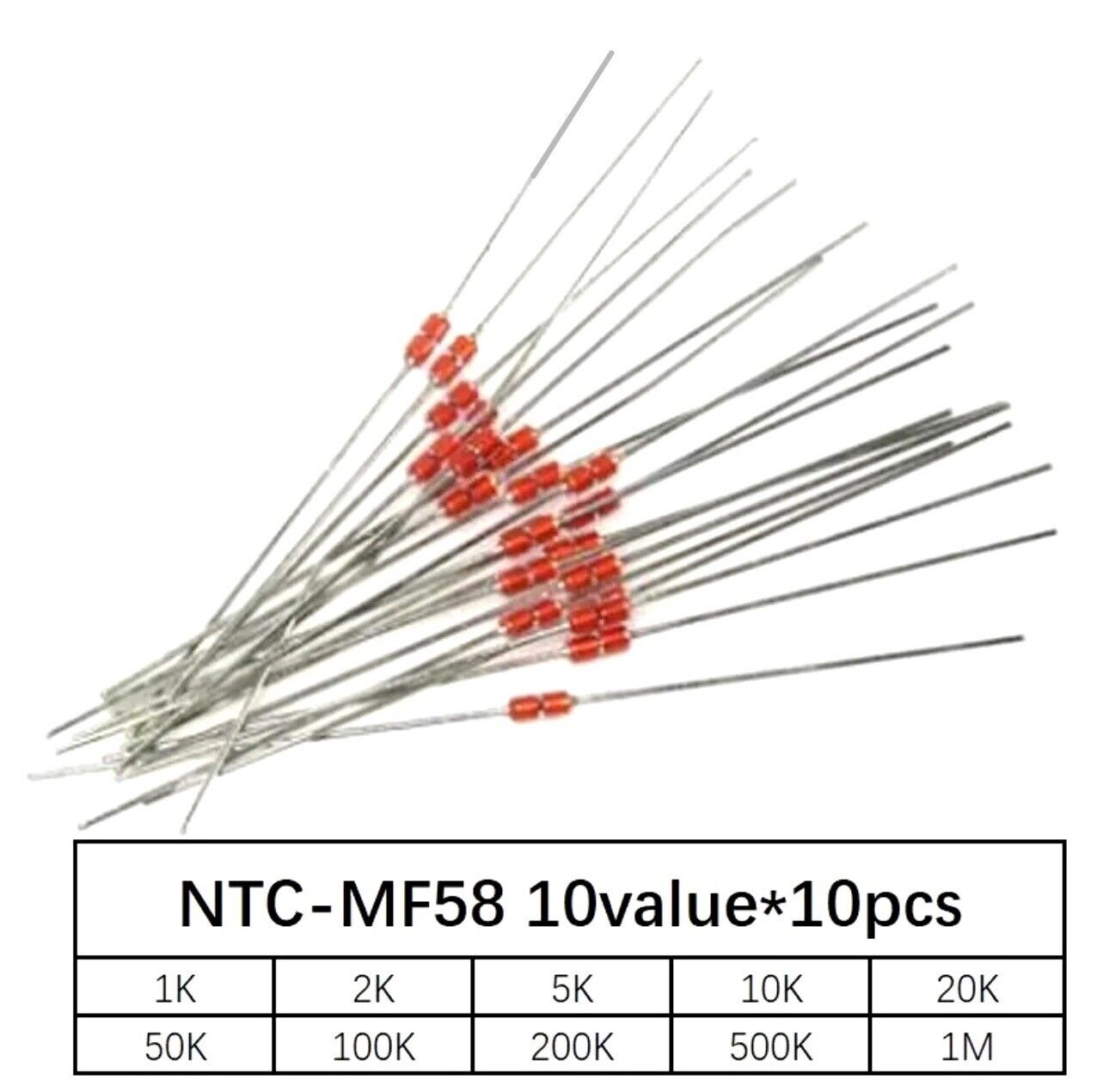

10 x 1K Ω

10 x 2K Ω

10 x 5K Ω

10 x 10K Ω

10 x 20K Ω

10 x 50K Ω

10 x 100K Ω

10 x 200K Ω

10 x 500K Ω

10 x 1000K (1M) Ω

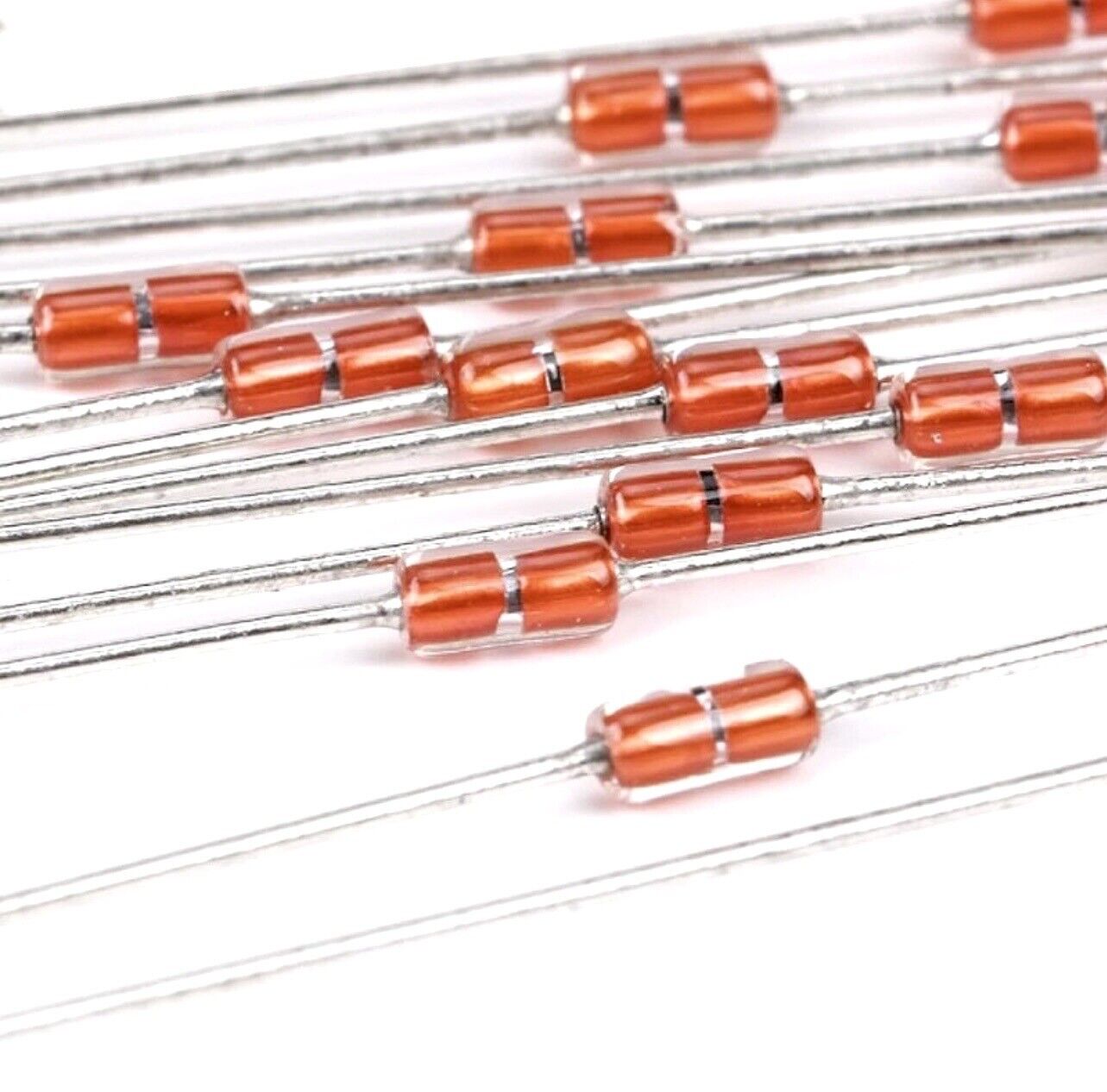

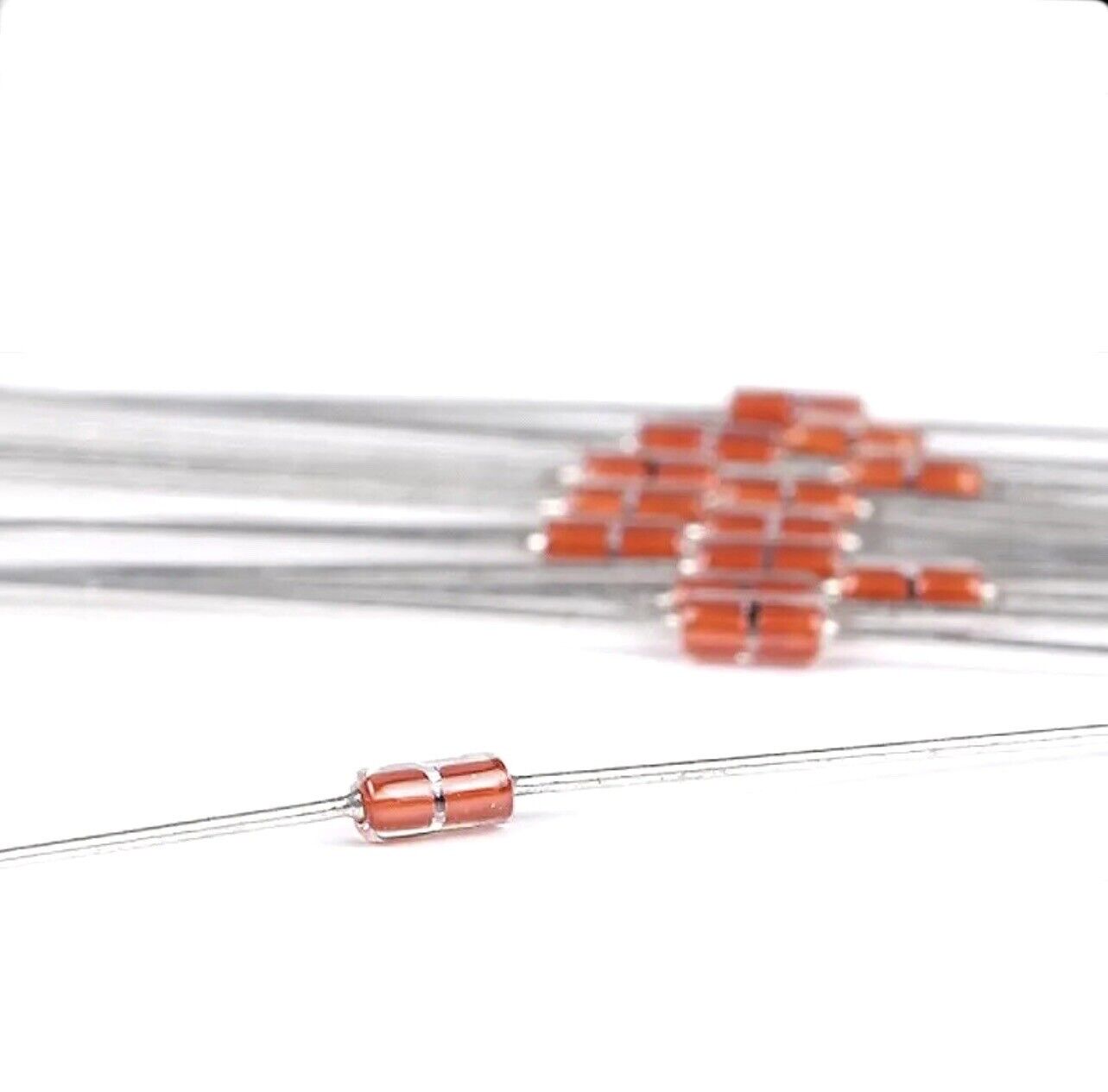

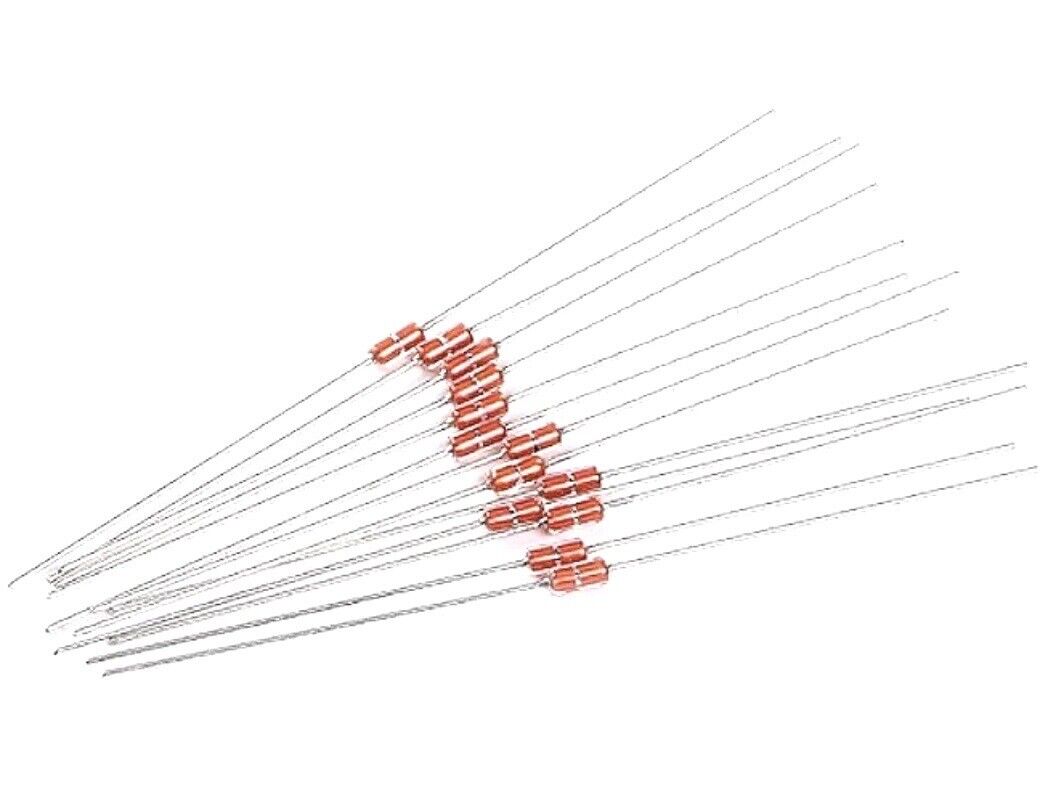

Glass Shell Precision NTC Thermistors

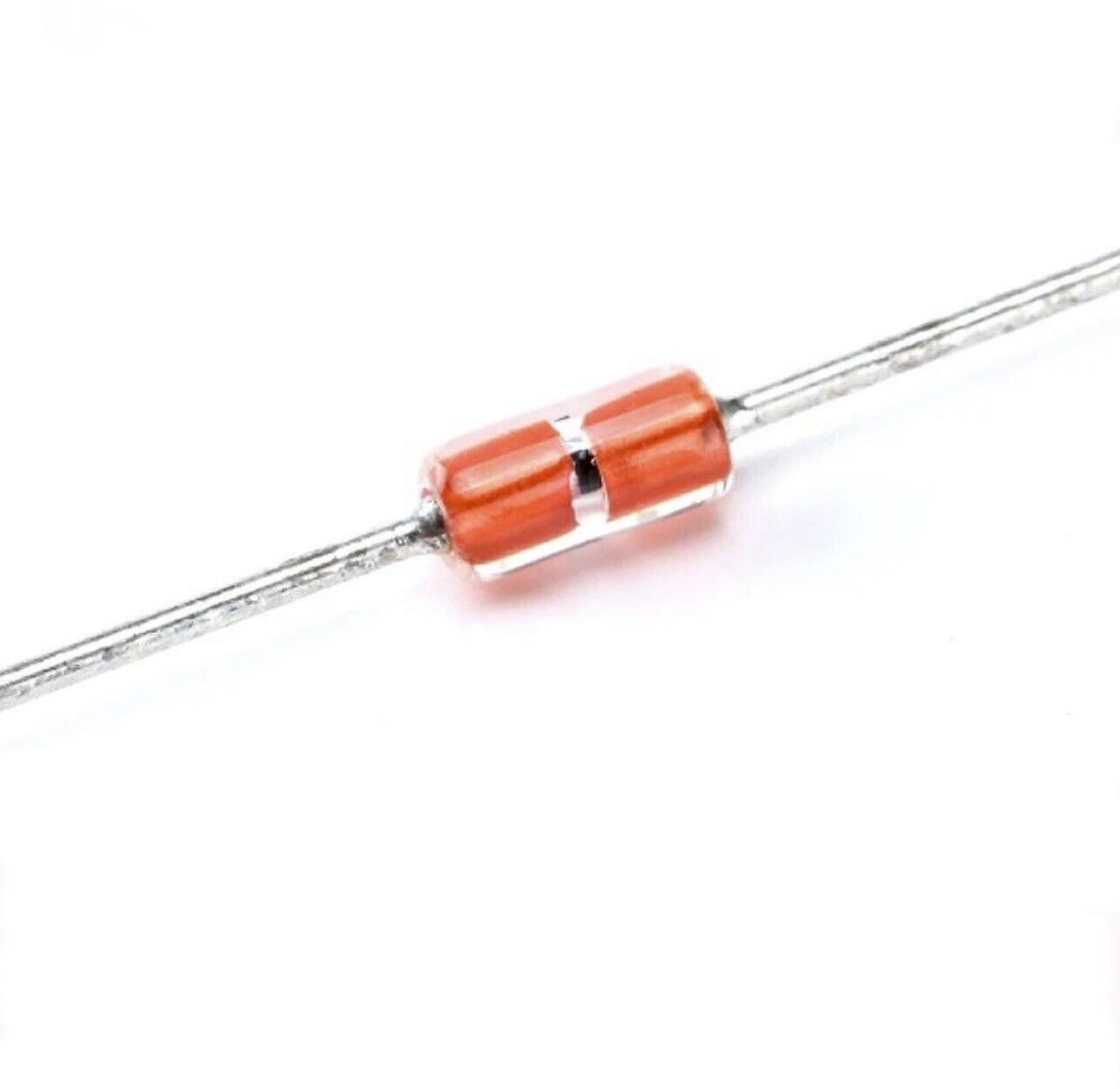

The MF58 is a NTC thermistor which is manufactured using a combination of ceramic and semiconductor techniques. It is equipped with tinned axial leads and then wrapped with purified glass.

Dimensions (mm)

Main Techno-Parameter

• Zero power resistance range (R25): 1K~1000KΩ

• Available tolerances of R25: J=±5%

• B value (B25/50°C) range: 3100~4500K

• Available tolerances of B value: ±0.5%, ±1%, ±2% • Dissipation factor: ≥2mW/°C (In Still Air)

• Thermal time constant: ≤20S (In Still Air)

• Operating temperature range: -55°C ~ +200°C

• Rated Power: ≤50mW

Applications

Temperature compensation and detection for:

• Household appliances (air conditioners, micrwave

ovens, electric fans, electric heaters etc.)

• Office equipment (copiers, printers etc.)

• Industrial, medical, environmental, weather and

food processing equipment

• Liquid level detection and flow rate measurement • Mobile phone battery

• Apparatus coils, integrated circuits, quartz crystal

oscillators and thermocouples.

Features

• Good stability and repeatability

• High reliability

• Wide range of resistance: 1K~1000KΩ

• Tight tolerance on resistance and Beta values • Usable in high-temperature and high-moisture

environments

• Small, light, strong package,

• Suitable for automatic insertion on thru-hole PCBs
