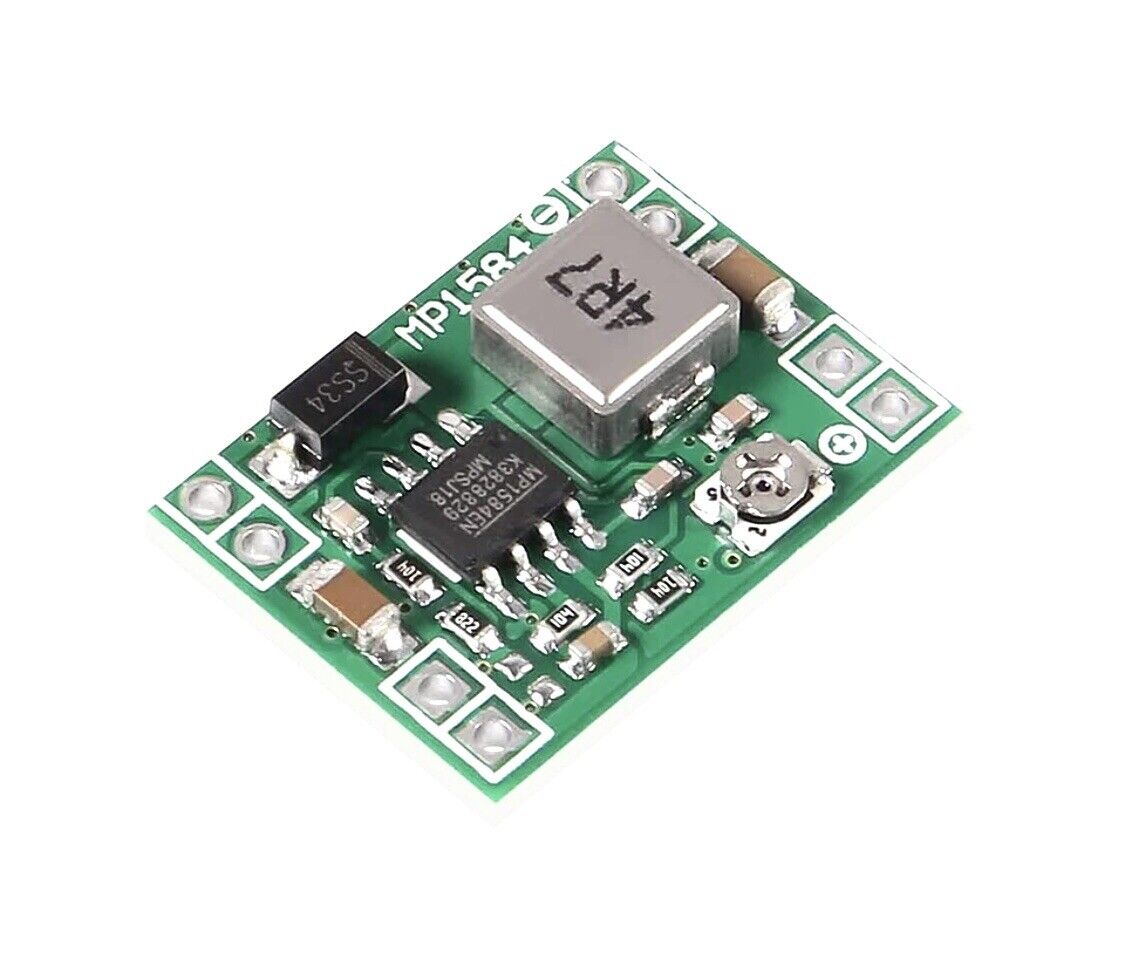

MP1584EN 4.5-28V to 0.8-18V 3A DC-DC Adjustable Converter Step Down Module DIY

Nominal Voltage Rating (DC): 28 V

Mounting Style: Stand Alone

Nominal Current Rating: 3 A

Plug Type: Solder Through Hole

Item Depth: 22mm

Minimum Operating Temperature: -40 °C

Colour: Green Black Silver

Brand: Unbranded

Output Voltage Rating (DC): 18 V

Item Height: 4.5mm

Inrush Current Rating: 3 A

Maximum Operating Temperature: 85 °C

Country/Region of Manufacture: China

Item Width: 17mm

3 x MP1584EN 4.5-28V to 0.8-18V 3A DC-DC Adjustable Converter Step Down Module. Sent with Australia Post regular Letter no tracking number.

MP1584EN 3A Ultra-Small Size DC-DC Step Down Supply Module Adjustable Power Step-down Descending Output 24V 12V 9V 5V 3V MP1584

DESCRIPTION:

The MP1584 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET giving 3A output with current mode control. The wide 4.5V to 28V input range accommodates a variety of step-down applications. A 100µA operational quiescent current allows use in battery-powered applications. By switching at 1.5MHz, the MP1584 can prevent EMI (Electromagnetic Interference) noise problems, such as those found in AM radio and ADSL applications.

Specification:

1. Model Name: Ultra-small DC-DC step-down module

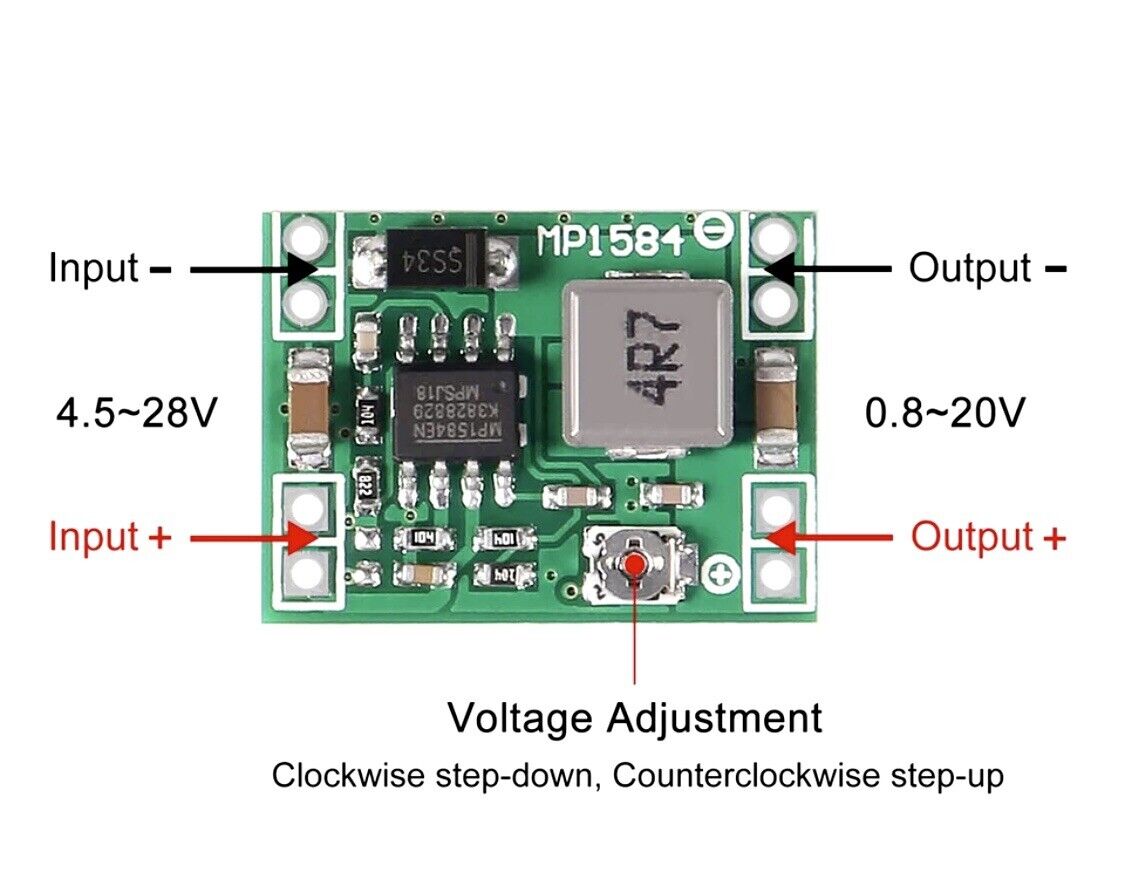

2. Input voltage: 4.5-28V

3. Output Voltage: 0.8-20V

4. Output current: rated current 3A(MAX).

5. Switching Frequency: 1.5MHz (highest), typical 1MHz

6. Output Ripple: < 30mV

7. Efficiency: 96% (max)

8. Operating temperature: -40 Celsius to +85 Celsius

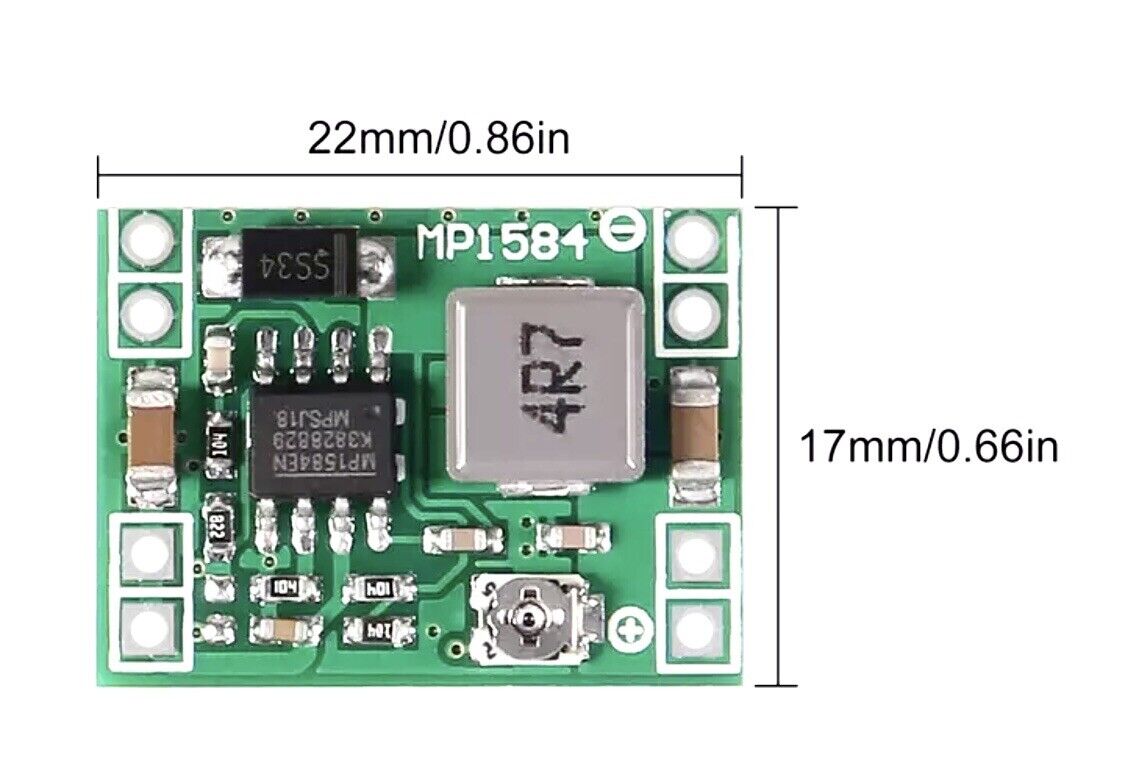

9. Size: 22mm*17mm*4mm

General Applications:

High Voltage Power Conversion

Automotive Systems

Industrial Power Systems

Distributed Power Systems

Battery Powered Systems

Content:

3 x MP1584EN Ultra-small DC-DC Step-down Power Supply Module.
