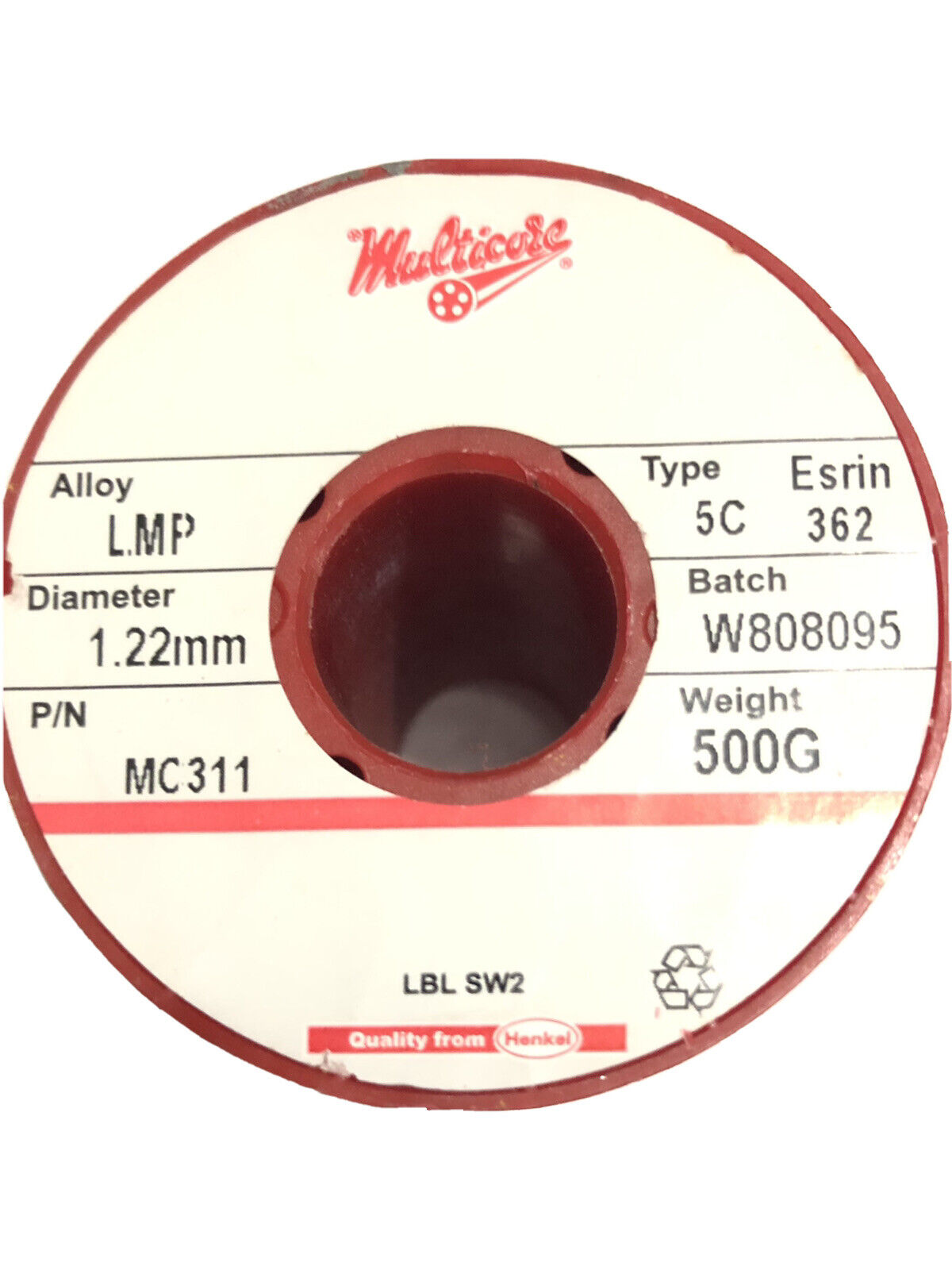

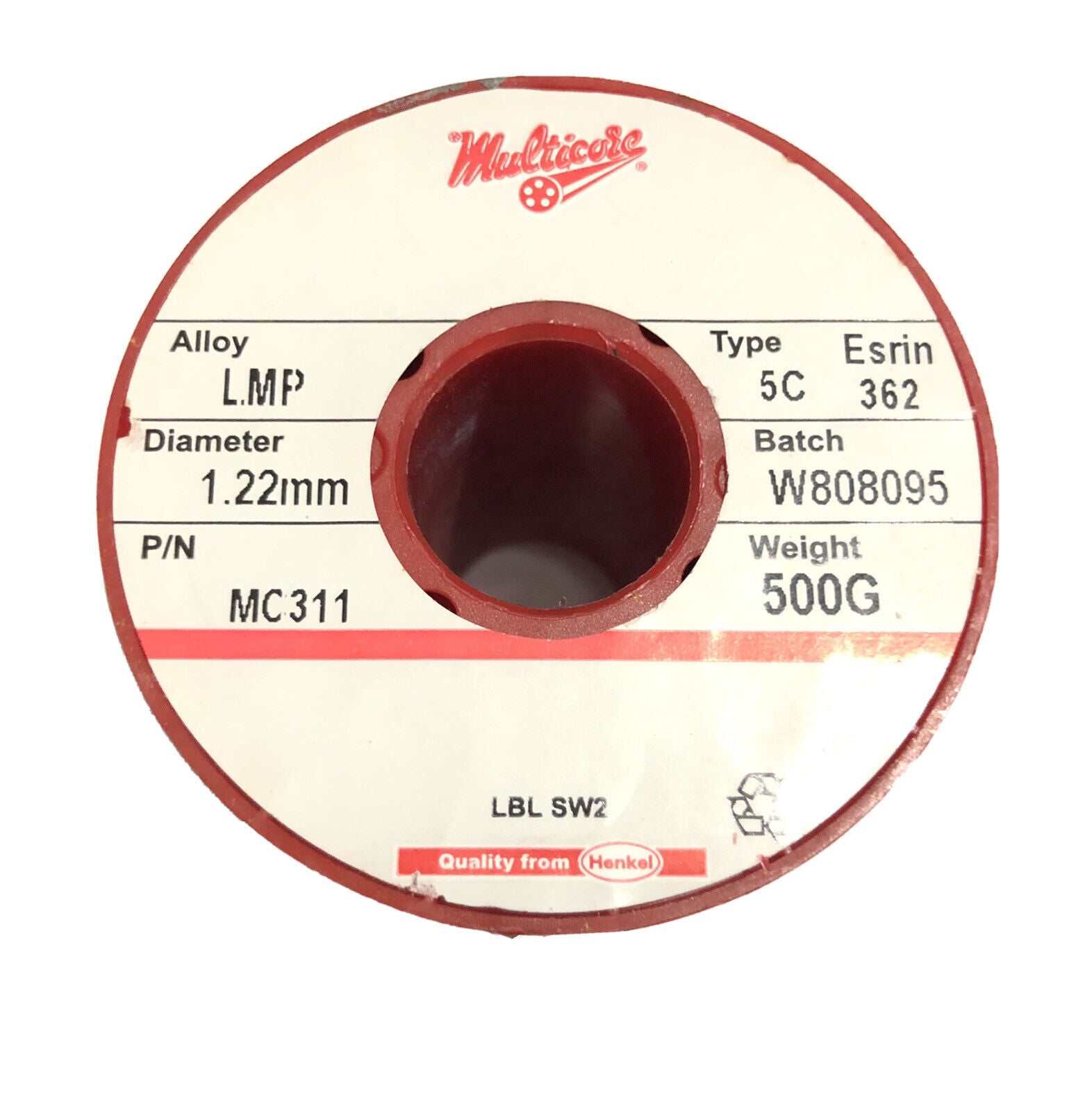

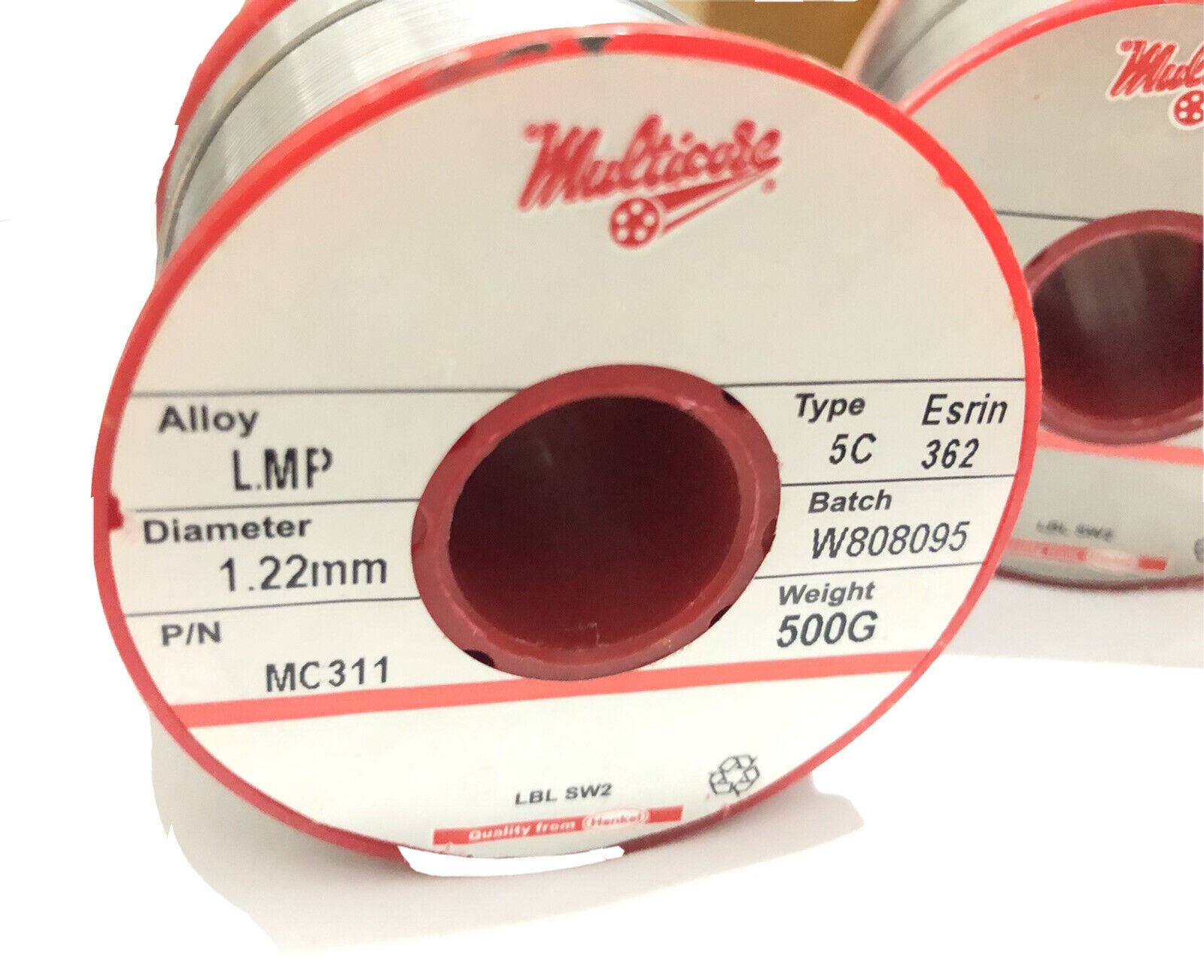

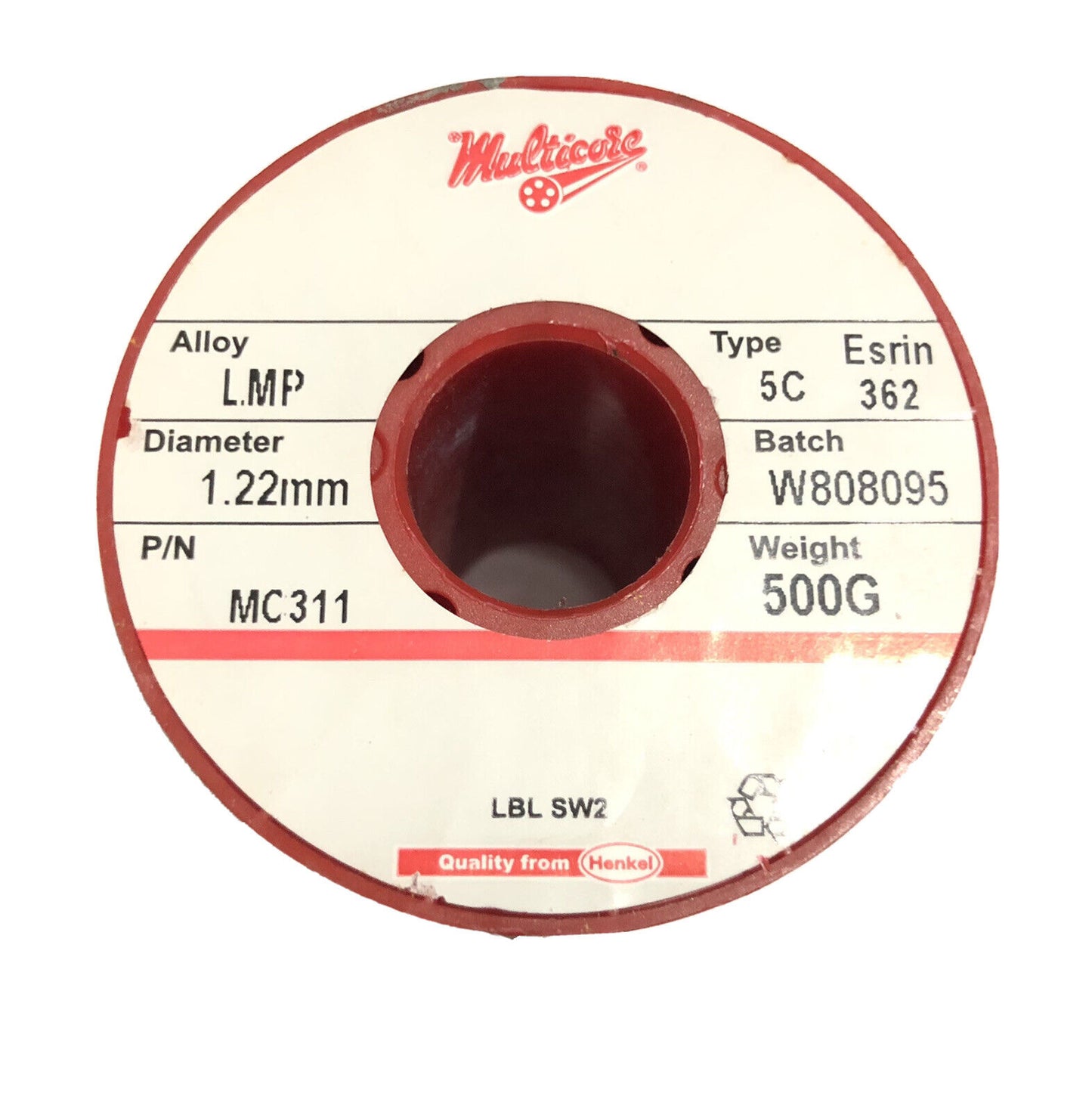

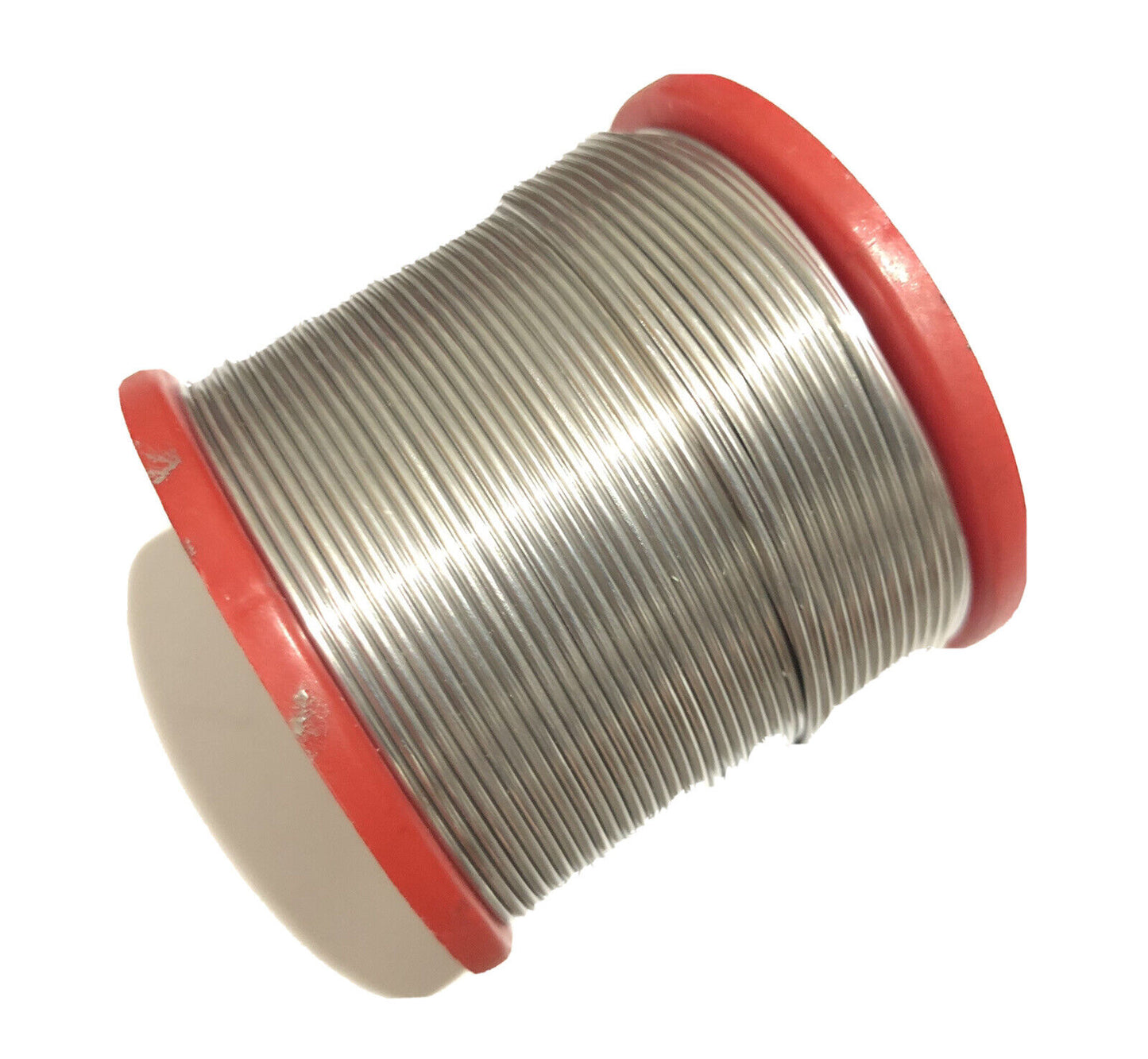

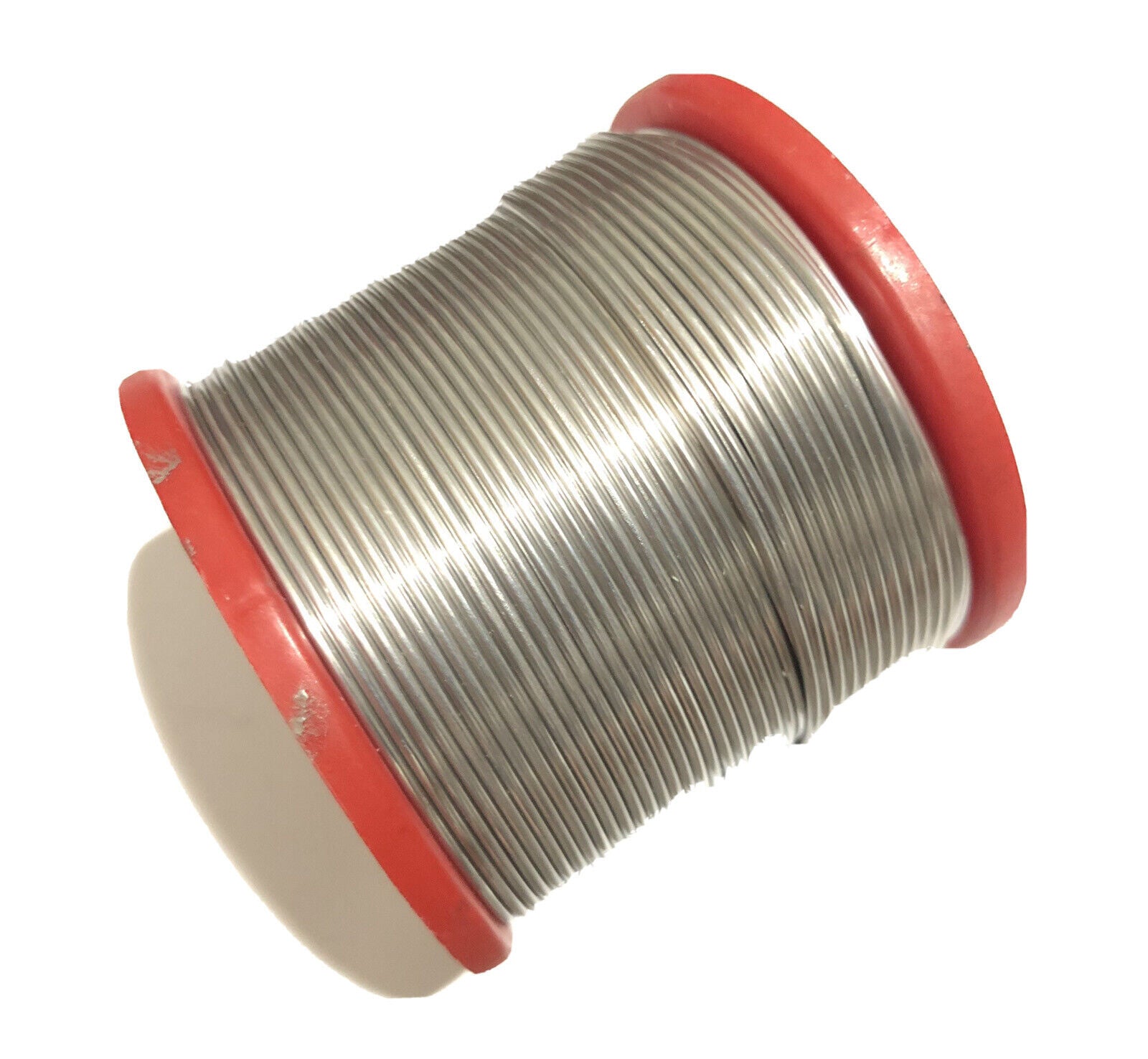

Multicore LMP (Low Melt Point) Solder 1.22mm 5C Esrin 362 Flux 0.5kg Roll MC311

Brand: Multicore

Warranty: 12 Months

Manufacturer Part Number: MC-311

Model: Multicore LMP 362 5C 500 Grams

Each quantity contains: 1 item

Multicore LMP (Low Melt Point) Solder 1.22mm 5C Esrin 362 Flux 0.5kg Roll MC311. Condition is "Brand New". Sent with Australia Post Standard Parcel.

Multicore LMP 362 5C Overview

Low Melting Point (LMP)

These fluxes contain, dissolved in the rosin, a small proportion of complex substances activators. The properties of the substances have been carefully chosen so that, on raising the flux to the soldering temperature, a small controlled quantity of a special reagent is liberated. This dissolves away the metal oxides and so promotes the flow of molten solder over the clean metal surface. Most of the reagent is either destroyed by combination with the metal oxide, or by the soldering heat. Any small quantity remaining in the flux is rendered innocuous by a re-combing with the activator, and so the flux residue is, like pure rosin, non-corrosive, hard, non-sticky and impervious to moisture.

Multicore LMP 362 5C Features

Multicores of activated, non-corrosive "362" rosin based flux

Minimal amber coloured (rosin) residues do not require cleaning

62% Tin (Sn), 36% Lead (Pb), 2% Silver (Ag) Alloy

Silver loaded alloy to minimise silver leaching from component terminations

179°C melting temperature (tip temperature approximately 320°C
