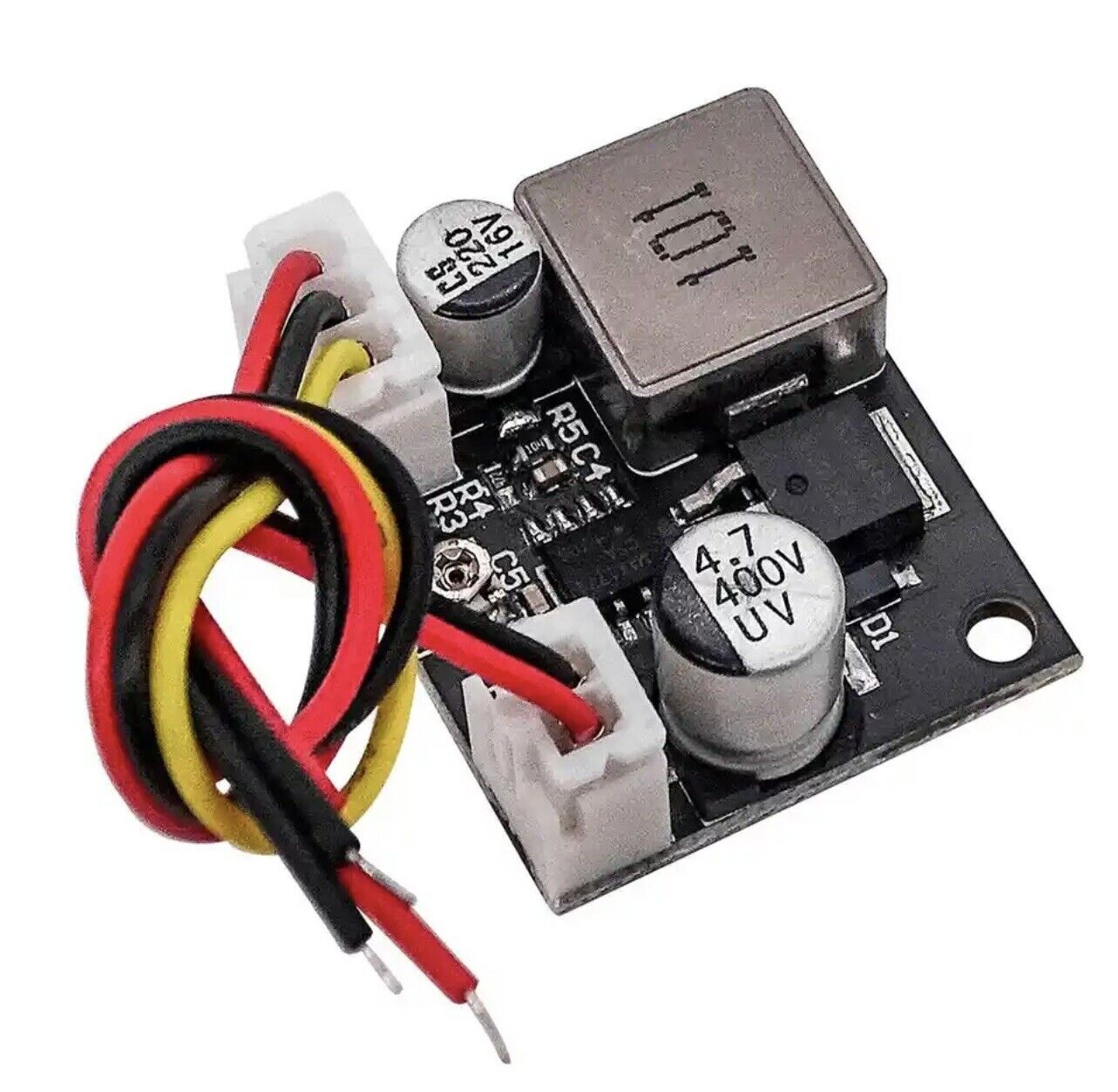

Nixie Tube Power Supply Boost Module 12V to 150-220V MAX1771 for IN12 IN14 QS30

Nominal Voltage Rating (DC): 12 V

Mounting Style: Stand Alone

Nominal Voltage Rating (AC): 220 V

Nominal Current Rating: 6.5-25mA

Custom Bundle: No

MPN: Does Not Apply

Minimum Operating Temperature: -20 °C

Brand: Unbranded

Output Voltage Rating (AC): 12 V

Type: Dc Boost Converter

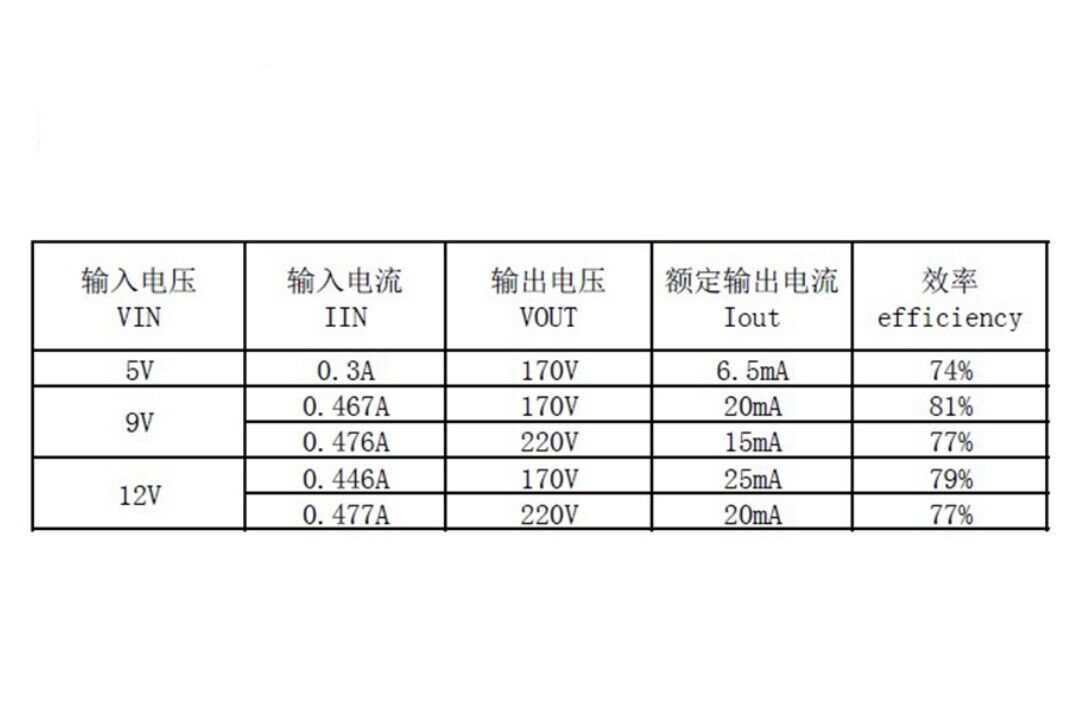

Efficiency: 74-81%

Output Voltage Rating (DC): 220 VDC

Maximum Operating Temperature: 55 °C

Country/Region of Manufacture: China

Construction Type: Open Frame

Output Voltage: 12 V

UPC: Does not apply

Nixie Tube Power Supply Boost Module 12V to 150-220V MAX1771 for IN12 IN14 QS30. Item is Brand New sent with Australia Post regular Letter no tracking number included.

Description

Nixie Tube Power Supply High Voltage Boost Module 12V to 150-220V MAX1771 for SZ3-1 QS30-1 IN-14

Features:

- 12V power supply

- MAX1771 program

- Stably boosts its volatge

- Easy to drive multiple glow tubes

- Less Heat: No heat sink is needed

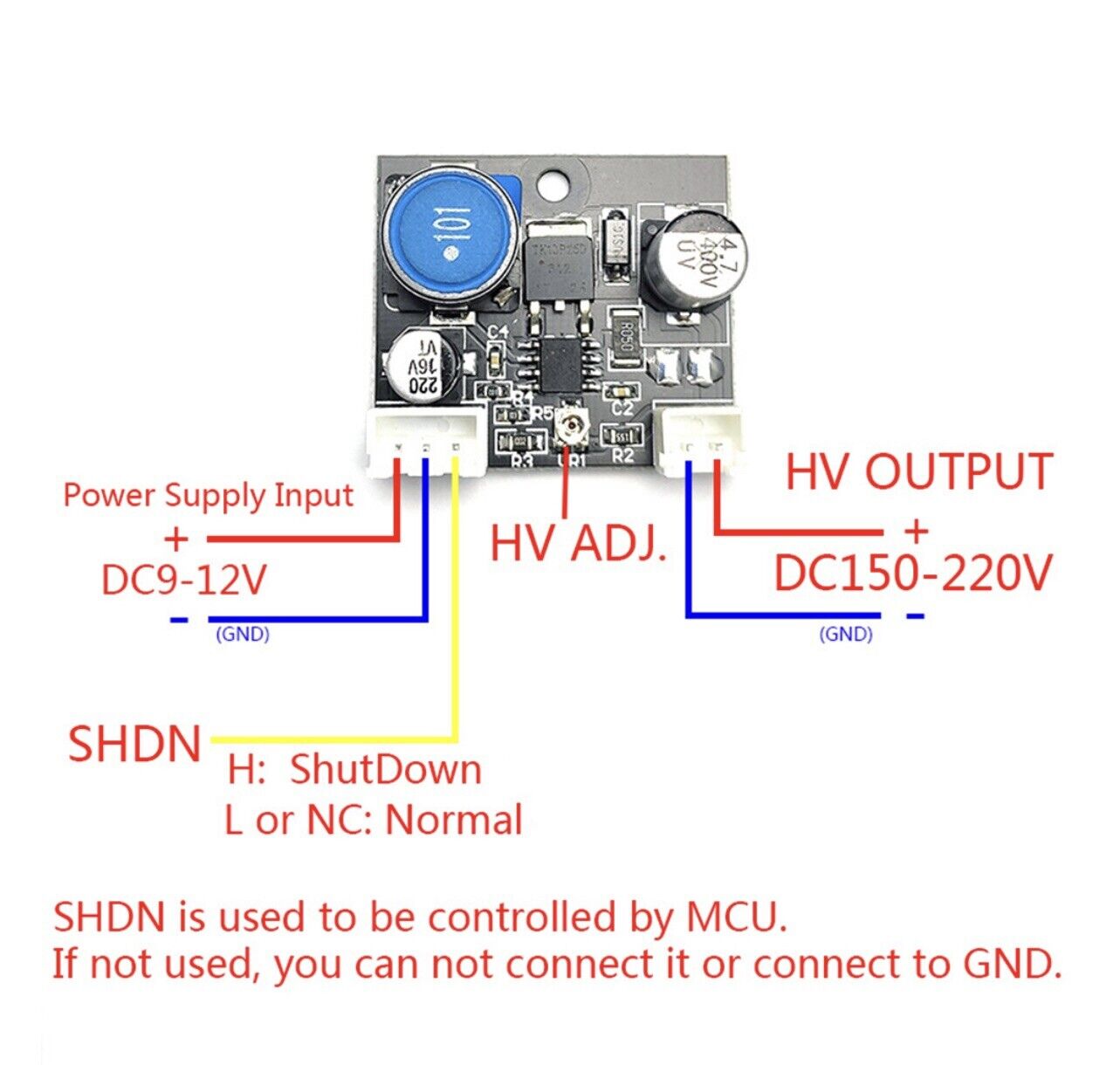

- Turn-off Function: Through MCU, its SHDN pins will be pulled high to turn it off

- Adjsutable Output Voltage: 150V-220V

- Compact Size: 3.9 x 2.9 x 1.2cm (L*W*H)

Package Included:

- 1 x High Voltage Boost Power Module

The boost module adopts max1771 scheme, with stable boost, easy drive of multiple glow tubes, low heating, small volume and shutdown function. The SHDN pin can be pulled up through MCU to close the boost module. The output voltage is adjustable from 150v-220v.
