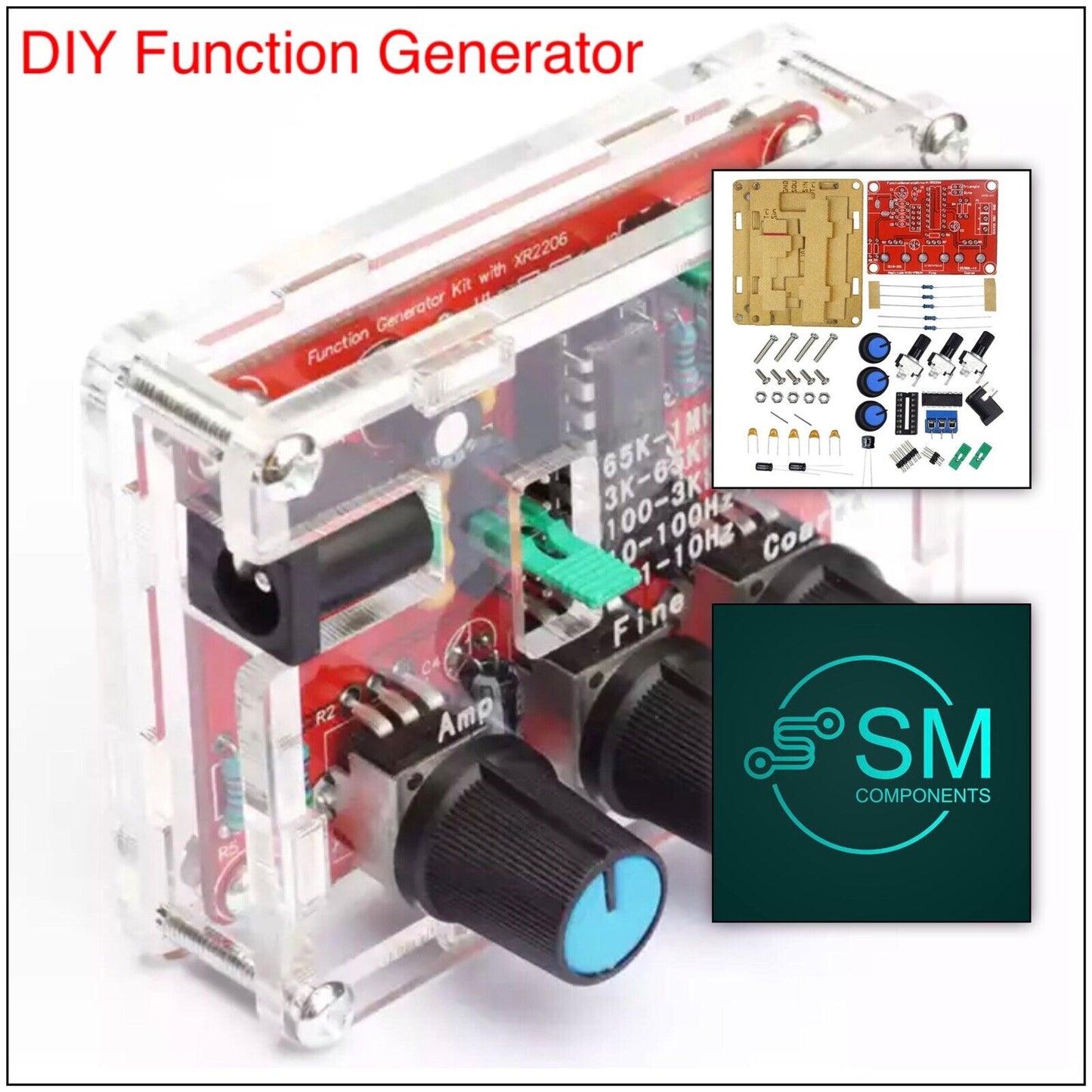

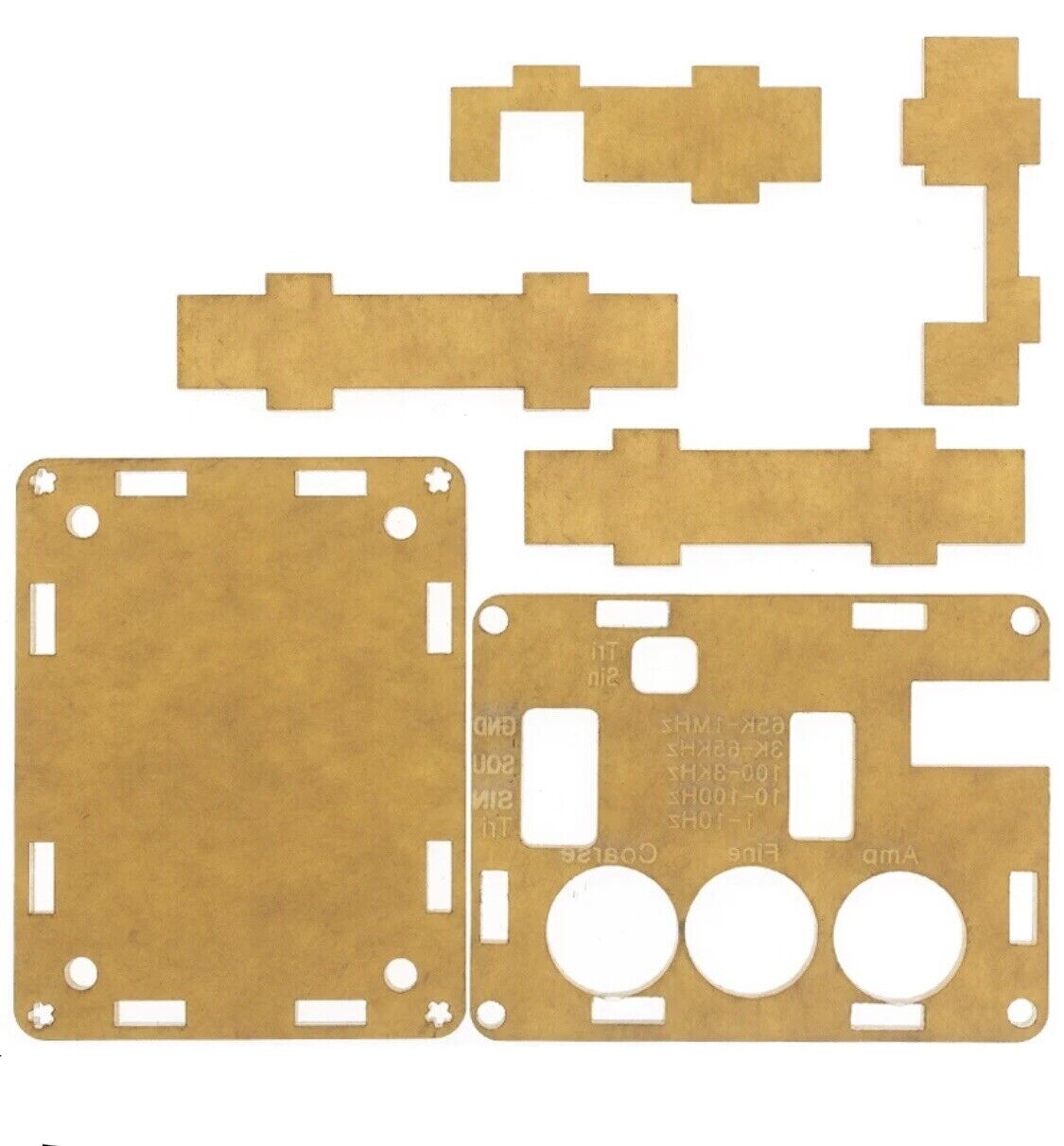

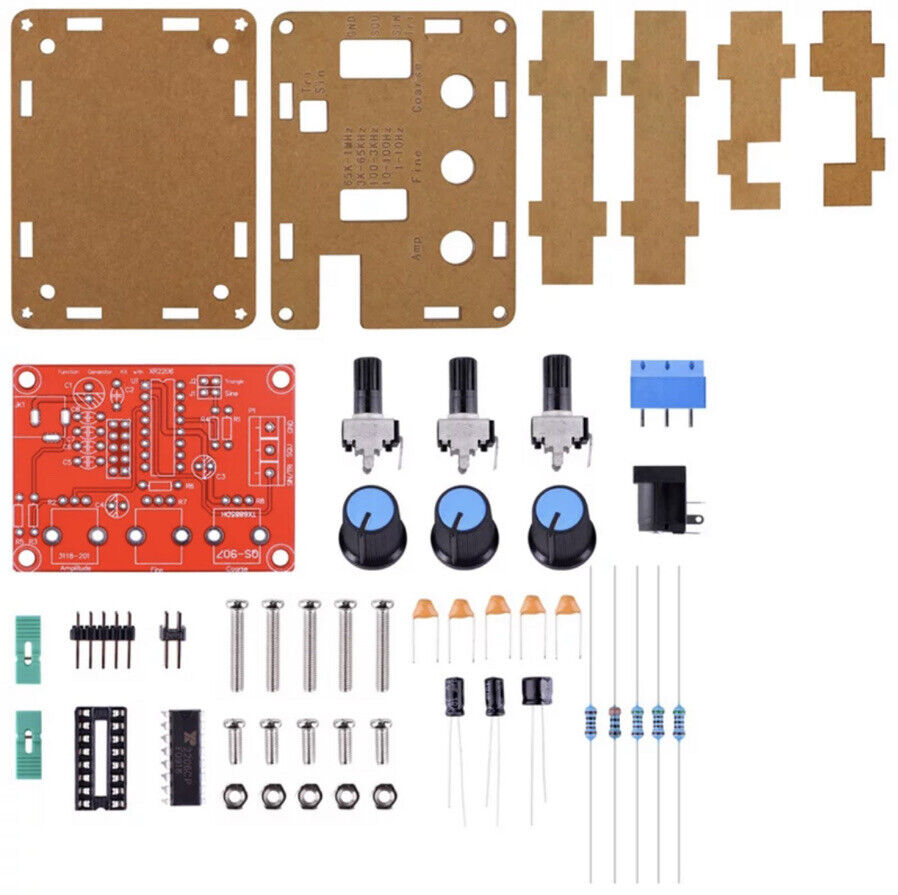

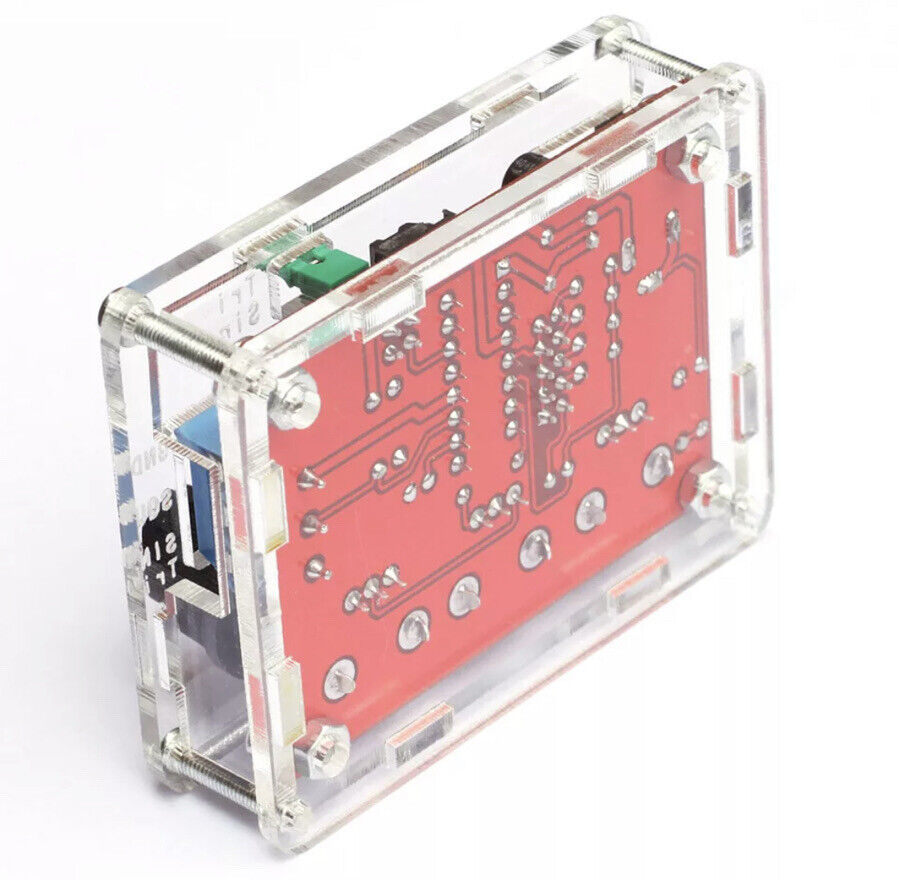

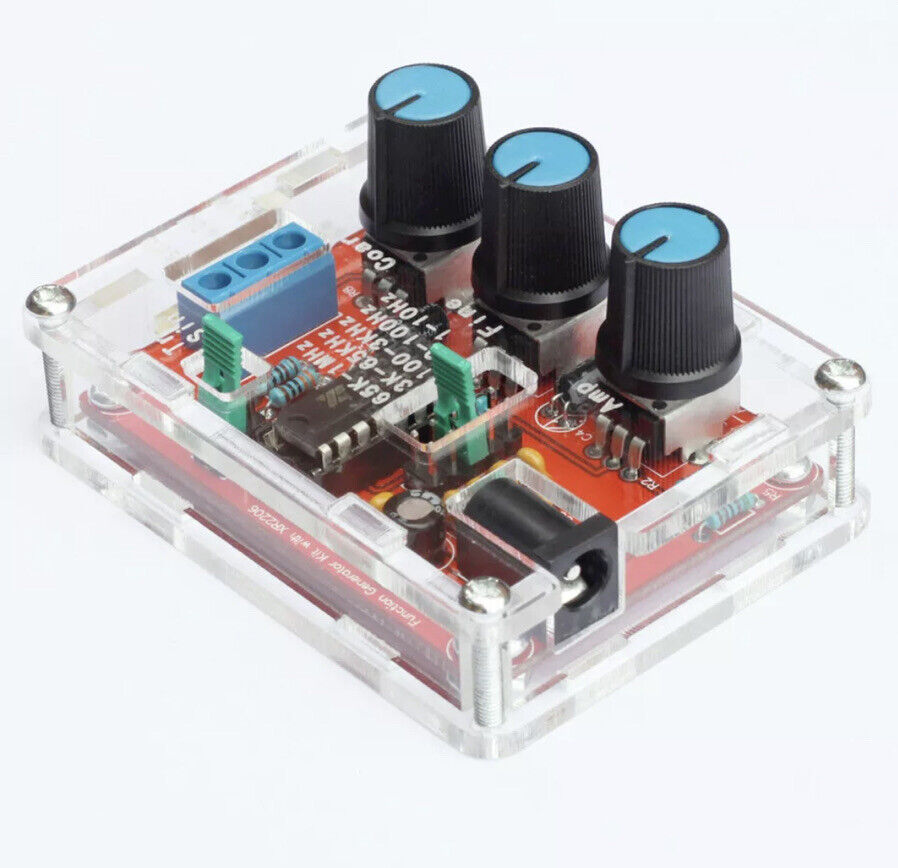

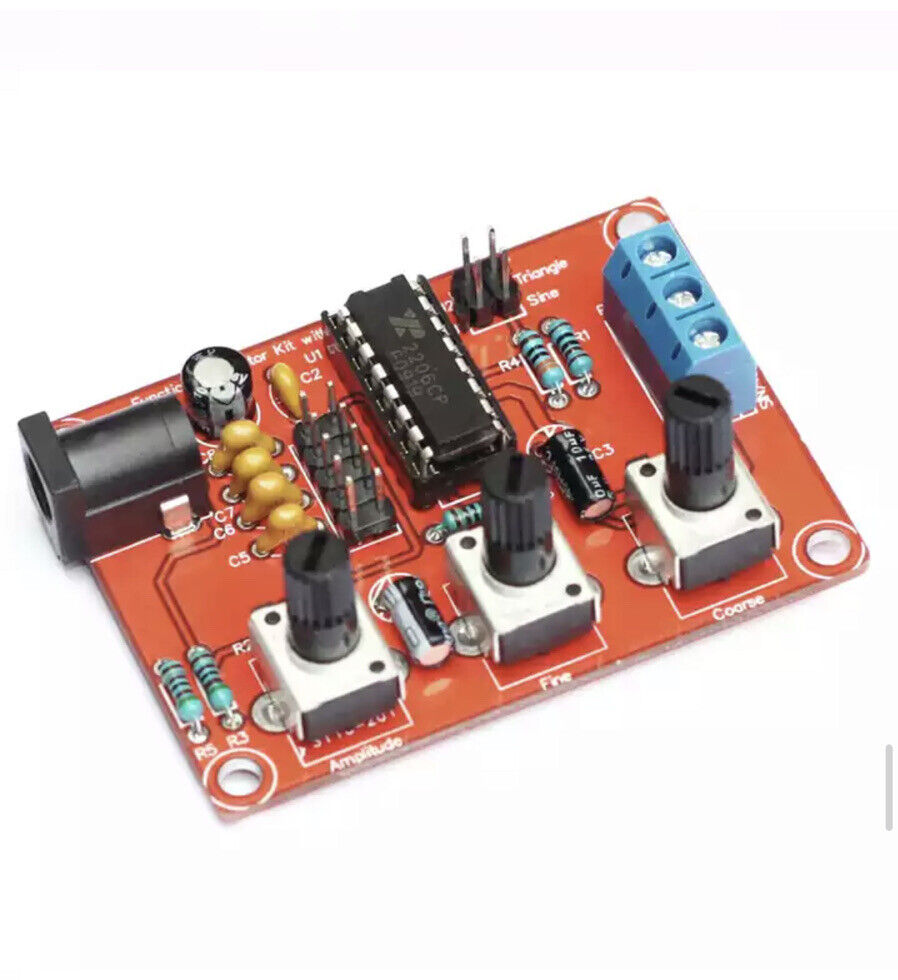

Precision Function Signal Generator DIY Kit 1Hz-1MHz Adjustable Frequency + Case

Brand: Aokin

Signal Generator Type: Function Generator

Frequency Range: 1Hz - 1MHz

Voltage Supply: 9-12V DC Input

Waveforms: Square,Sine & Triangle

Model: XR-2206

Frequency: 1Hz-1MHz

MPN: Does Not Apply

Impedance: 600 Ohm + 10%

Precision Function Signal Generator DIY Kit 1Hz-1MHz Adjustable Frequency + Case.

Sent with Australia Post regular Letter no tracking number included.

Specifications:

Voltage Supply: 9-12V DC Input

Waveforms: Square, Sine & Triangle

Impedance: 600 Ohm + 10%

Frequency: 1Hz-1MHz

screwdriver length: 100MM

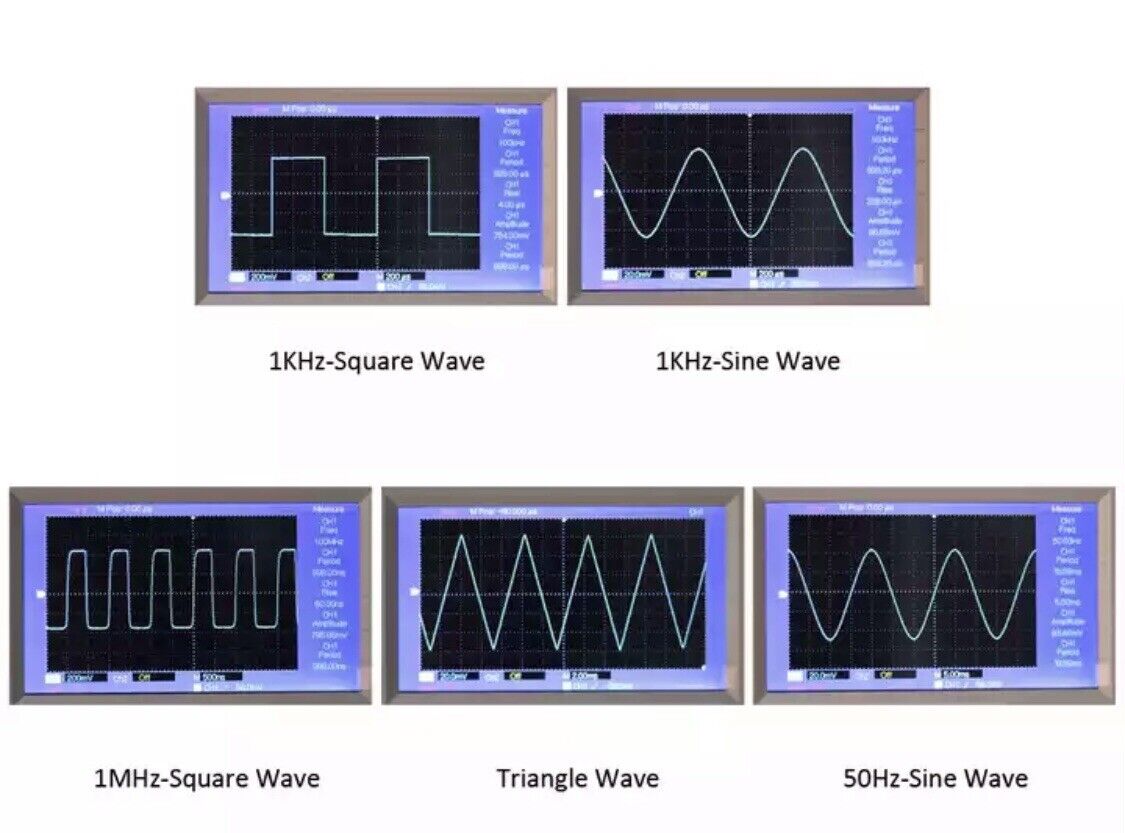

SINE WAVE

Amplitude: 0-3V at 9V DC Input

Distortion: Less than 1% (at 1KHz)

Flatness: +0.05dB 1Hz - 100kHz

SQUARE WAVE

Amplitude: 8V (no load) at 9V DC Input

Rise Time: Less than 50ns (at 1KHz)

Fall Time: Less than 30ns (at 1KHz)

Symmetry: Less than 5% (at 1KHz)

TRIANGLE WAVE

Amplitude: 0-3V at 9V DC Input

Linearity: Less than 1% (up to 100KHz) 10mA
