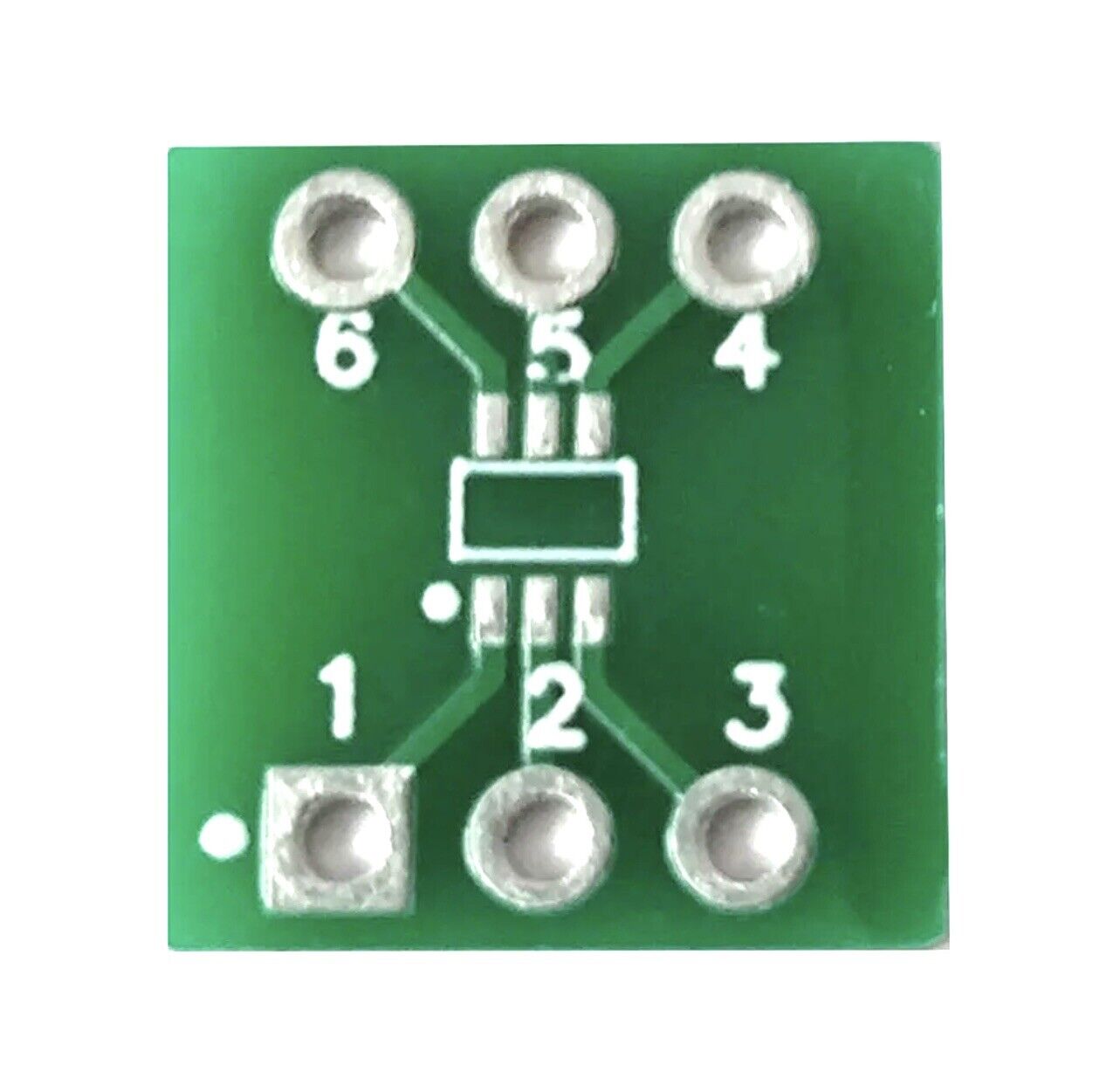

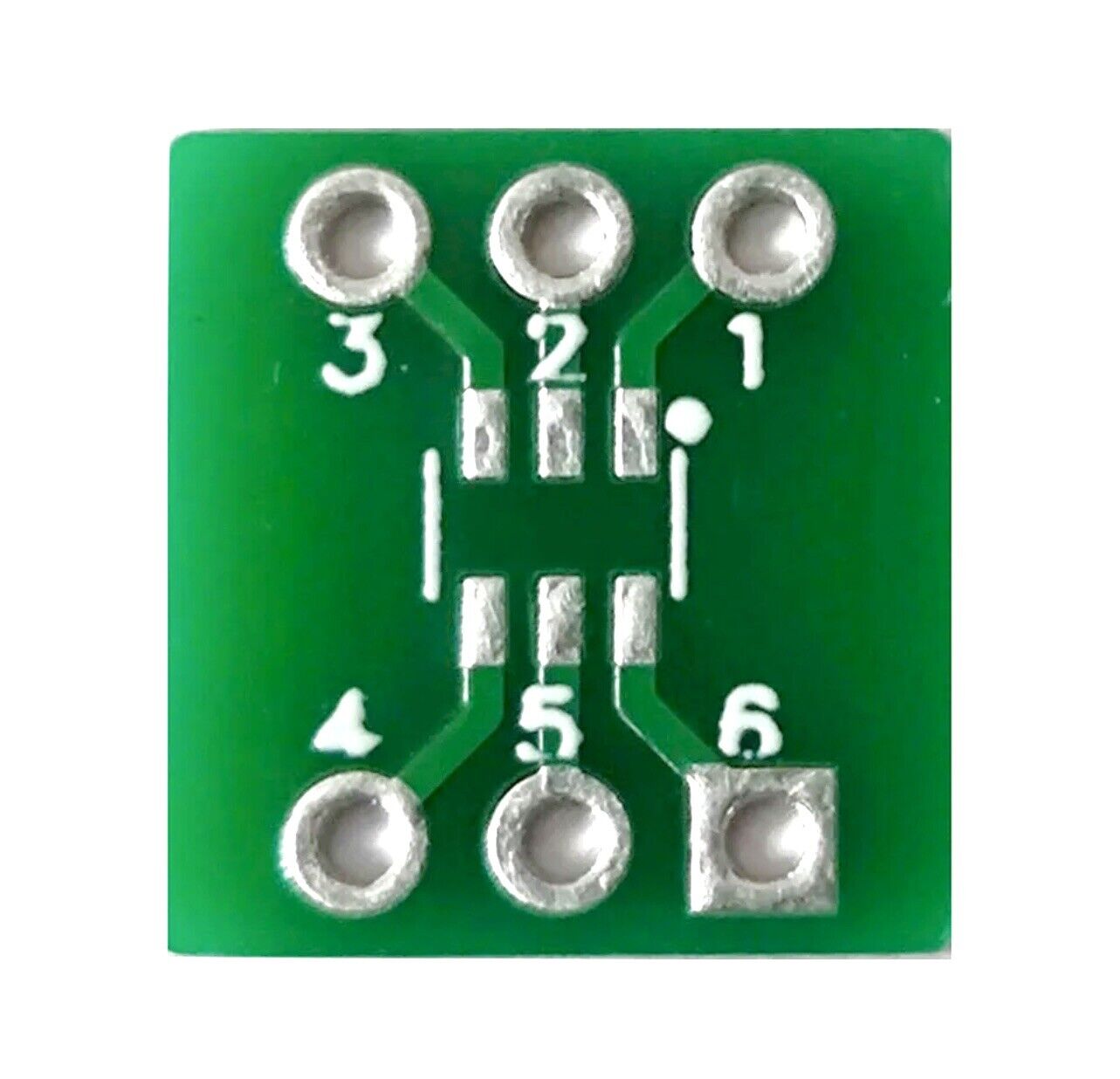

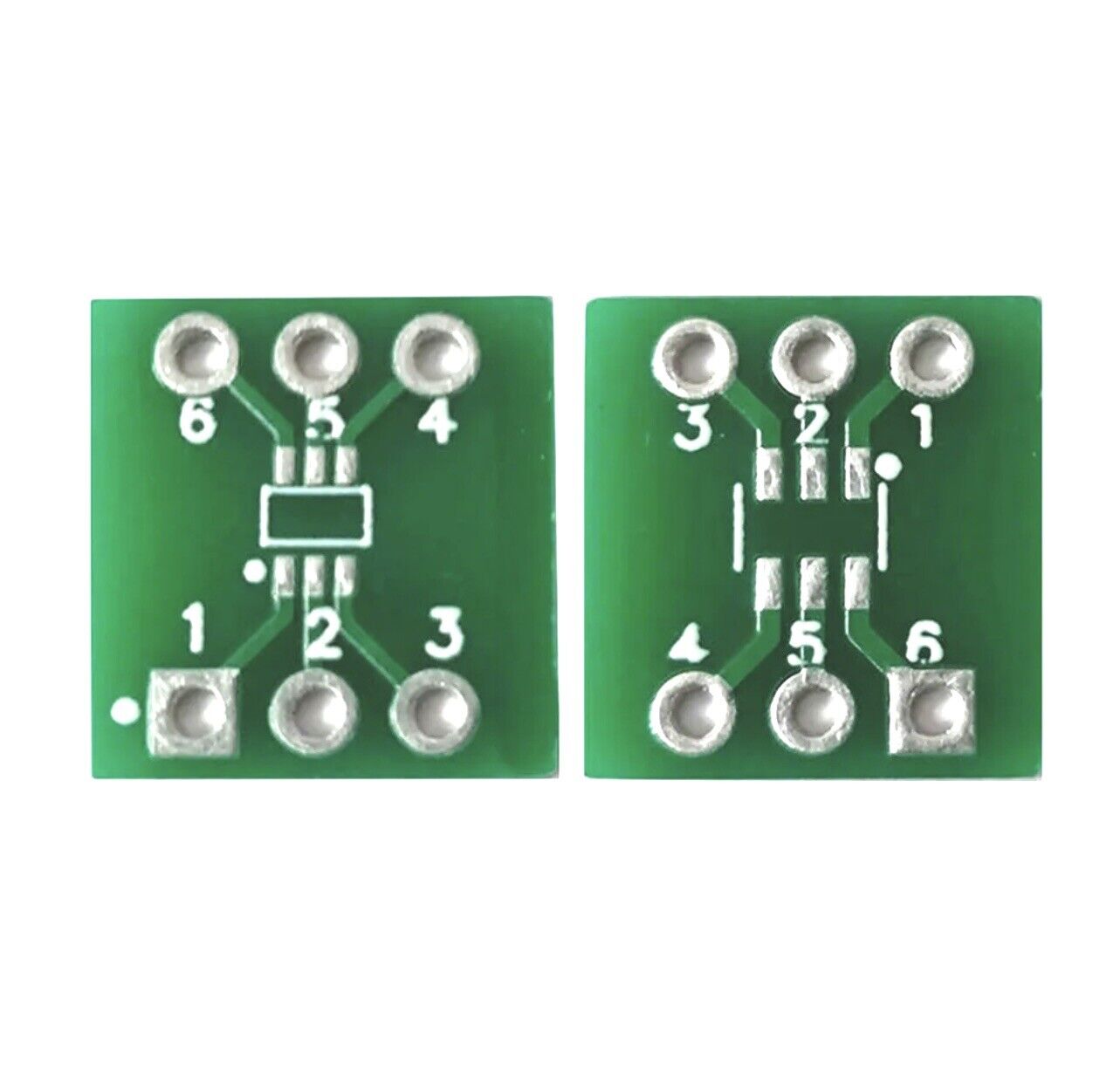

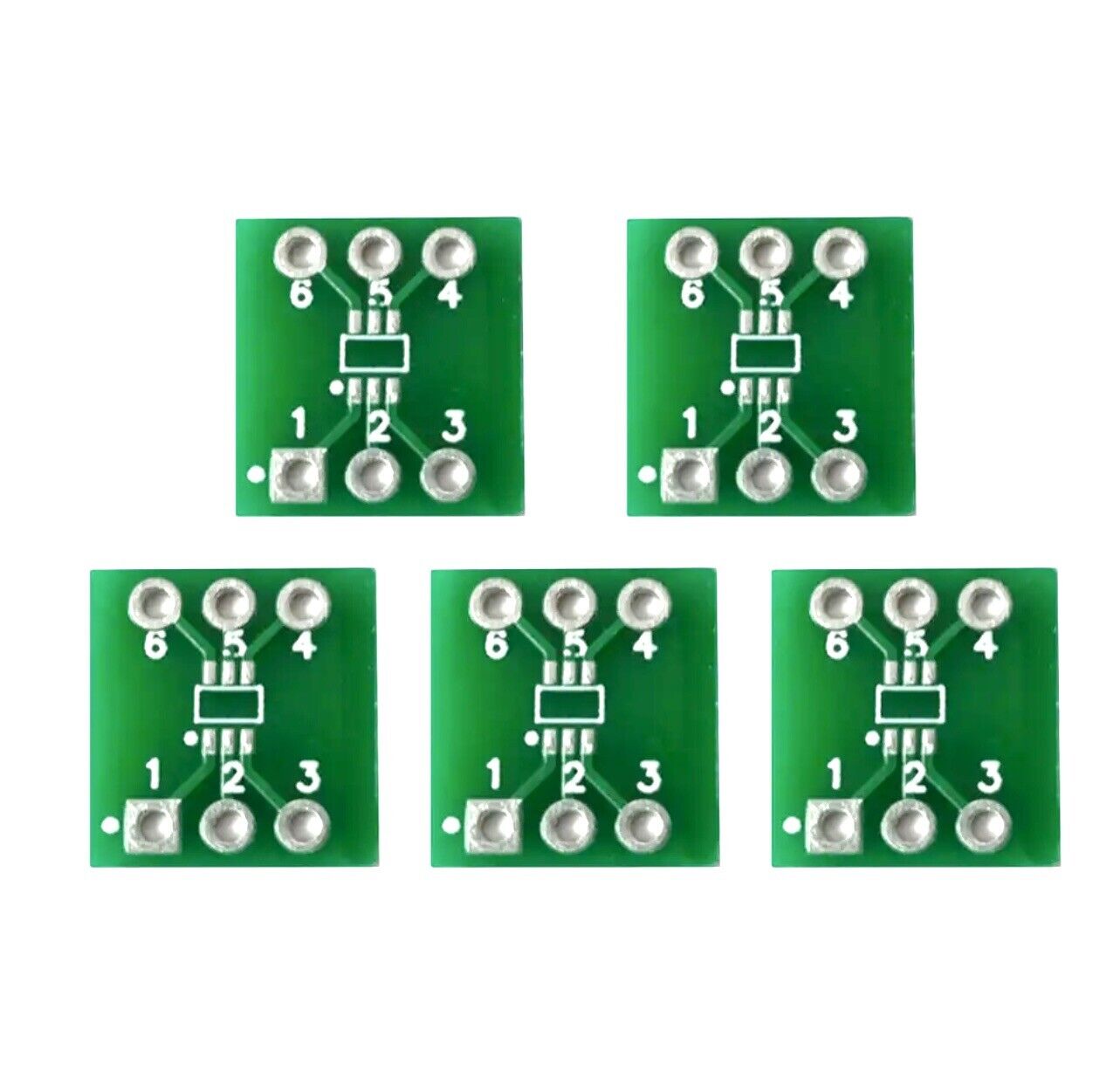

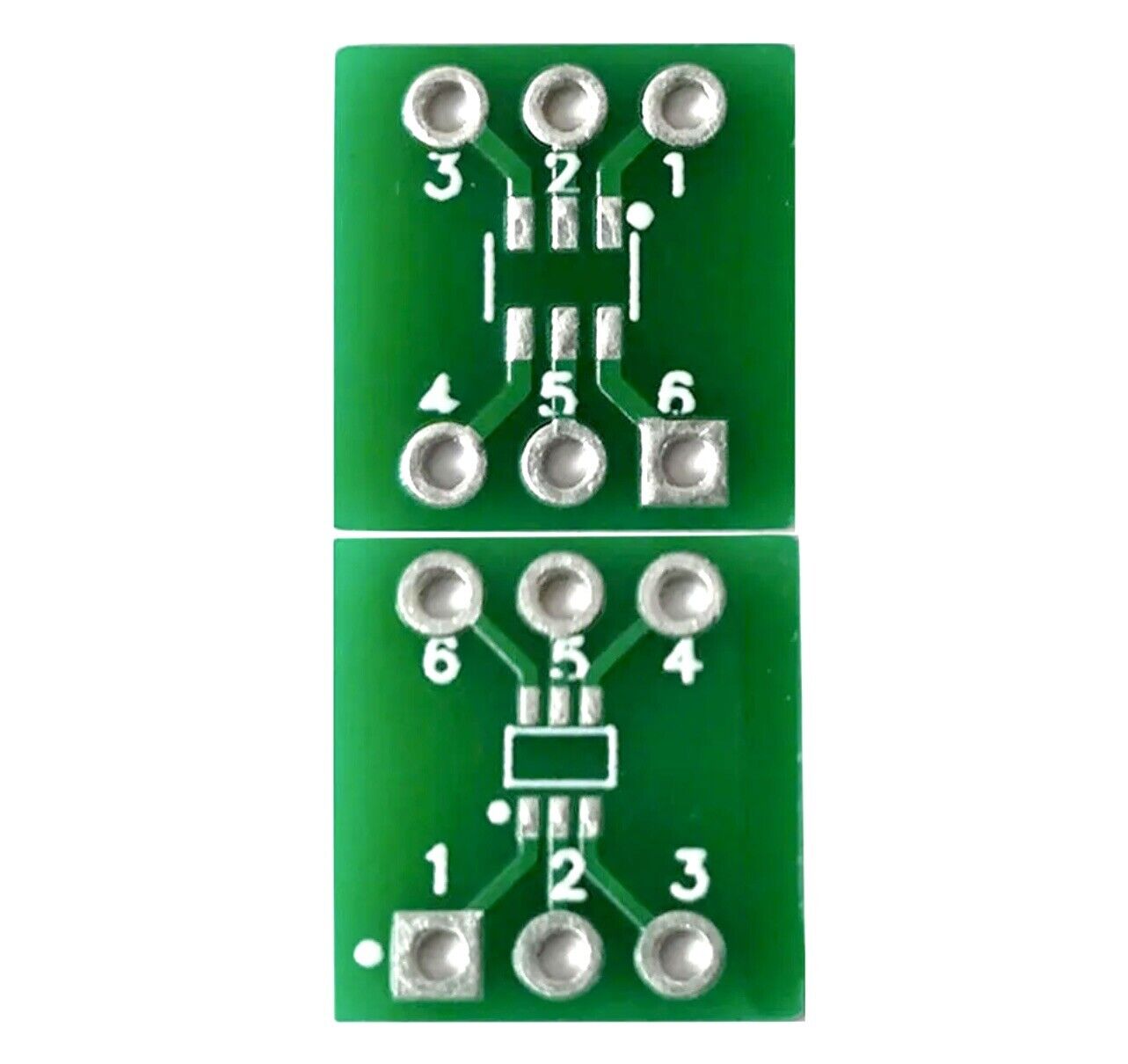

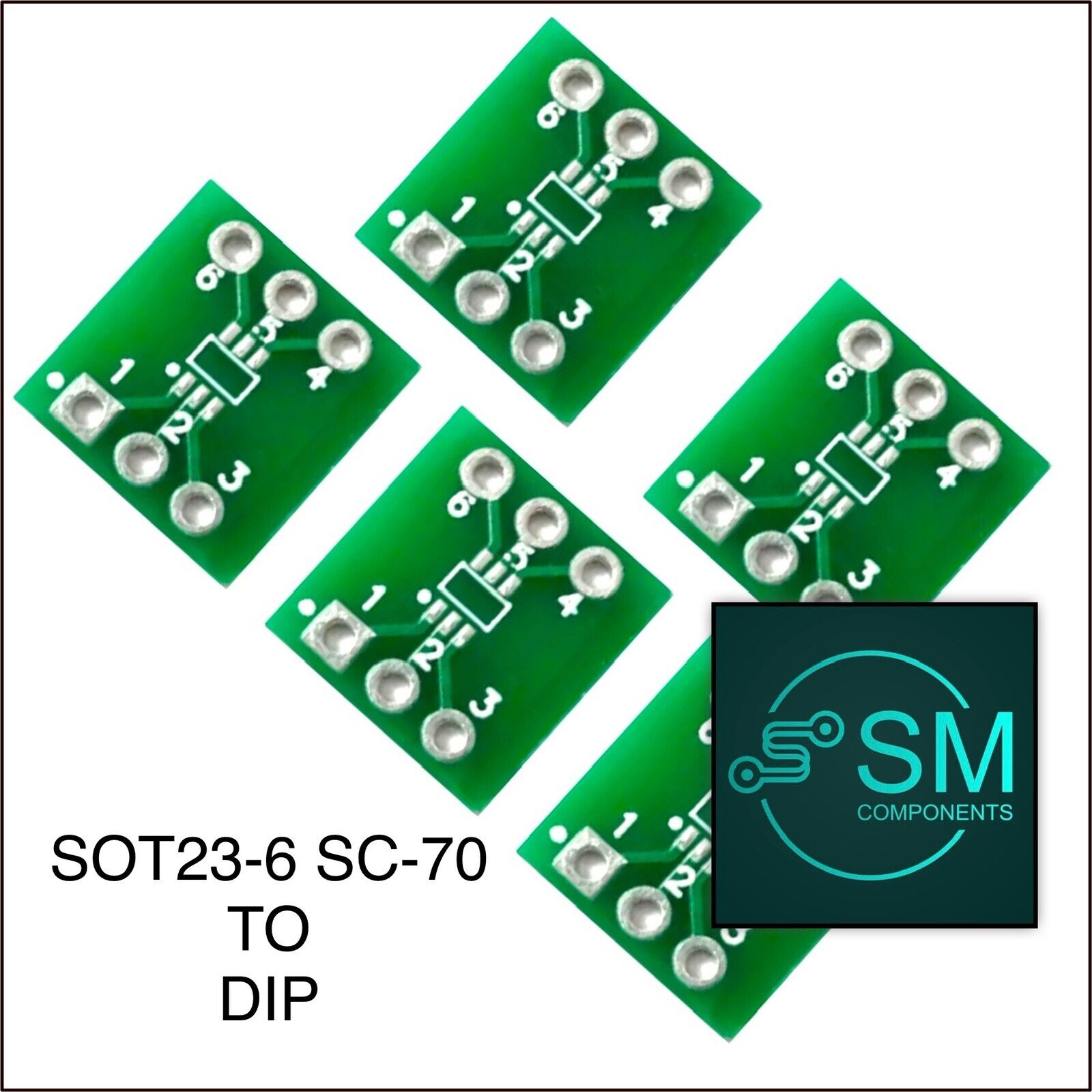

Prototyping Adapter SOT23-6 TO DIP SC-70 TO DIP Converter PCB 5PCS FR4 DIY

Brand: JLCPCB

Mounting Style: SMD-DIP

PCB Type: Double-Sided PCB

Number of Tie-Points: 6

Operating Voltage: 50V

Material: FR-4

Country/Region of Manufacture: China

UPC: Does not apply

Prototyping Adapter SOT23-6 TO DIP SC-70 TO DIP Converter PCB 5PCS FR4 DIY.

Sent with Australia Post regular Letter no tracking number included.

Product Overview

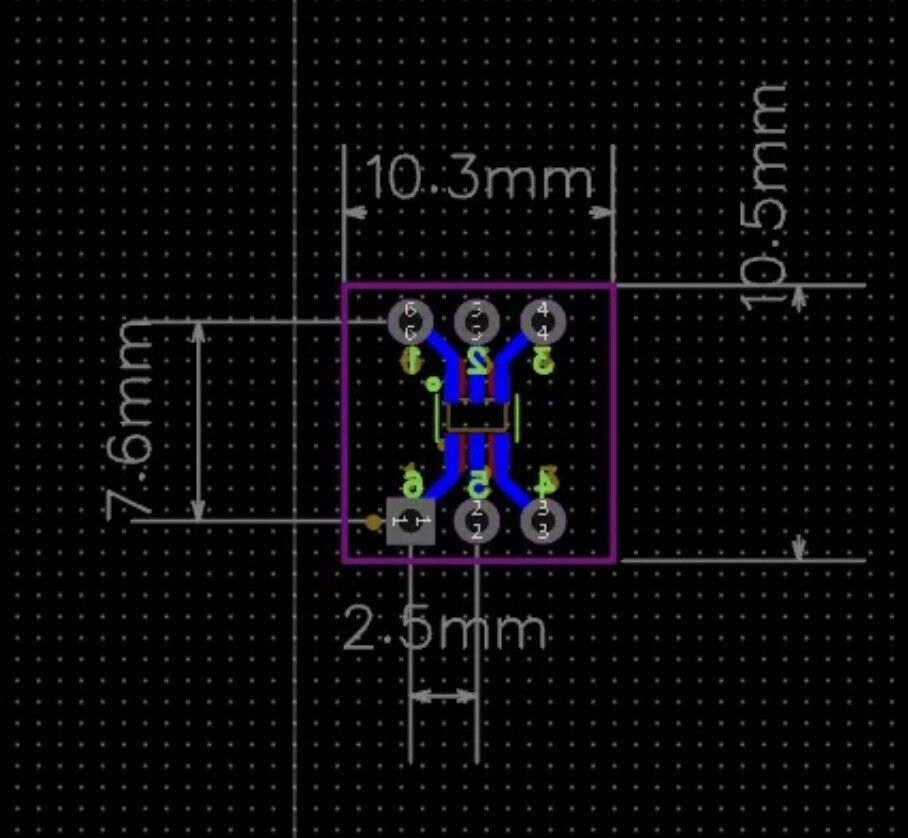

The LCQT-SOT23-6, SC-70 is a 7.62 x 10.16mm SOT23 to 6-DIP quick turn small outline Prototyping Adaptor which mates with SOT23 package to standard breadboard and breakout board for rapid and easy prototyping. This prototyping adaptor is made of 1.58mm FR-4, approved by UL 94V-0 standard with 1/2oz Cu traces board. The pins are made of brass 360 1/2-hard as per UNS C36000 ASTM-B16-00 standard with Au flash finish and the pin is insulated with polyester as per UL 94V-0 standard.

Au Flash pin plating

-55 to +125°C Operating temperature range
