SMD/SMT PCB Component Soldering Practice Board Plate DIY Diode, Resistor, 2 Kits

Brand: Unbranded

Type: SMD Solder Practice PCB’s

Model: SMD/SMT

MPN: Does Not Apply

Unit Quantity: 2 Piece Kits

SMD/SMT PCB Component Soldering Practice Board Plate DIY Diode,Resistor.

Listing is Brand New sent with Australia Post Regular Letter no tracking number.

SMT/SMD DIY Components Soldering Practice Board Plate DIY Kit Diode Resistor Capacitors Transistors

Features:

DIY simple SMD soldering skills training kit specially designed for electronic beginner

PCB clearly print the numbered components with proper circuit design, you can repeat the soldering and desoldering process, easy to check your soldering result

10 Different kinds components: Include the basic SMD components such as 1206, 0805, 0603 resistor, capacitor, LED diode and IC

THESE ARE PRACTICE PCB KITS ONLY. THEY ARE DESIGNED TO HONE YOUR SKILLS IN SMT. (Surface mount technology)

Specifications:

Material: FR-4 Tin Plated

Bill of Materials:

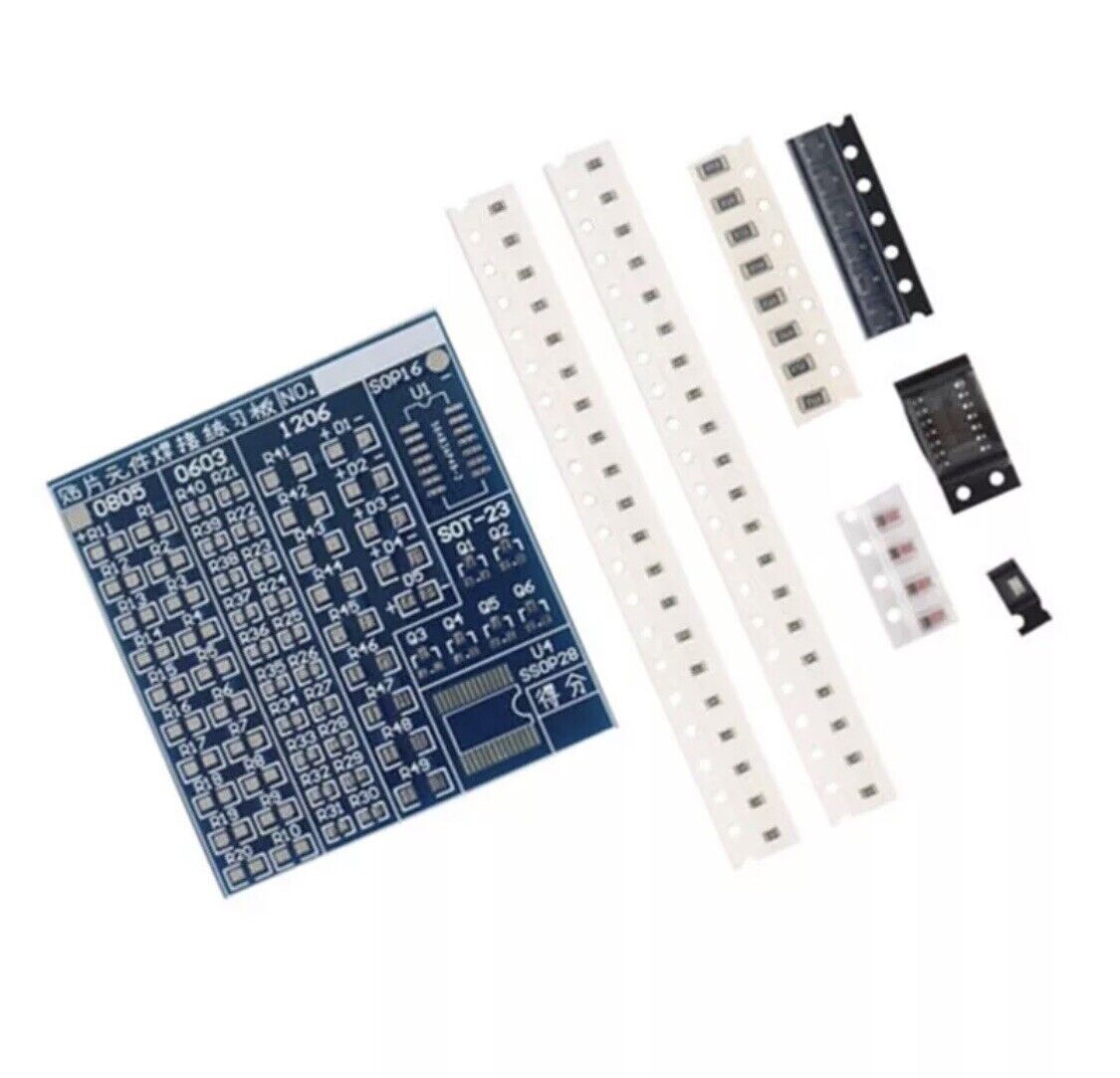

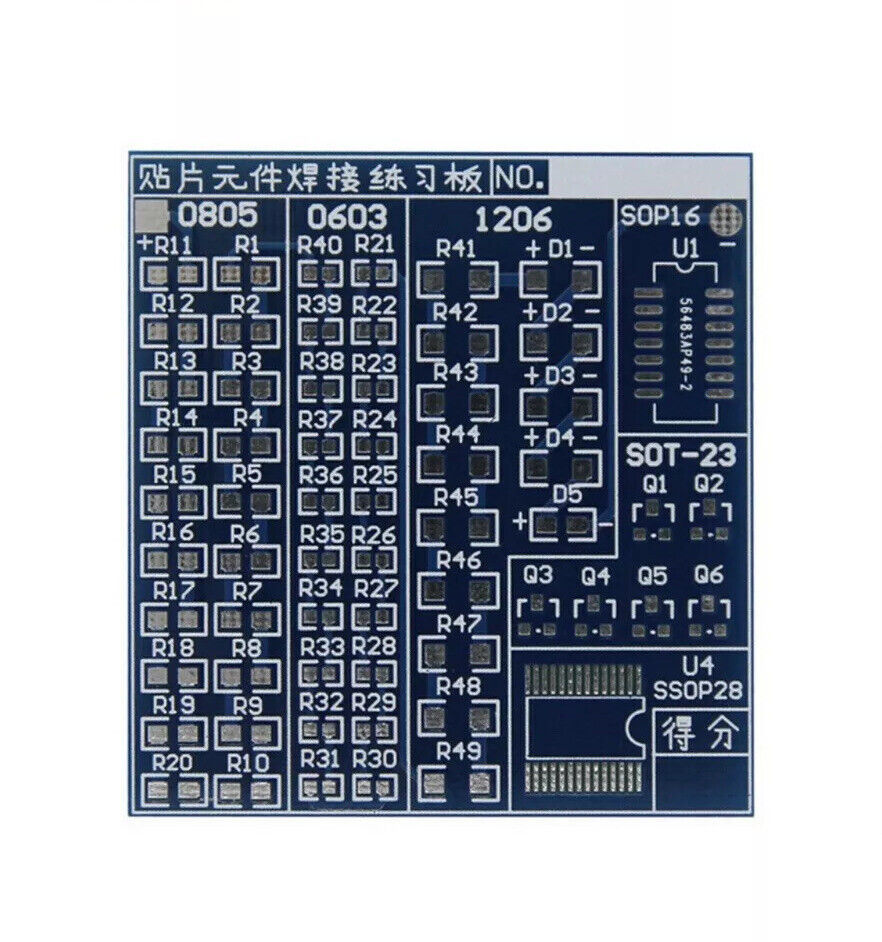

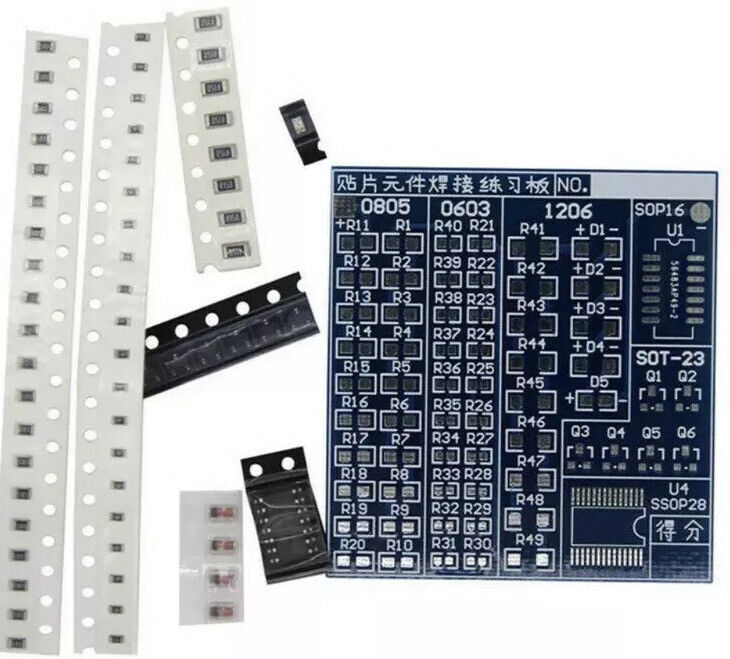

• Specifications: BLUE PCB

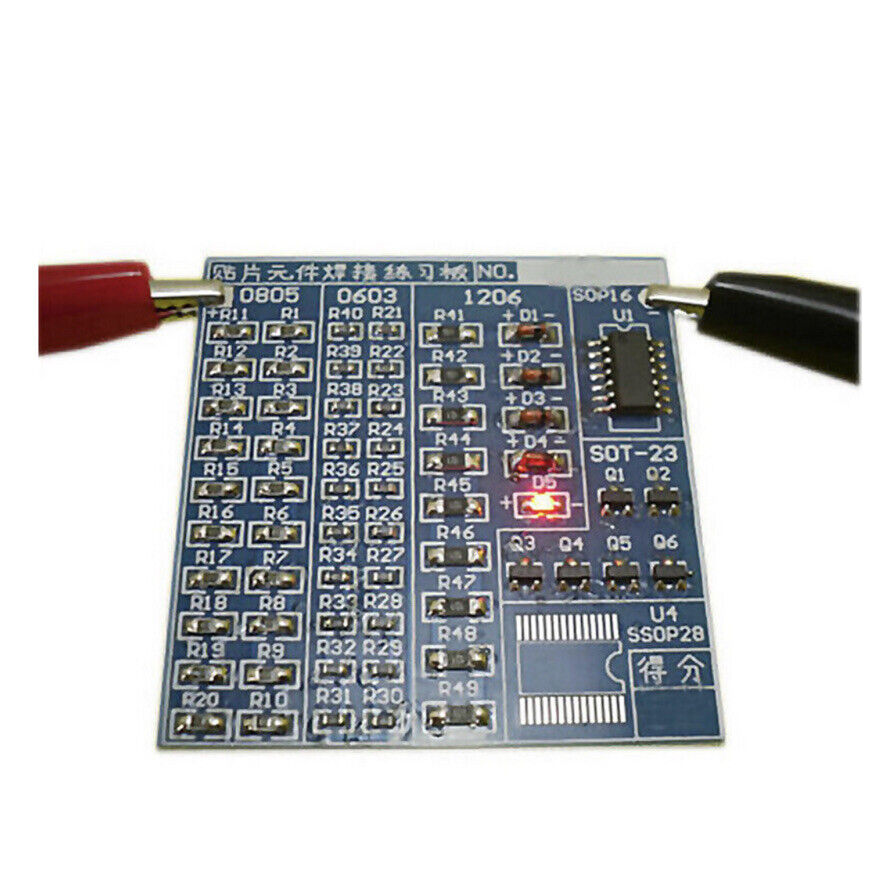

Power supply: 5V

Color: Blue

Size: 5cm x 4.8cm x 0.2cm

Package List:

20x 0805 resistor

20x 0603 resistor

4x 1206 diode

6x SOT-23 transistor

1x SOP14 IC

1x SOP16 IC

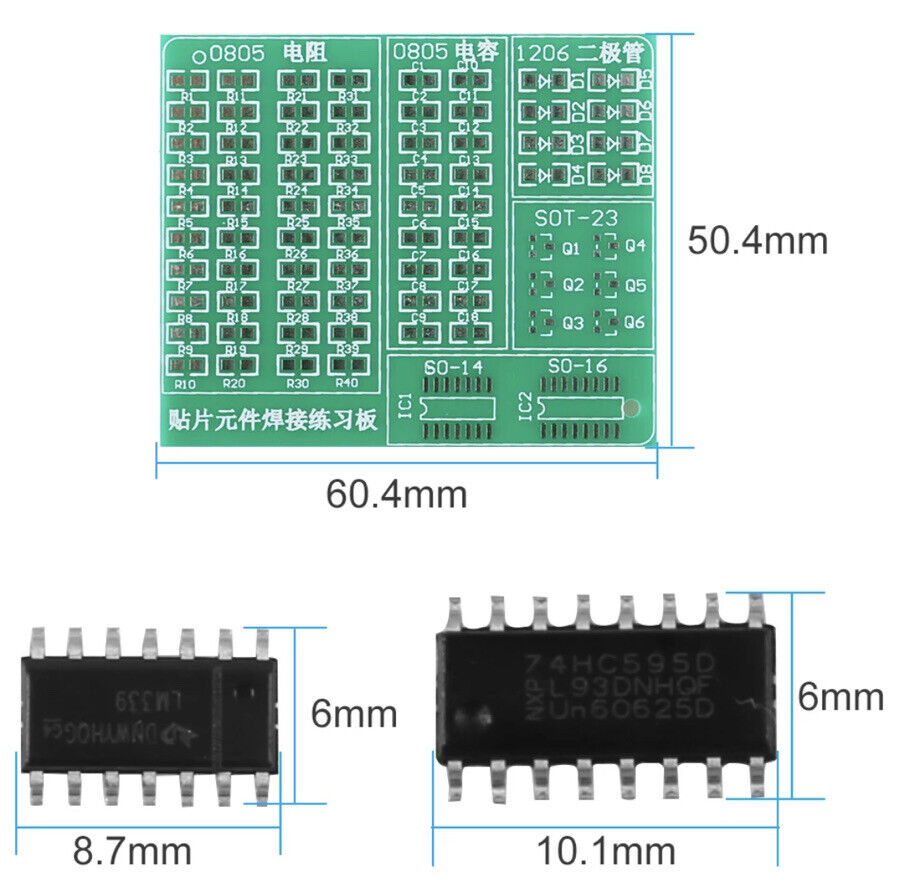

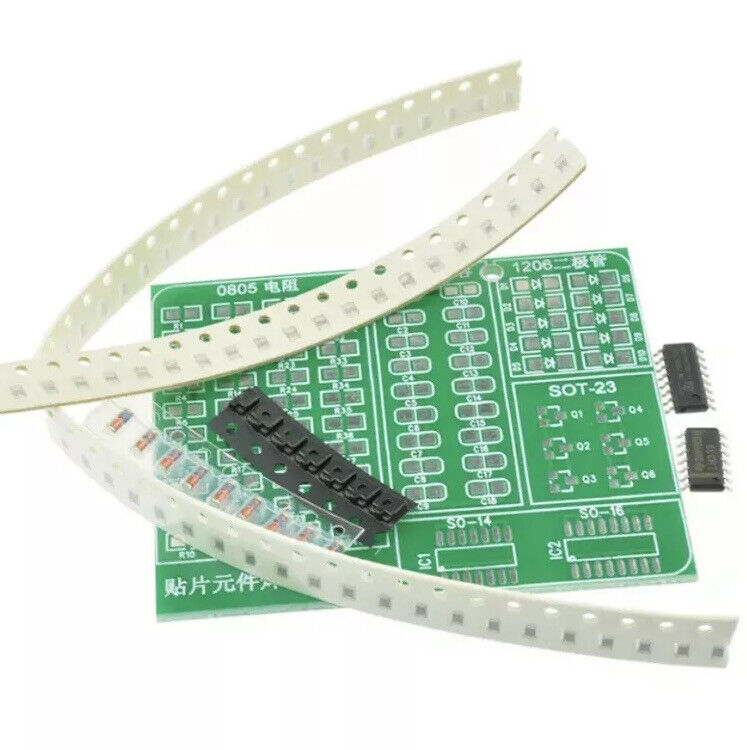

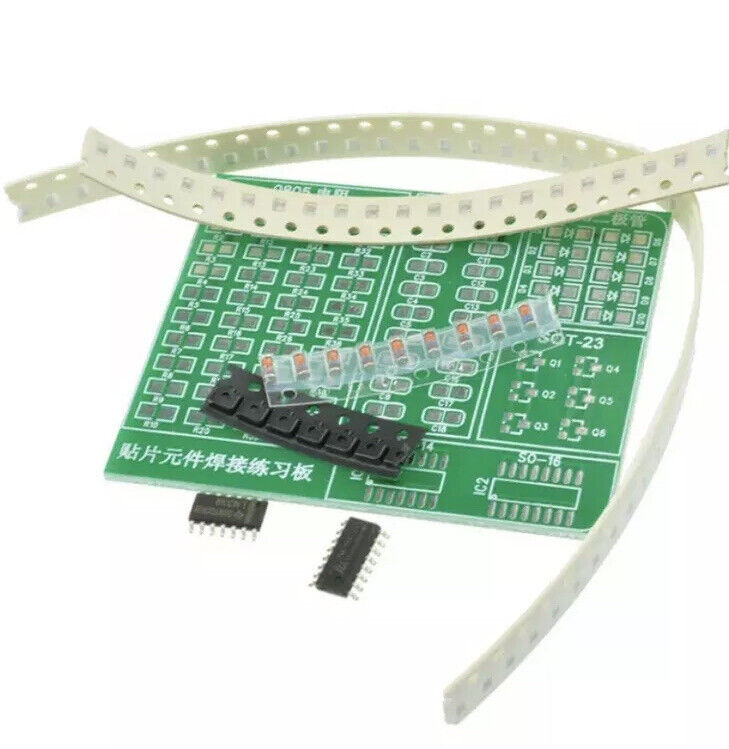

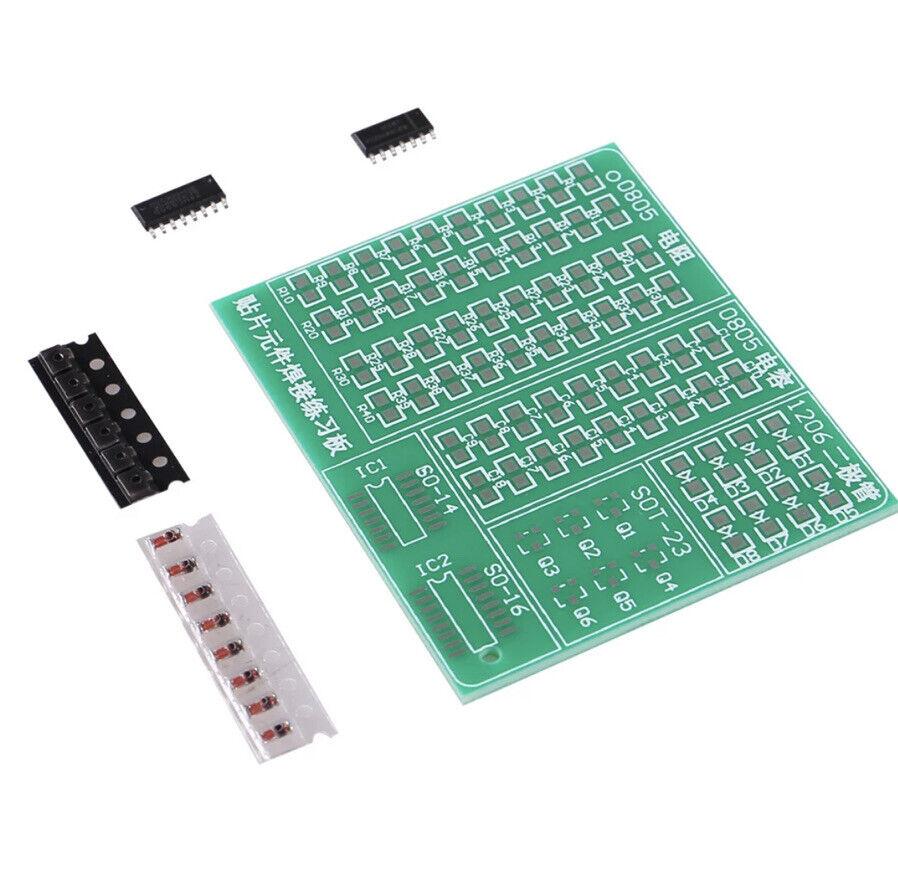

• GREEN PCB

40x 0805 resistors

18x 0805 capacitors

10x 1206 diodes

1x SO-14

1x SO-16

5x SOT-23 transistors

Package Contents:

2 SMD KITS
