SMD/SMT PCB Component Soldering Practice Board Plate DIY Diode Resistors 74LS192

Brand: Unbranded

Type: SMD Solder Practice PCB’s

Model: SMD/SMT

MPN: Does Not Apply

Unit Quantity: 1 SMD Kit

SMD/SMT PCB Component Soldering Practice Board Plate DIY Diode,Resistor.

Listing is Brand New sent with Australia Post Regular Letter no tracking number.

SMT/SMD DIY Components Soldering Practice Board Plate DIY Kit Diode Resistor Capacitors Transistors

Features:

DIY simple SMD soldering skills training kit specially designed for electronic beginner

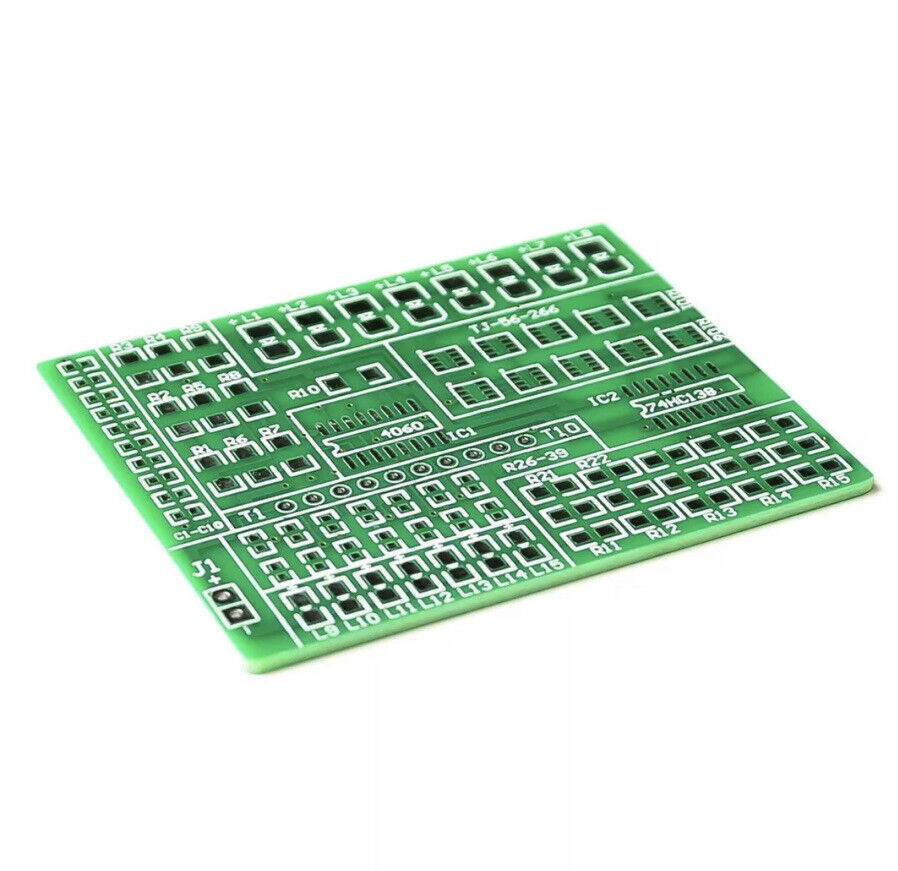

PCB clearly print the numbered components with proper circuit design, you can repeat the soldering and desoldering process, easy to check your soldering result

10 Different kinds components: Include the basic SMD components such as 1206, 0805, 0603 resistor, capacitor, LED diode and IC

THESE ARE PRACTICE PCB KITS ONLY. THEY ARE DESIGNED TO HONE YOUR SKILLS IN SMT. (Surface mount technology)

Specifications:

Material: FR-4 Tin Plated

Diy Subtraction Loop Counter Circuit Kit 74LS192 Parts with Simulation Electronic Suite DIY Digital timer circuit Suite

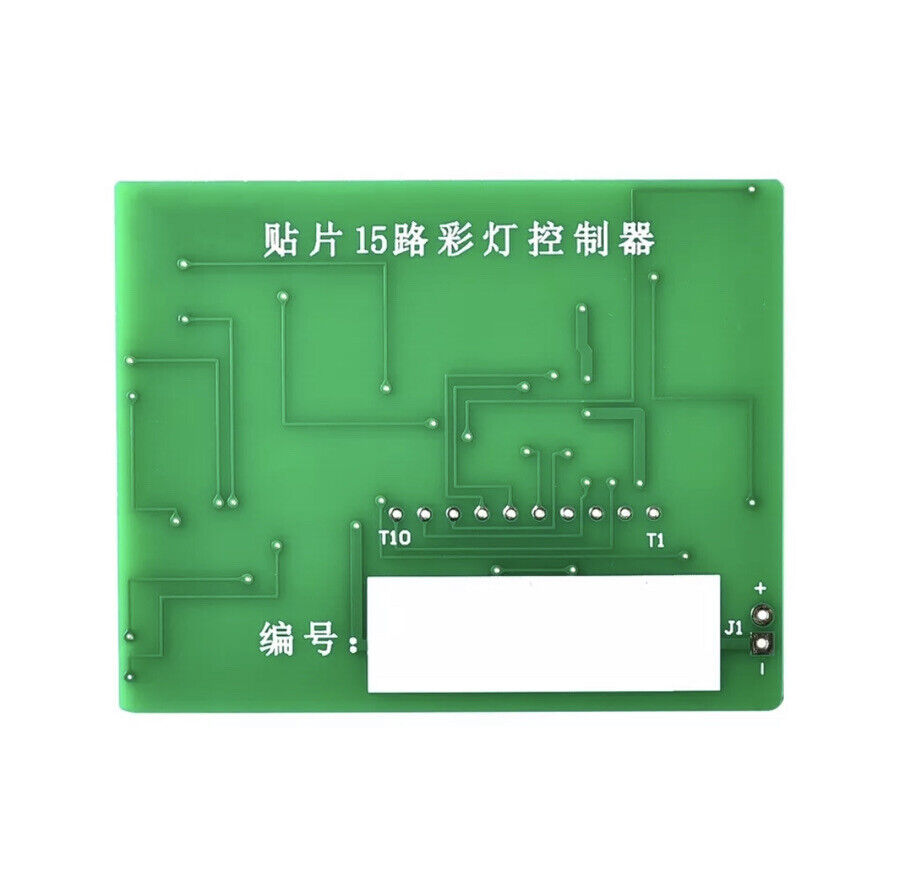

With the full patch design, the quality of soldering can be visualized through the luminous status of 15 LEDs. The circuit is novel, interesting, and has a complete range of components. The use of double-sided glass fiber spray tin plates is intended to improve the welding level and speed.

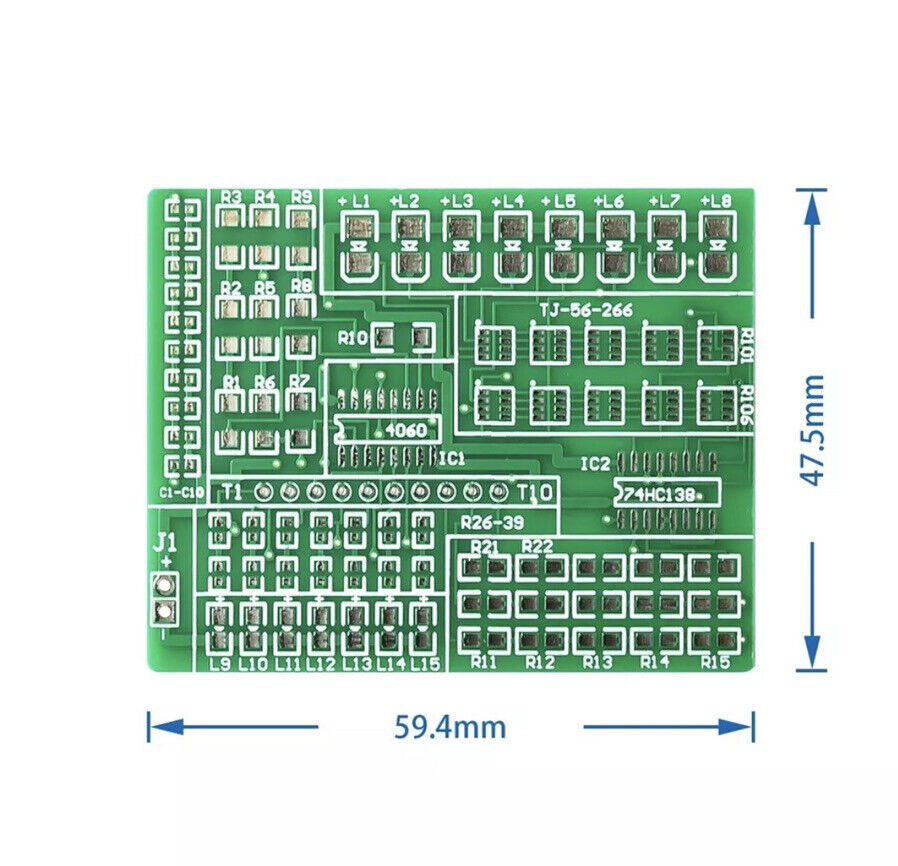

1, board size: 59*48MM

2, board thickness: 1.6mm

3, board material: international standard plate, all tin solder pad, high-strength fire-resistant material, can be repeatedly disassembled.

5, PCB board design is reasonable, using the commonly used patch components.

6, the circuit working voltage 5V

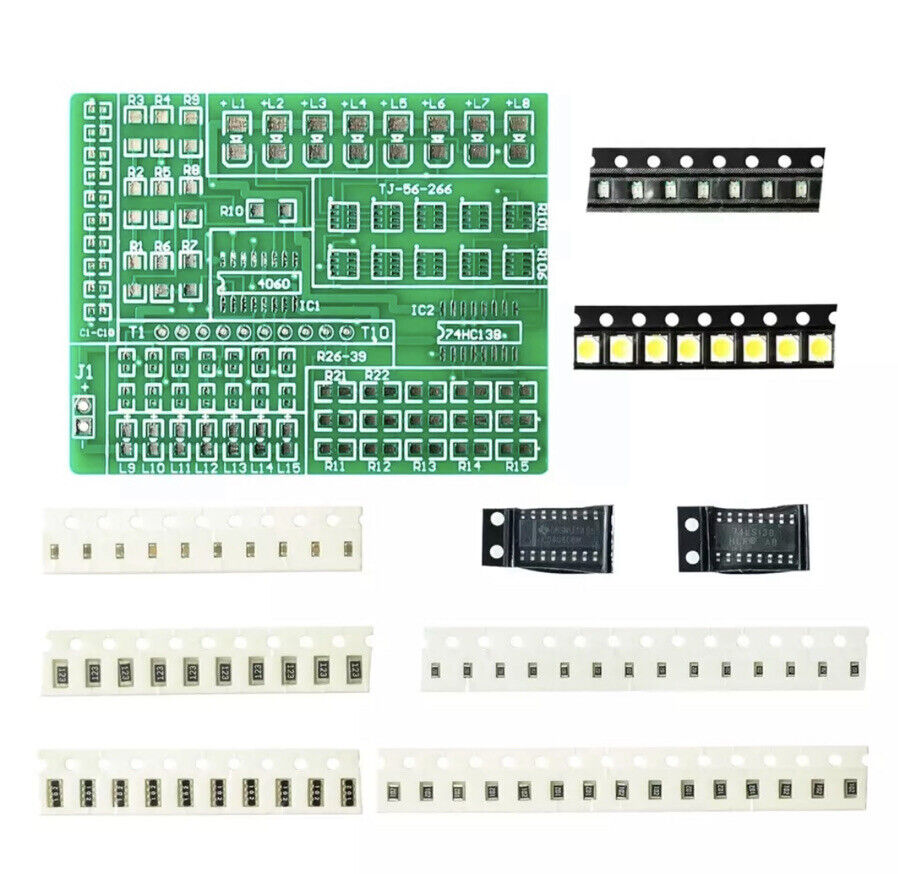

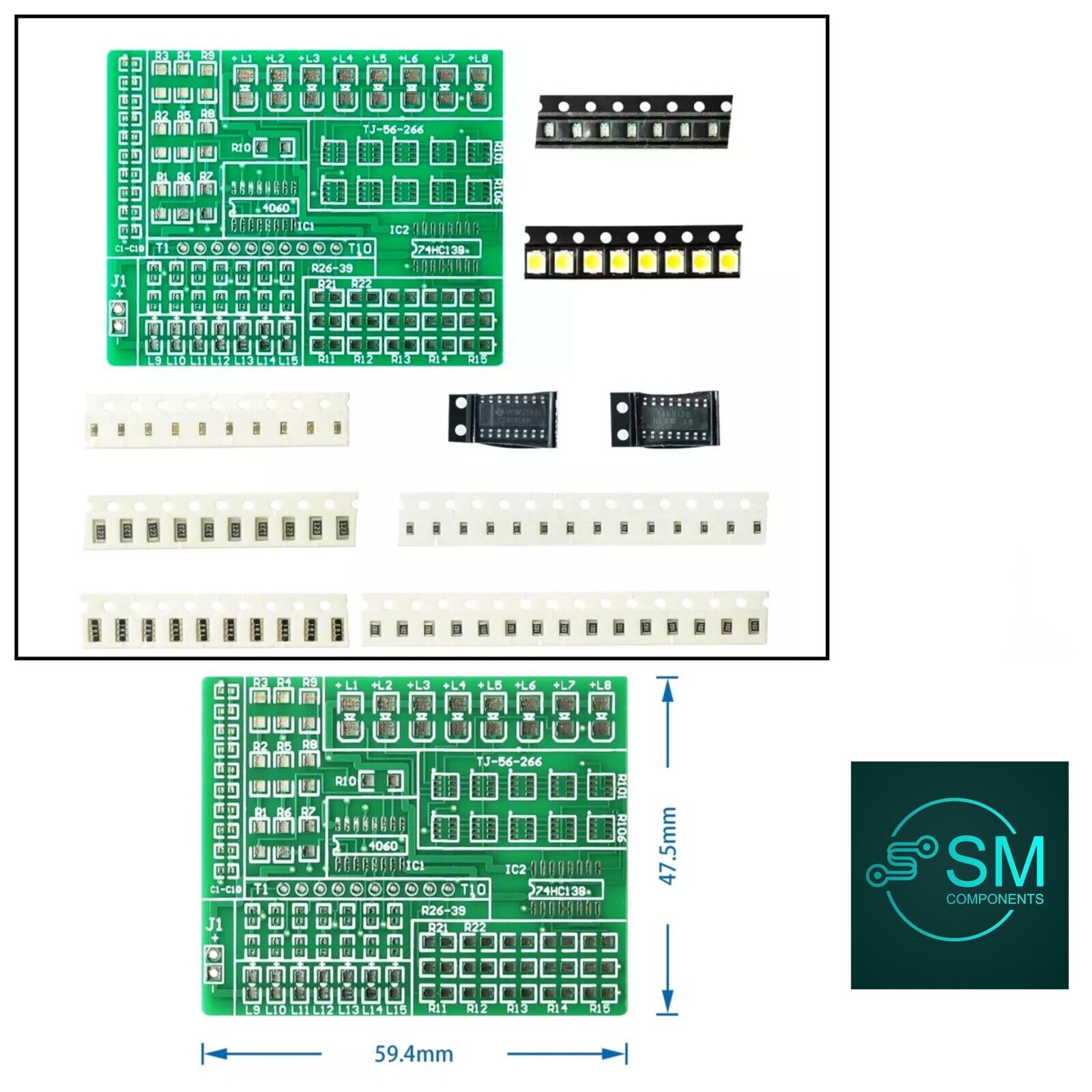

7. This kit contains all the components in the photos below.
