SMD-SMT Soldering Practice Board Huge Component Count LED DIY Kit Electronic PCB

Brand: Generic

Mounting Style: Surface Mount

Soldering Practice SMD CD4511 Numerically set out LEDS Board DIY Kit Electronic PCB.

Note:This module is DIY Kit ,Not a finished product.

Item is ‘Brand New’ sent with Australia Post Regular Letter, NO TRACKING

SMD Component Soldering Test Kit High-strength Practice Board Skills Competition PCB Soldering

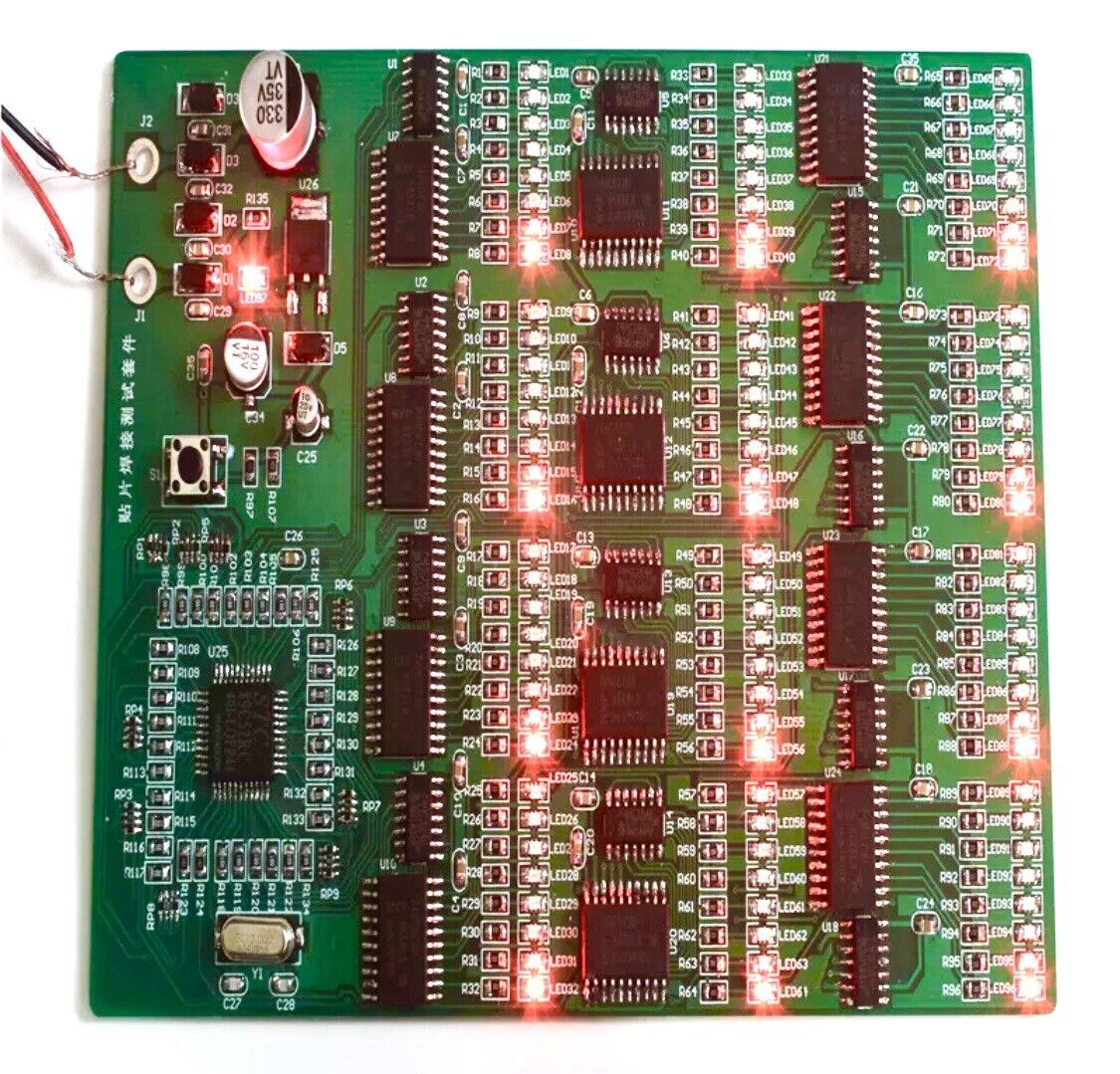

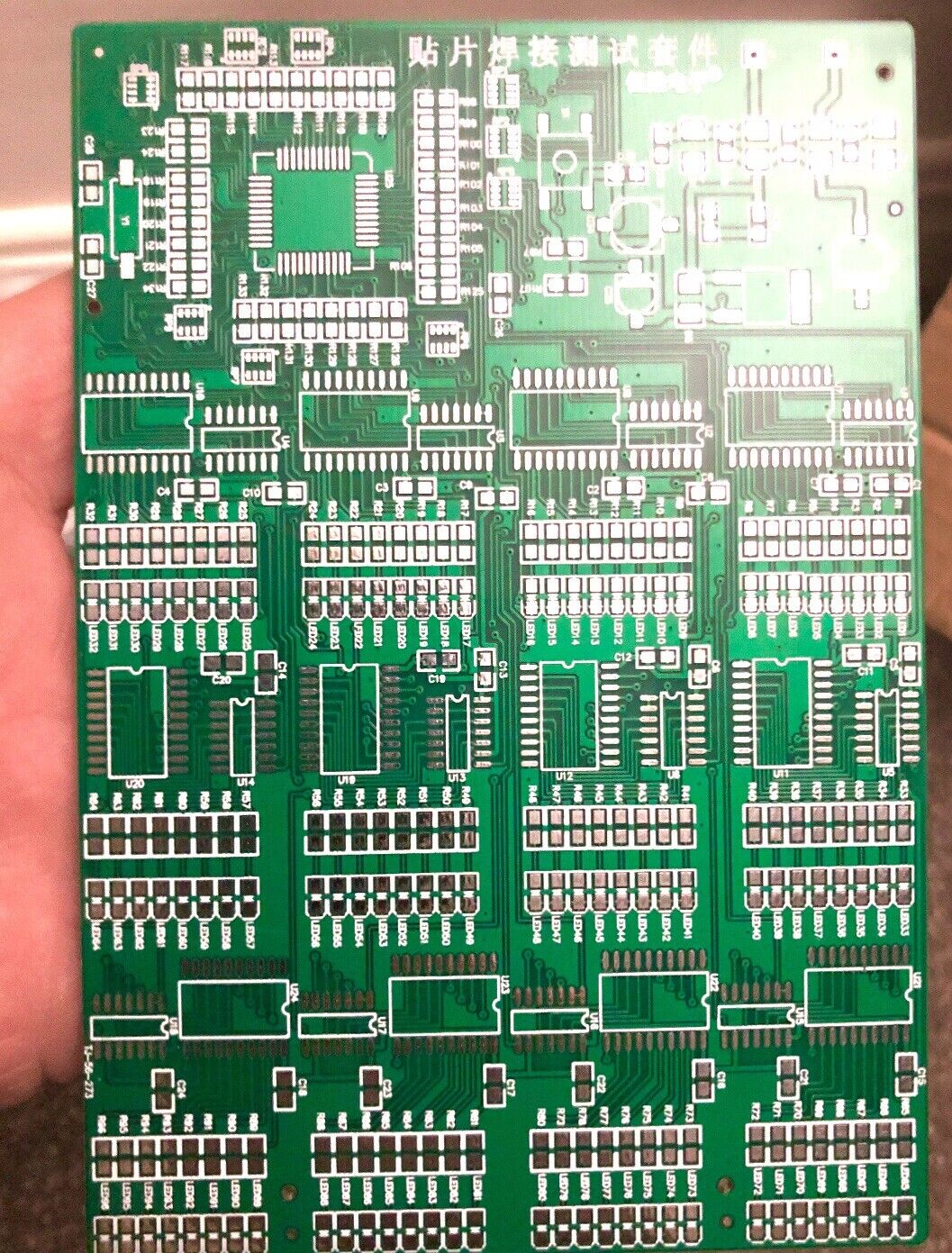

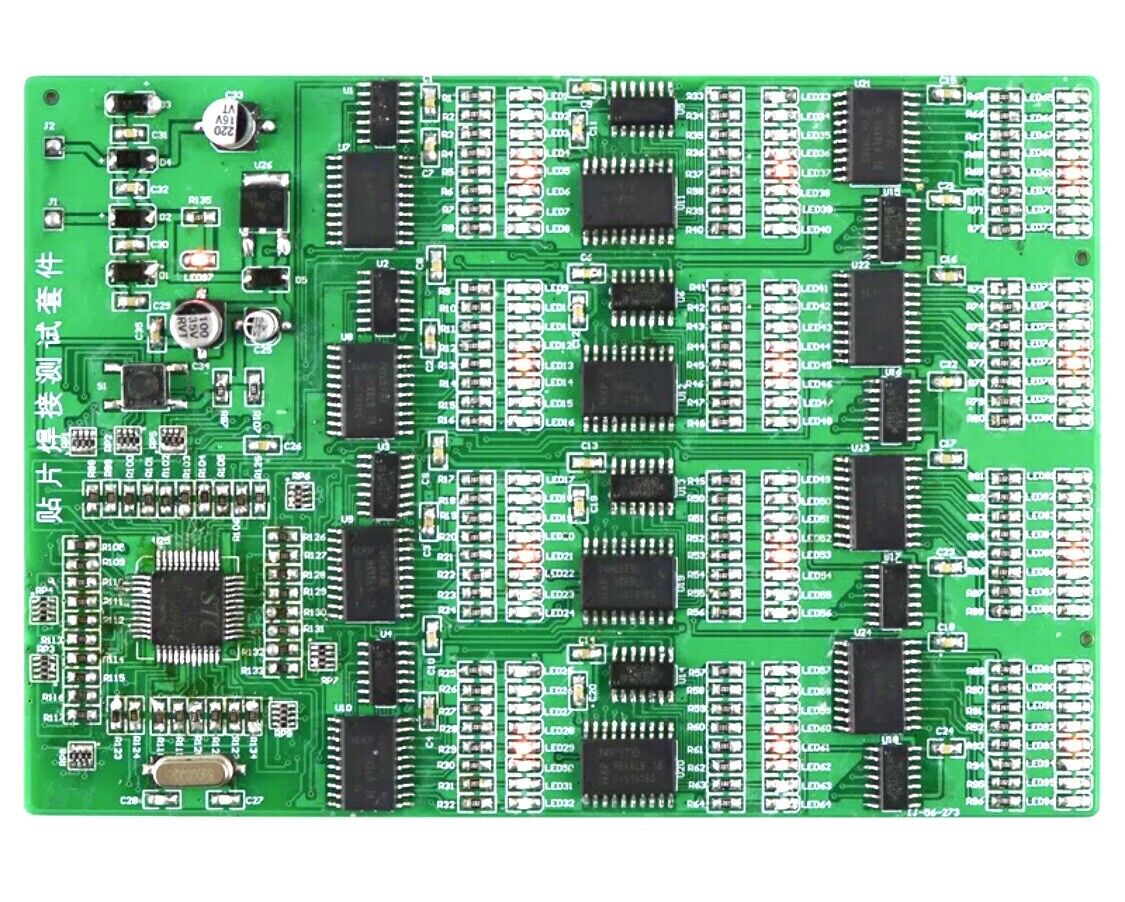

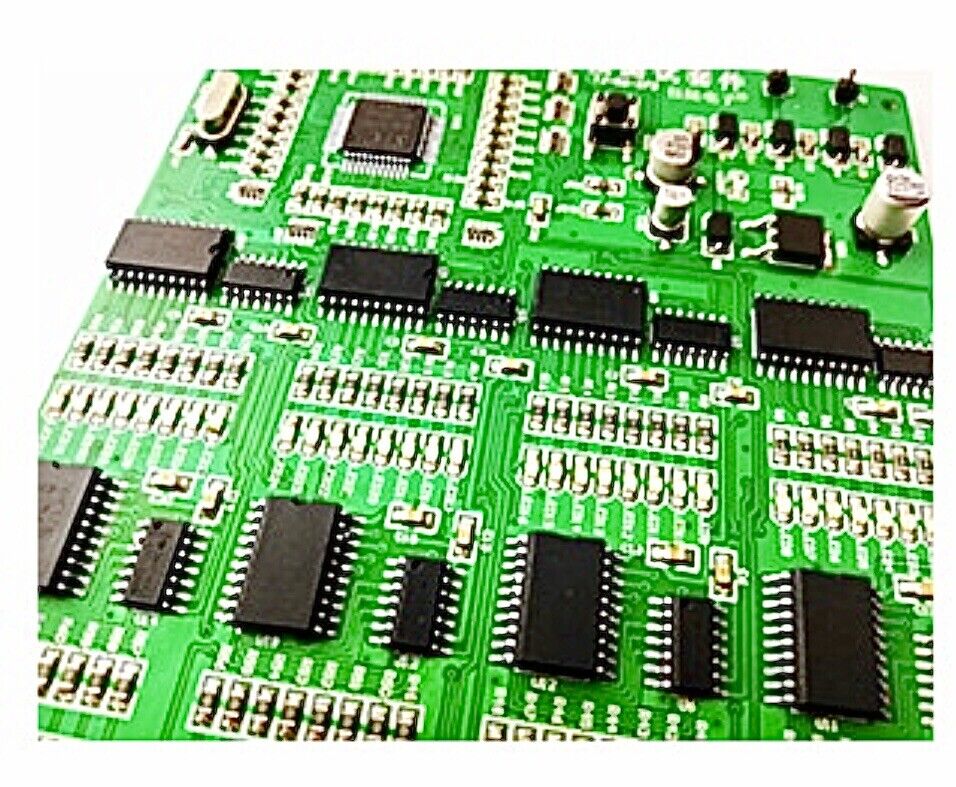

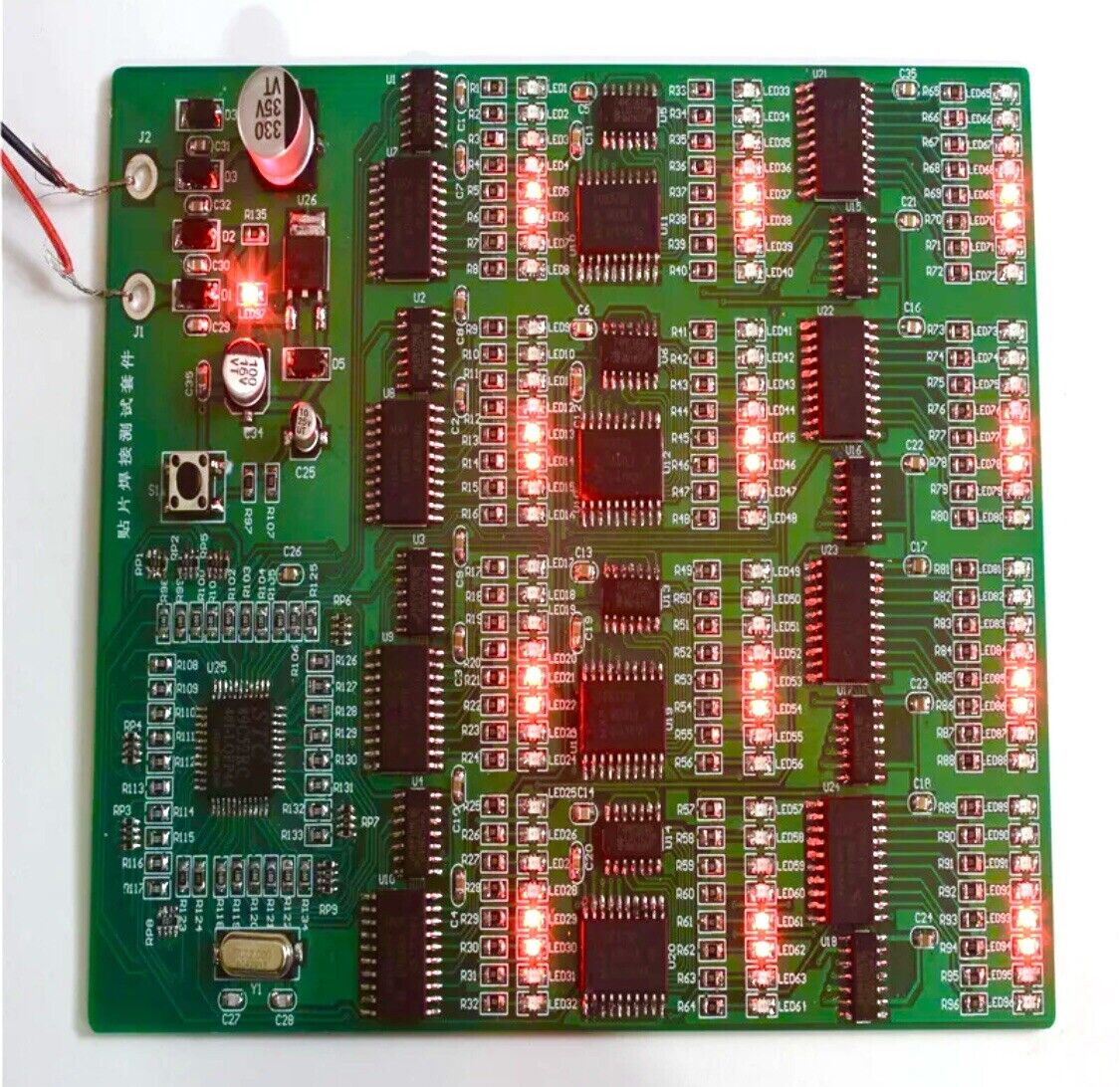

This kit contains 0805 packaged resistors, capacitors, SMD aluminum capacitors, SMD exclusion, SMD crystals, SMD LED lights, SMD diodes and SMD chips in packages such as sop14, sop20, TQFP44, etc. There are 12 SMD groups The test area, the welding difficulty is arranged from low to high, each group can be tested independently, with short circuit and virtual welding test functions, and the success of the welding can be judged according to the display of the LED light. There are 12 groups of patch test areas, containing a total of 300 SMD welding components. Through welding, the welding ability, speed and circuit maintenance ability of various SMD components can be improved to meet the difficulty of the competition. It also has a self-check function. You can see the welding results and welding errors when the power is turned on. .

Use solder length: 35CM (diameter: 0.6mm)

Sample soldering time: 50-60 minutes

Note:

Please allow 0.5-1cm errors due to manual measurement

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same

*This board is a practice board. It is mainly used for practice soldering of surface mount technology (SMT) with surface mount devices (SMD)
