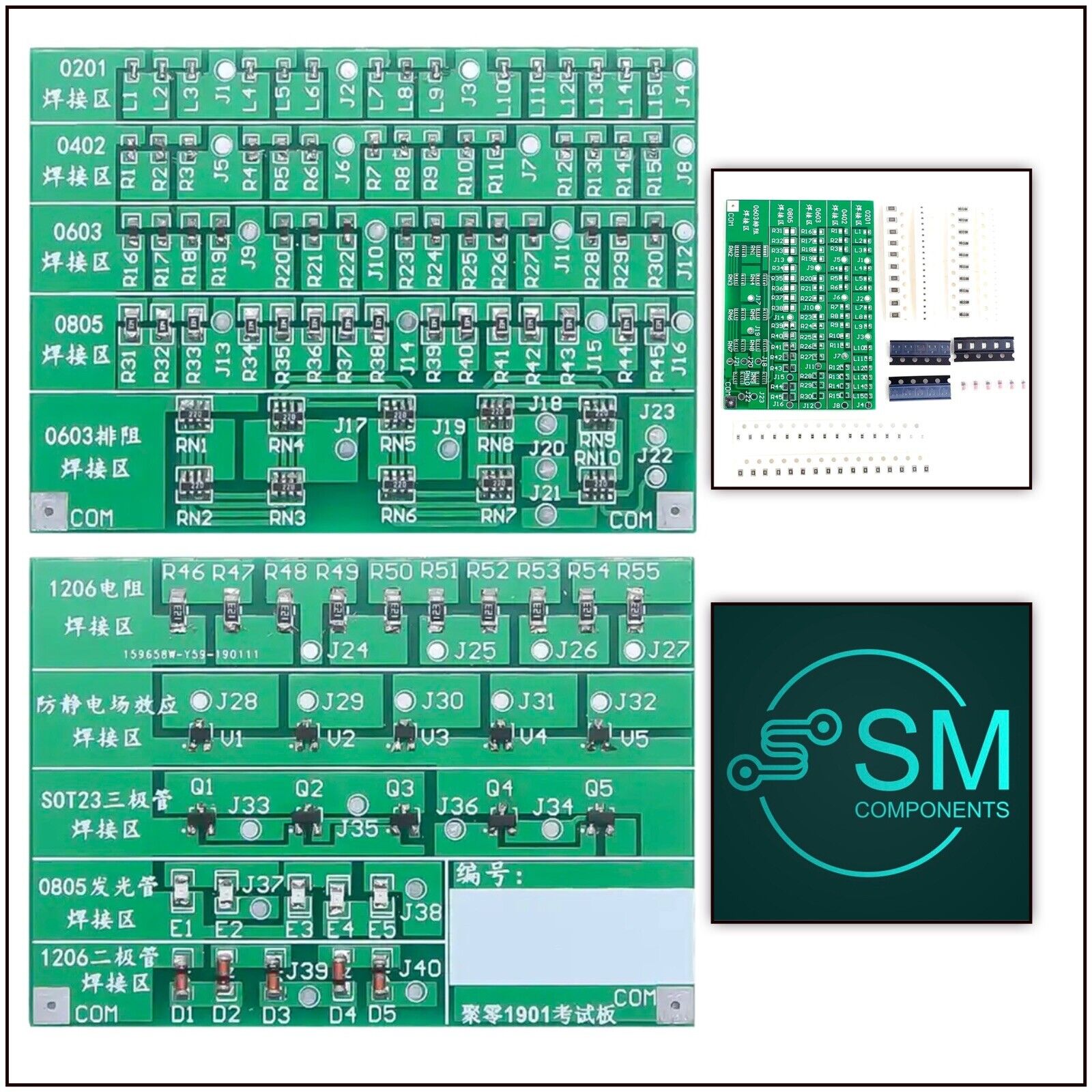

Soldering Practice SMD/SMT 0201 0402 0603 0805 LEDS Board DIY Kit Electronic PCB

Brand: Generic

Mounting Style: Surface Mount

1 x Double Sided FR-4 Soldering Practice SMD LEDS Board DIY Kit Electronic PCB. Soldering Sizes Include 0201, 0402, 0603, 0805, 1206,

Note:This module is a DIY Kit ,Not a finished product.

Item is ‘Brand New’ sent with Australia Post Regular Letter, NO TRACKING

Feature:

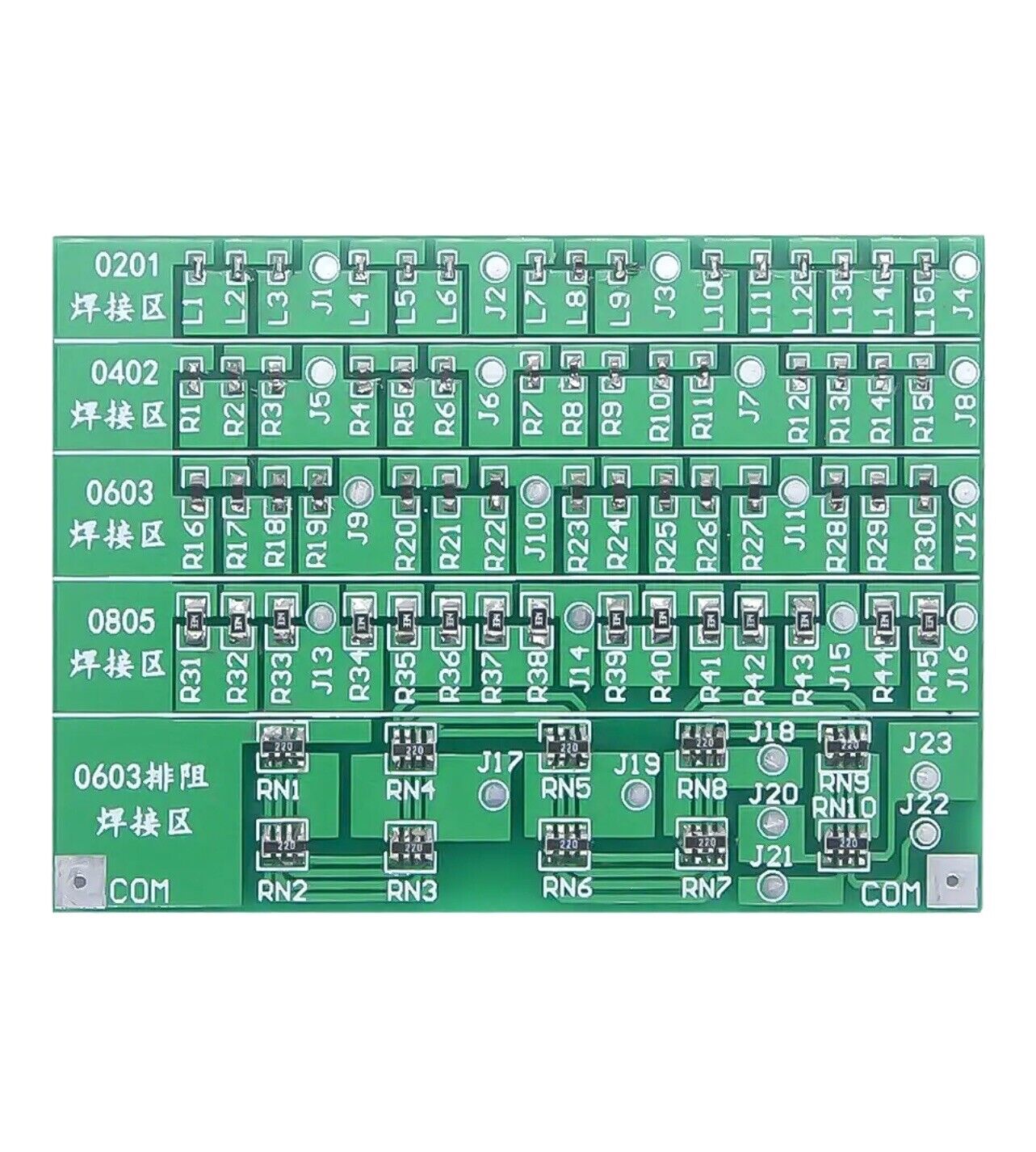

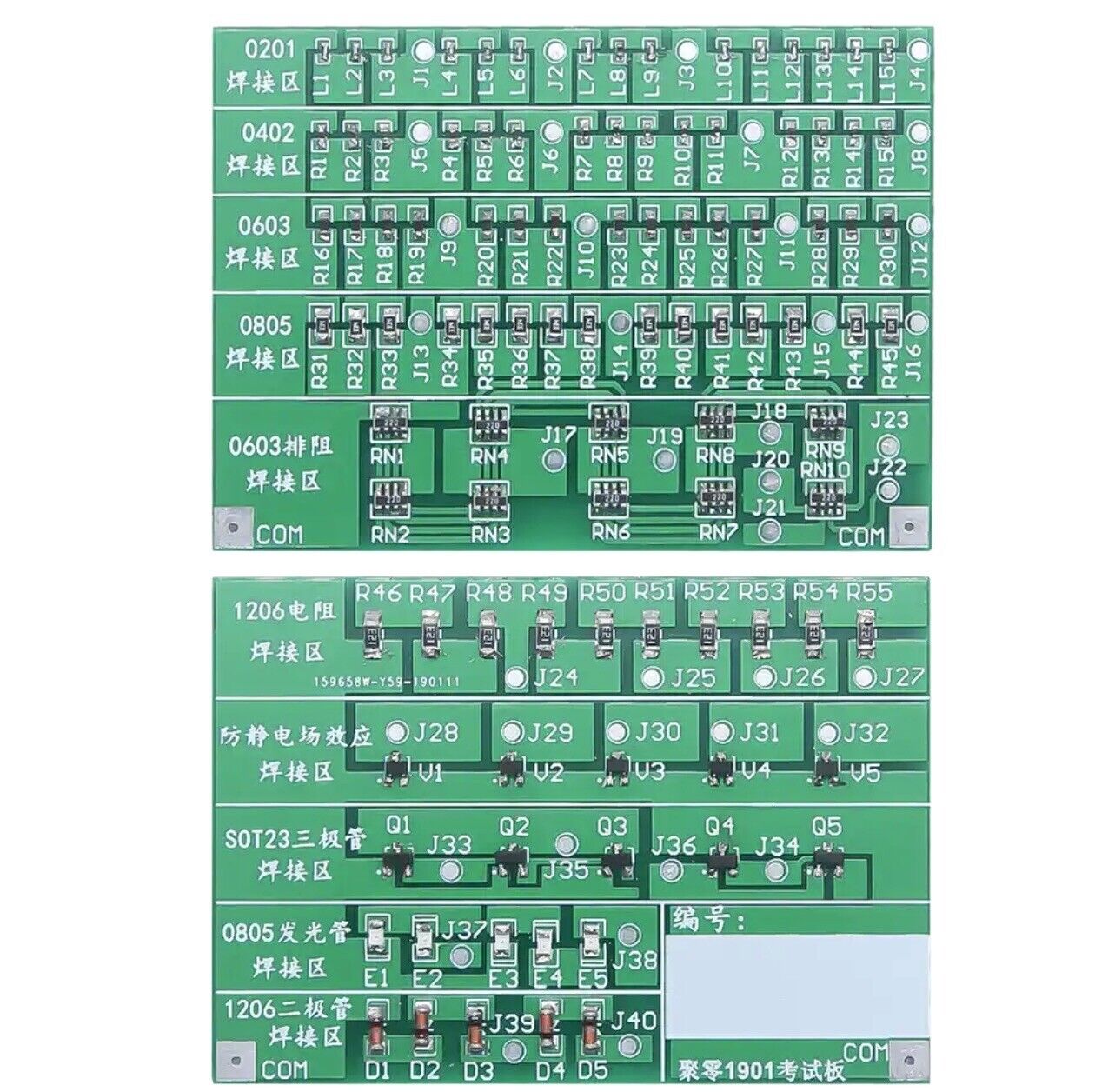

Double Sided Practice Board

1. Function:

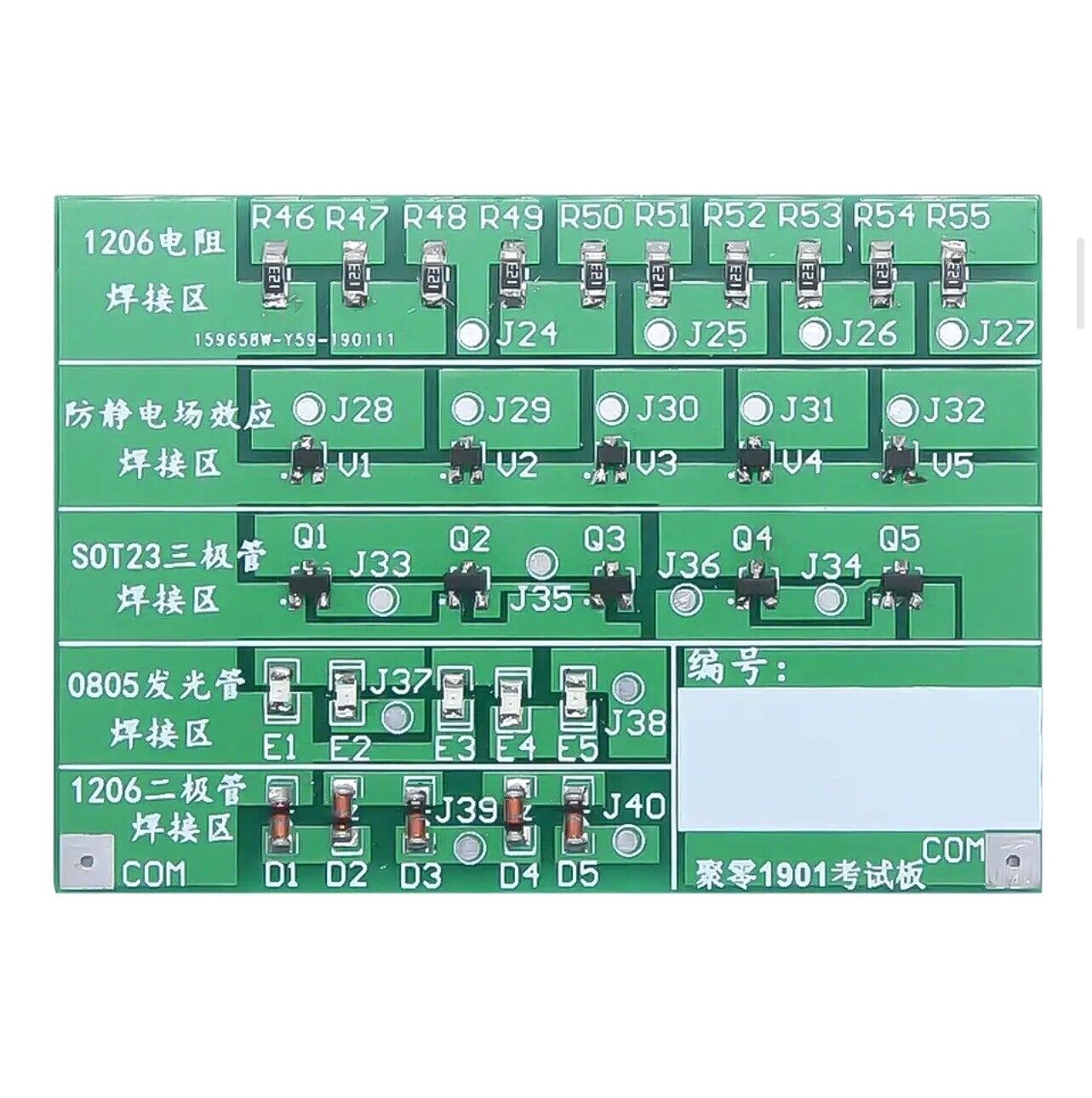

1).This kit incorporates ultra-small components such as 0201 and 0402, and also incorporates SOT323 anti-static FETs, which greatly increases the difficulty of soldering, and is especially suitable for factory job selection and competition.

2).1901 SMD Welding Practice Exam Kit: There are 7 major functions as follows. Training, exams, and competitions are preferred.

3).Training - There are 10 components in 10 categories and 210 solder joints, which can be practiced or tested.

4).Comprehensiveness - The circuit has 10 types of commonly used components, adding 0201, 0402, anti-static field tube and other components, and can be familiar with the use of more components.

5).Practicality - The circuit imitates the anti-static requirements of the factory, increases the ultra-small components, and is more practical.

6).Simulation - with simulation questions, can be used for competition, selection, exams and other references.

Sample soldering time: 60 minutes

Note:

Please allow 0.5-1cm errors due to manual measurement

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same

*This board is a practice board. It is mainly used for practice welding..

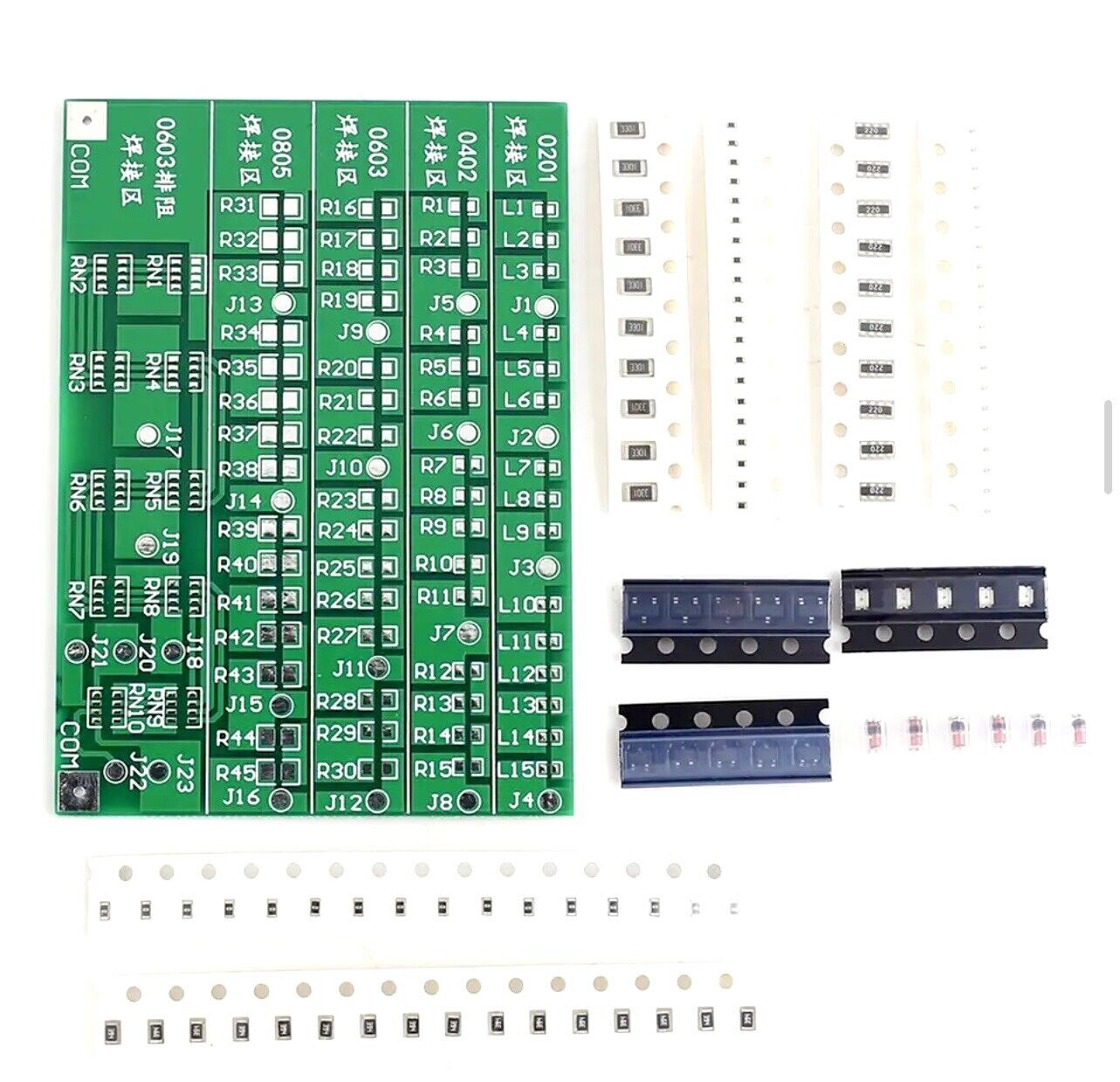

Packing List:

Random SMT/SMD Components

PCB
