Soldering Practice SMD/SMT 0201 0402 0603 0805 SOT LEDS DIY Kit Electronic PCB

Brand: Generic

Mounting Style: Surface Mount

PCB Type: Double-Sided PCB

Operating Voltage: 3-5V

Item Height: 1.5 mm

Material: FR-4,Plastic,Metal

Item Length: 60mm

Country/Region of Manufacture: China

Item Width: 90mm

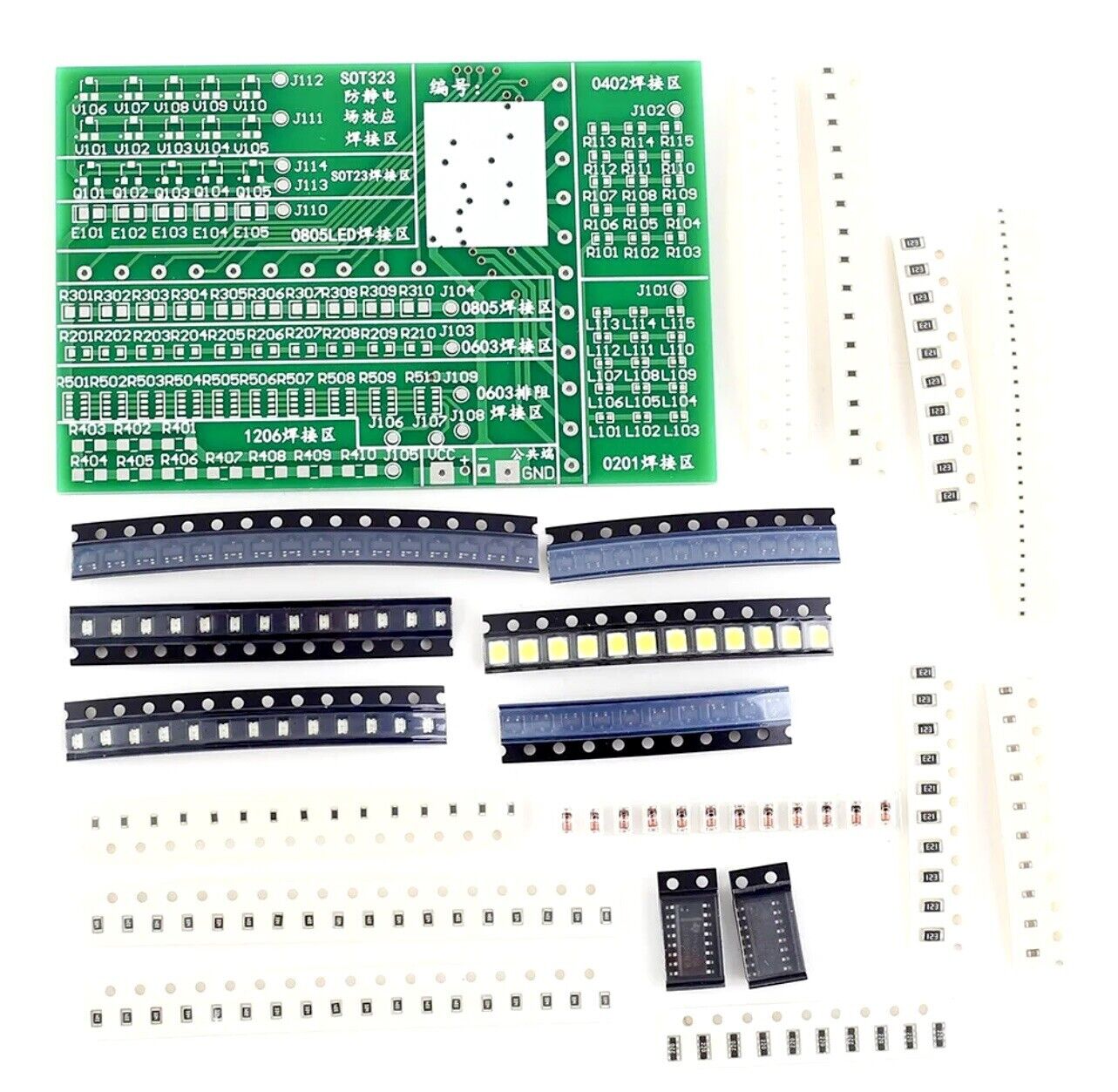

1 x Double Sided FR-4 Soldering Practice SMD LEDS Board DIY Kit Electronic PCB. Soldering Sizes Include 0201, 0402, 0603, 0805, 1206,

Note:This module is a DIY Kit ,Not a finished product.

Item is ‘Brand New’ sent with Australia Post Regular Letter, NO TRACKING

Feature:

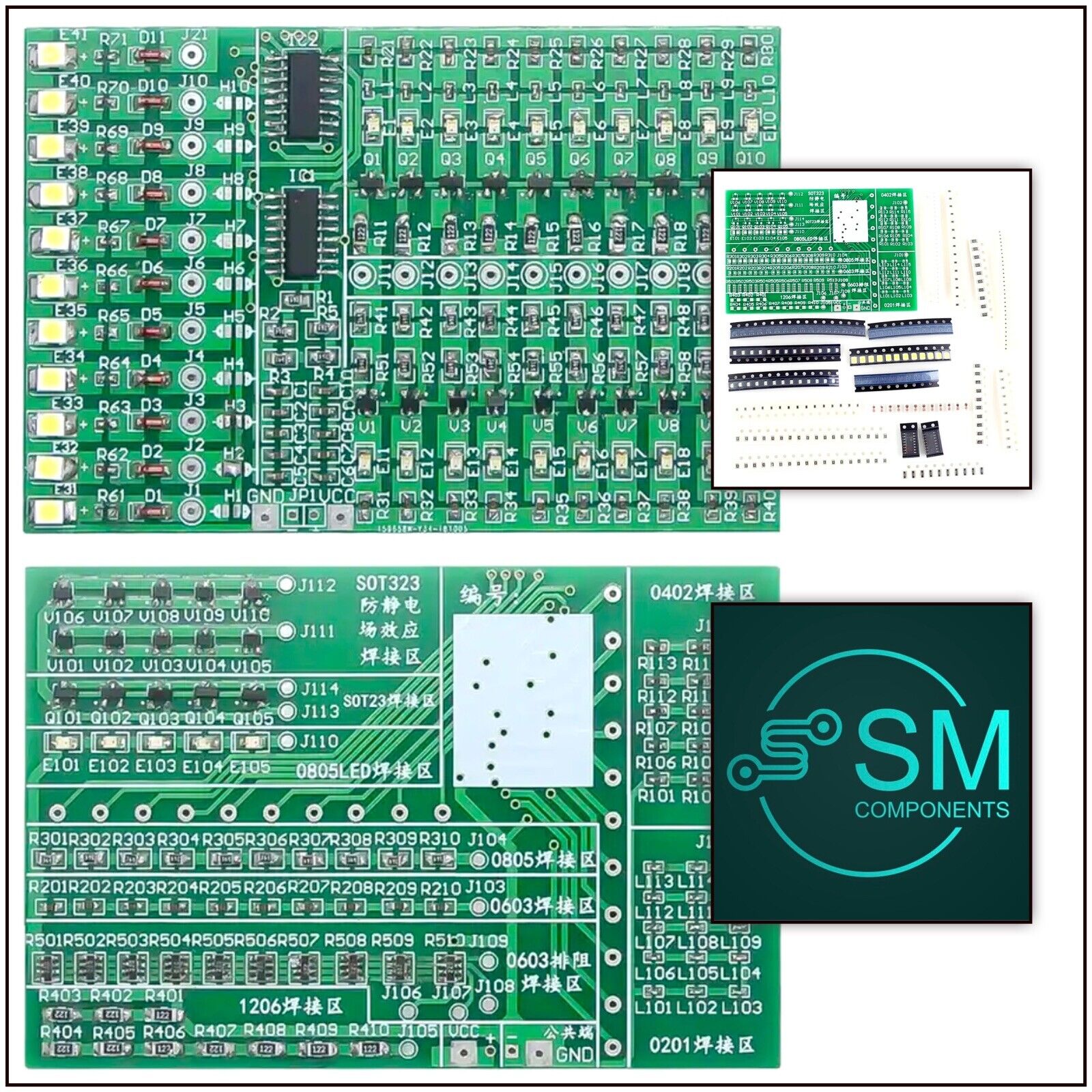

Double Sided Practice Board

1. Function:

Two Sided Practice Soldering Kit

1. Function:

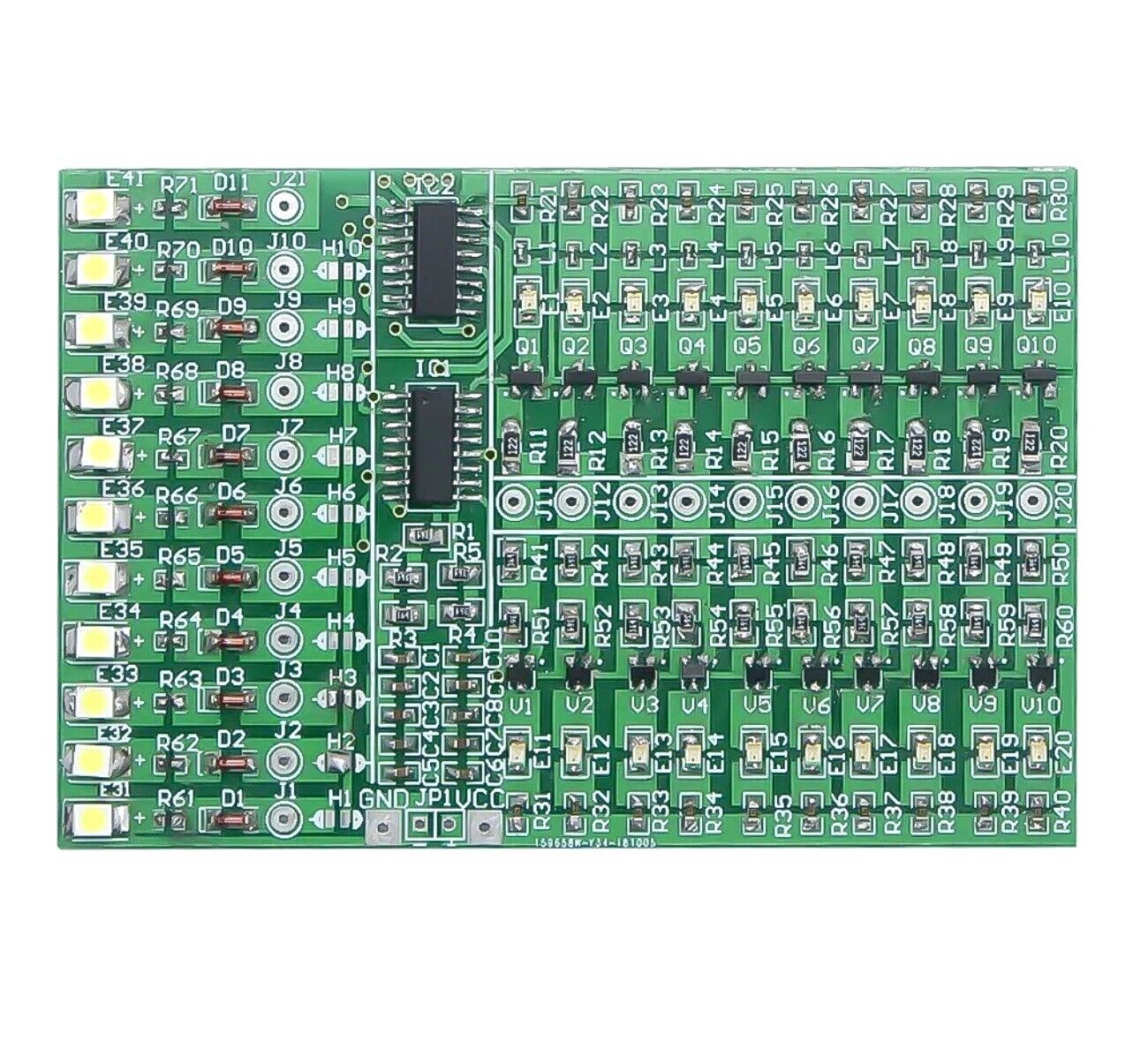

1).Interesting - add 4-6V after the circuit is installed, it is a 10-way binary counting light + 11 road with a carry-in water lamp, novelty fun.

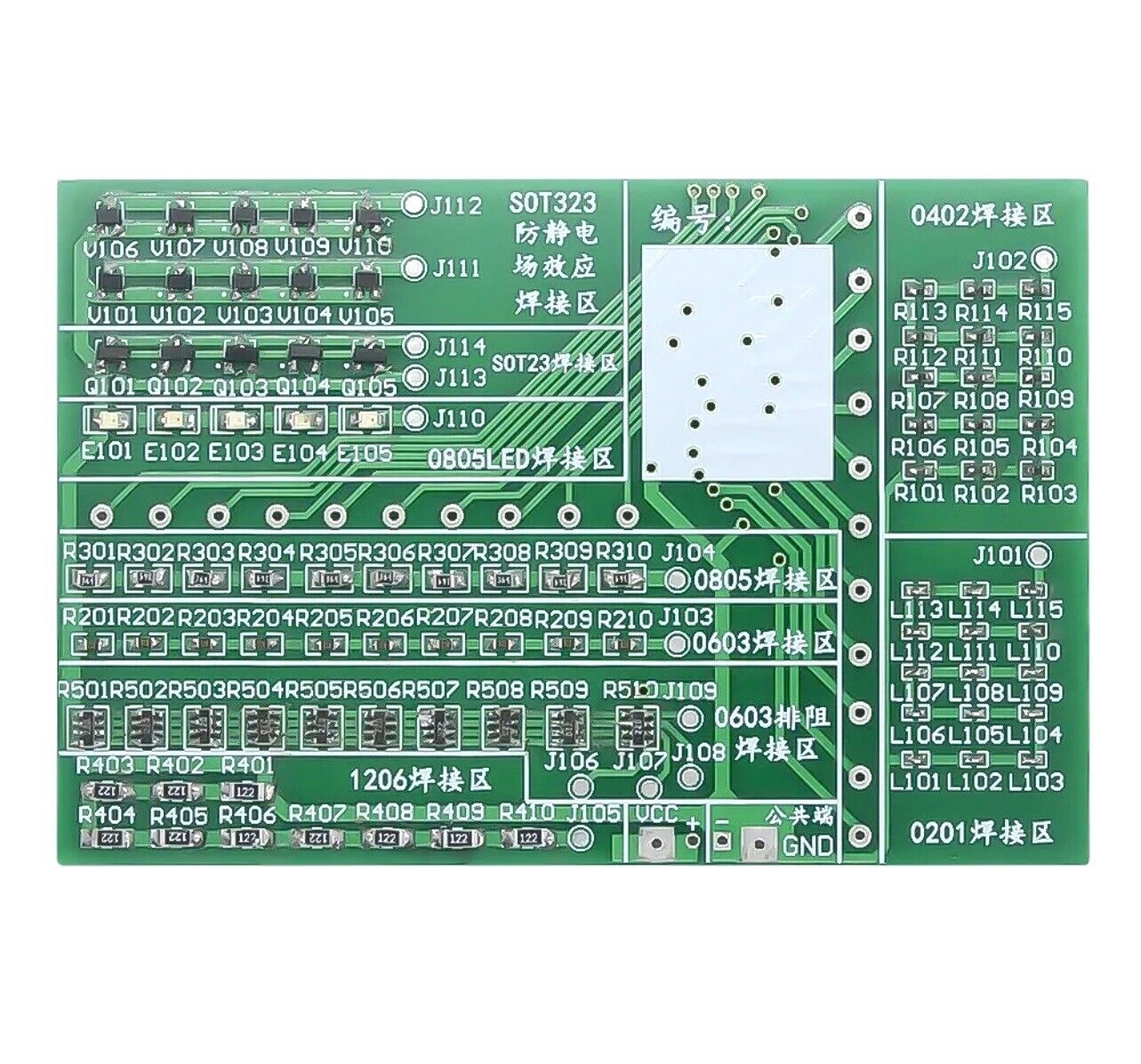

2).Training - There are 240 components and 603 solder joints. It can be divided into practice and test surfaces. It can be practiced or tested.

3).Comprehensiveness - The circuit has 14 types of commonly used components, adding 0201, 0402, anti-static field tube and other components, and can be familiar with the use of more components.

4).Practicality - The circuit has a specific function, which is an electronic work, and it is more practical to imitate the anti-static requirements of the factory.

5).Simulation - with simulation questions, can be used for competition, selection, exams and other references.

6).Conservative - can be used repeatedly for desoldering, improve the utilization rate, and both the front and the back can be used to save costs.

7).Flexibility - Each component is numbered, no parameters are specified, and parameters can be flexibly adjusted. Questions can be modified as needed.

8).Intelligent - the circuit can be energized to intelligently determine whether the welding is normal, 31 indicators can see the location of the fault point.

9).Innovative – the circuit design is novel and the difficulty can be adjusted as needed.

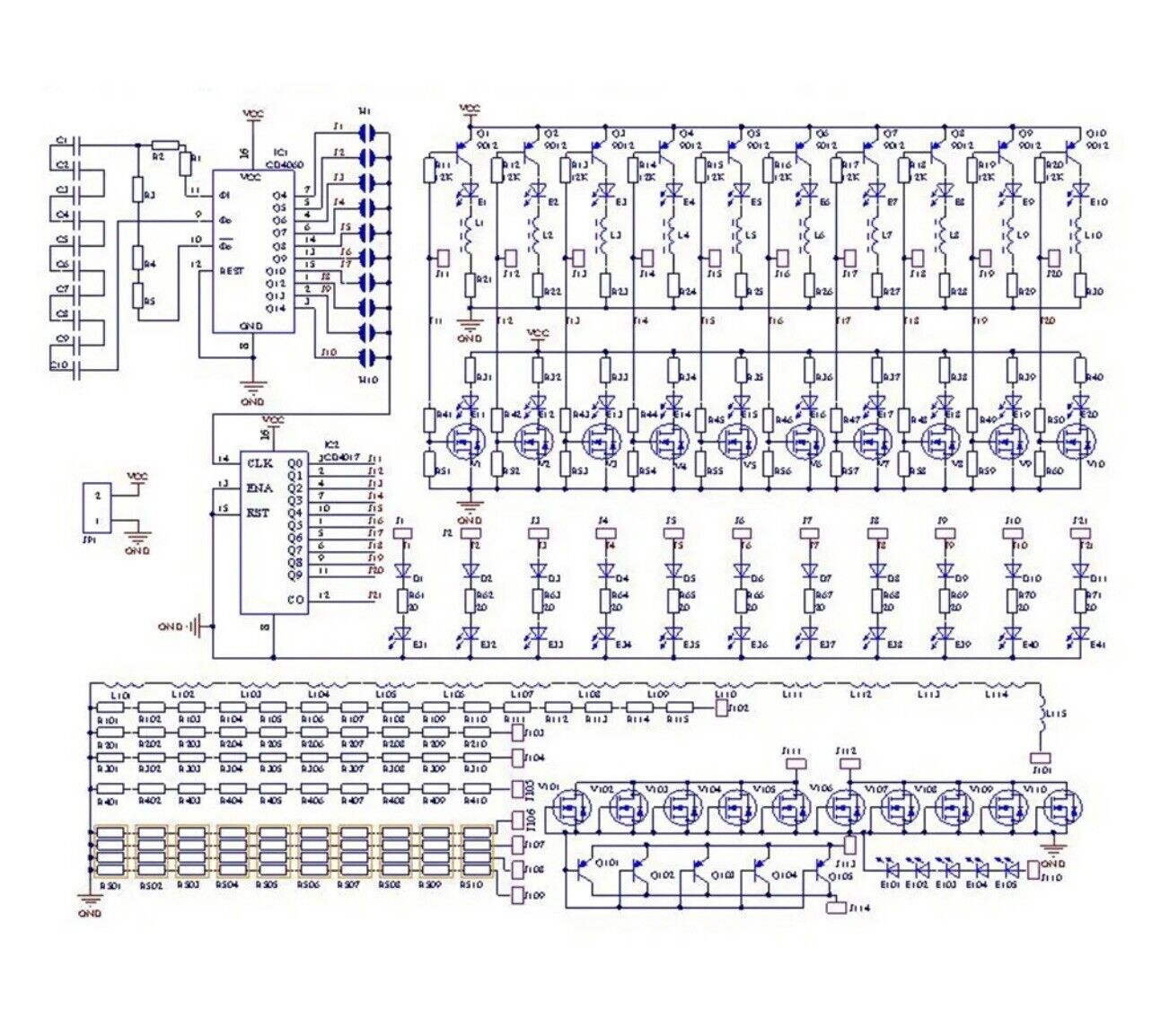

10).Technical - The circuit has a unique working principle, provides a complete schematic, and has 35 test points to facilitate various tests, which is conducive to improving the theoretical level.

Sample soldering time: 60 minutes

Note:

Please allow 0.5-1cm errors due to manual measurement

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same

*This board is a practice board. It is mainly used for practice soldering..

Packing List:

Random SMT/SMD Components

PCB
