Soldering Practice SMD/SMT 0603-0805 SOP8 DIY Kit Electronic PCB Education Board

Brand: WAVGAT

Mounting Style: Surface Mount

PCB Type: Double-Sided PCB

Operating Voltage: 0 V

Item Length: 90 mm

Country/Region of Manufacture: China

Item Width: 54.61 mm

Soldering Practice SMD DIY Circuit Board PCB SMT SMD Component Soldering Practice Board SOP8 Chip 0805 PCB 0603 DIY Kit For Skill Training in Electronics

Item is ‘Brand New’ sent with Australia Post Regular Letter, NO TRACKING

THIS IS AN SMT/SMD SOLDER PRACTICE KIT ONLY. IT IS A NON POWERED PCB.

All components have series test points to allow you to check every solder joint

Features:

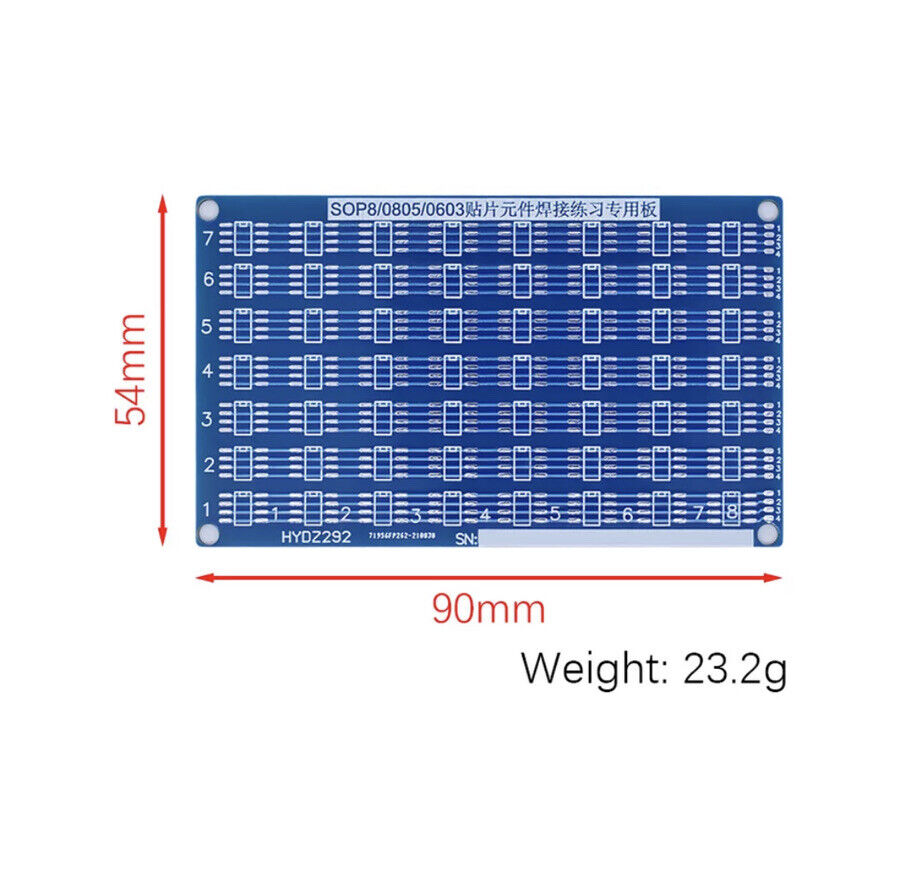

1. Board Size;90 x 54mm

2. Board Thickness: 1.6mm

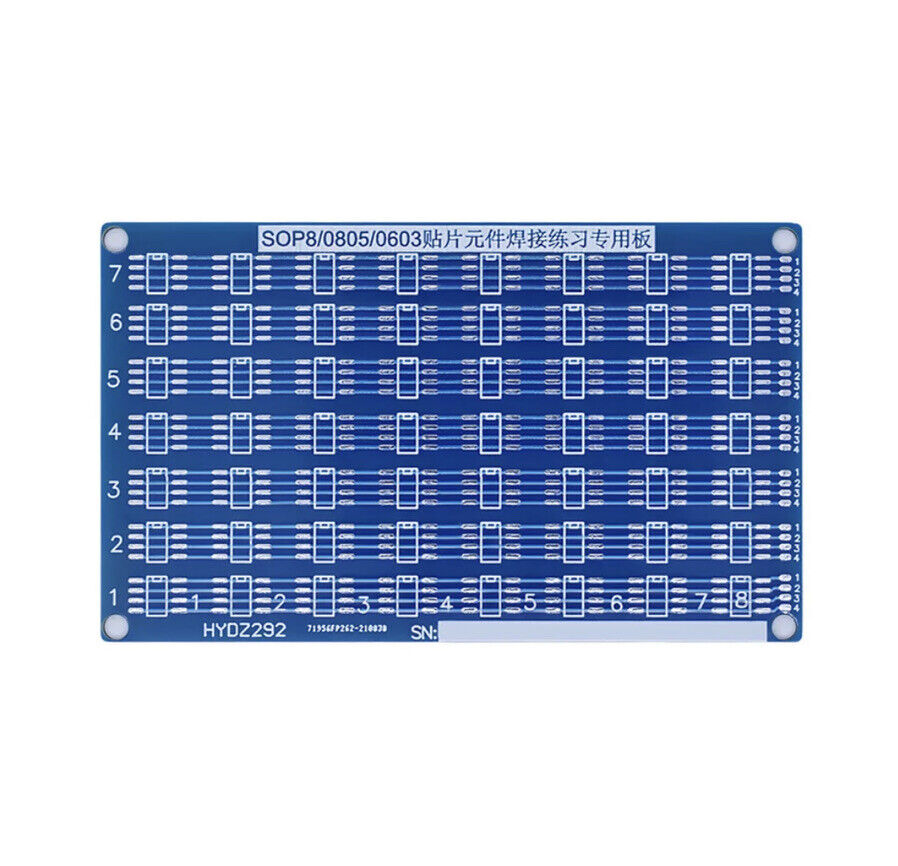

3. 0805-0603 SOP-8 Circuit

4. Operating Voltage :0 VOLTS

5. PCB material: international standard sheet, FR4 all tin pad, high strength fire drop material, can be repeated disassembly.

6. PCB board design is designed with commonly used SMD components sizes.

7. Both front and back are densely packed with SMD components.

8. Number of components: 56 x SOP8, 50 x 0805 resistors, 50 x 0603 resistors.

9. Number of solder joints: 688

Use solder length: 50-60 CM (diameter: 0.6mm)

Sample soldering time: 40-50 minutes

Note:

Please allow 0.5-1cm errors due to manual measurement

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same

*This board is a practice board. It is mainly used for practice welding. There are no specific parameters, so the resistance will be shipped randomly.

Packing List:

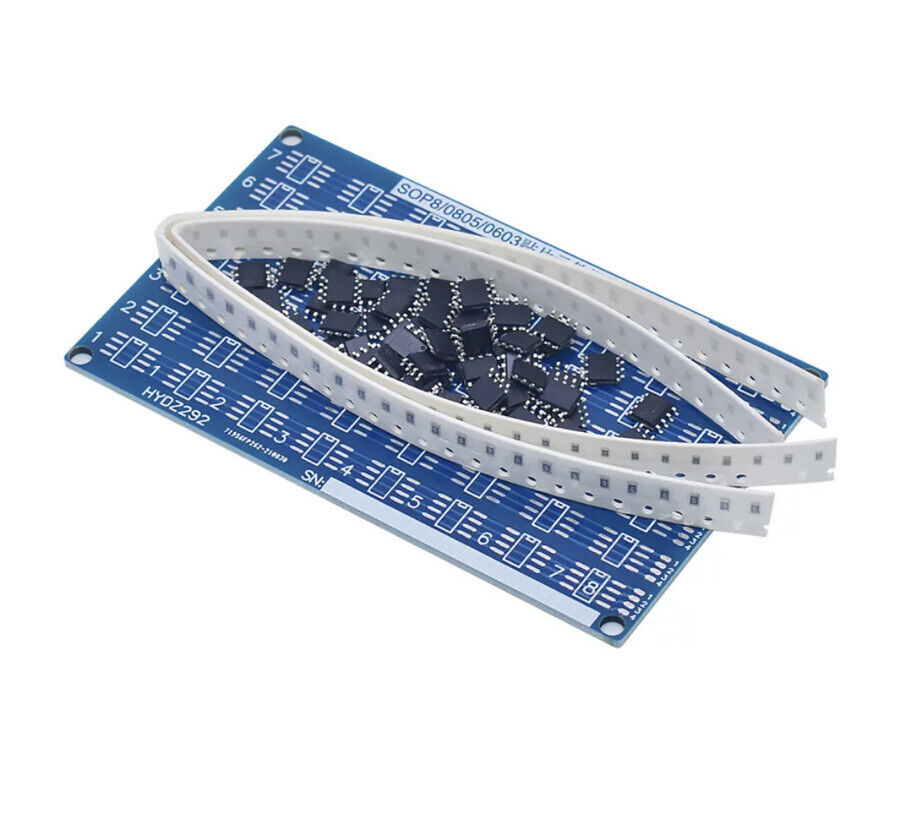

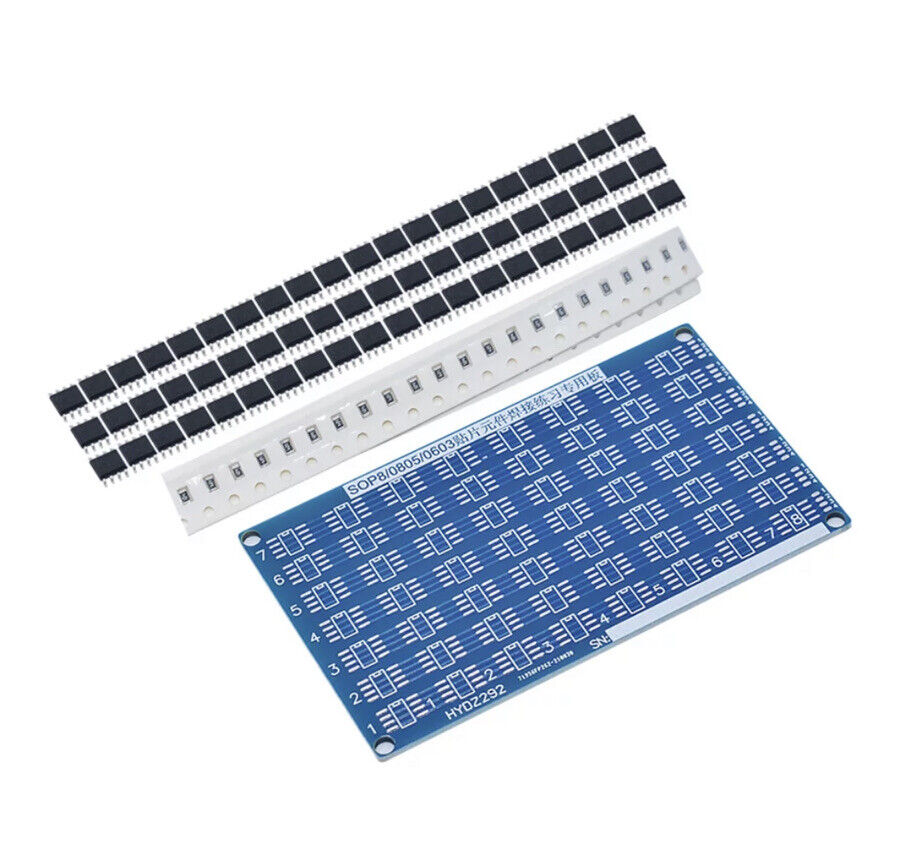

Random SMT/SMD Components

PCB
