UD24 DC5.5 USB tester Type-C digital voltmeter ammeter power bank Watt Meter

Brand: ATorch

Type: Voltmeter Ammeter

Model Number:: UD24

Type:: USB Watt Meter

Model: UD-24

DIY Supplies: ELECTRICAL

MPN: Does Not Apply

Display Type:: Analog and Digital

Certification: CE

Power Supply: DC

UD24 DC5.5 USB tester Type-C digital voltmeter ammeter power bank voltage.

Product description

It can be used as a USB tester or as a DC voltmeter. It is a high-end product created by the wisdom of the industry!

UD24 2.4"inch USB tester DC5.5 Type-C digital voltmeter ammeter power bank voltage detector volt QC PD electric meter for APP

Voltage measurement range: 5V~32.0V

Current measurement range: 0.00~ 5.10A

Timing time: 999 hours 59 minutes 59 seconds

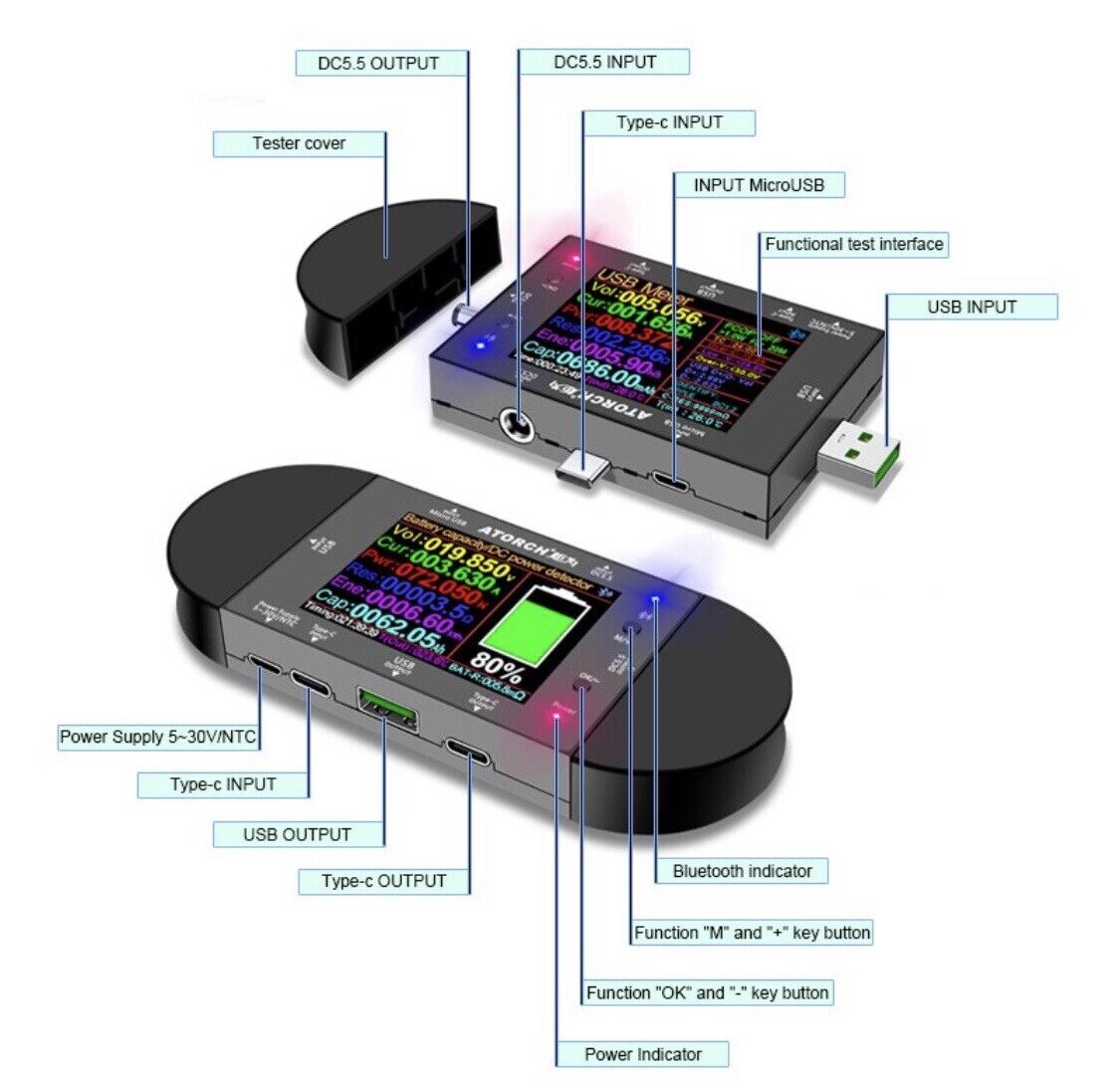

Input interface: Type-C/Micro USB/USB

Output interface: Type-C/USB

Timing charging reminder setting: countdown 24 hours any set value

USB D+ voltage range: 0V~2.99V

USB D- voltage range: 0V~2.99V

Refresh time:> 500mS/ times> 500mS/ times

Measurement rate: about 0.5 times/sec

Alarm mode: siren sound + display prompt double warning

Display type: large screen with true color digital display with heavy cost 2.4 Chinese and English measurement interface

Self-consumption current: <0.02A

Working temperature: -10~+60°C -10~+60°C

Working humidity: 10~80 (no doubt) 10~80 (no doubt)

Working pressure: 80~106kPa

Pure digital interface, 360° rotating display

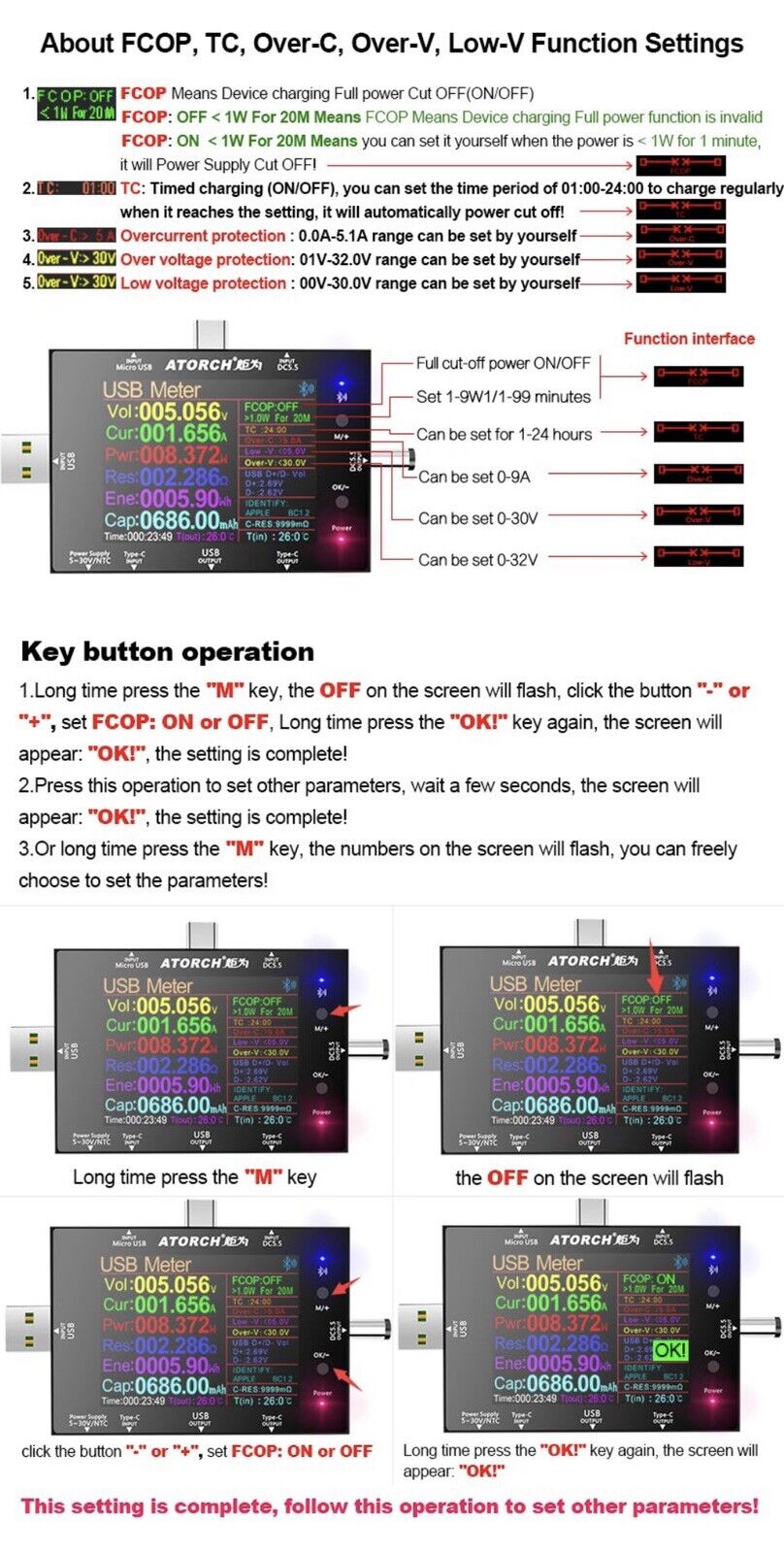

Short press the "M" button or the“OK” button to display the pure digital measurement interface, then long press the "M" button or the “OK” button, the digital display measurement interface will rotate clockwise or counterclockwise

UD24 Startup screen and function test interface
