WS2812B 5050 RGB LED Integrated Driver Module 4-93 Bits Development Board 5V DIY

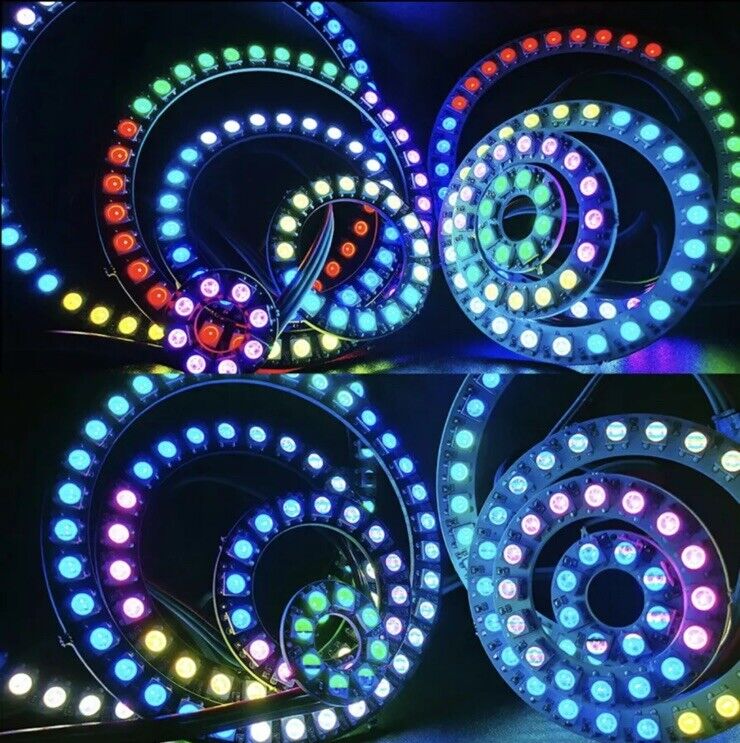

Description: 93 Pixel Ring

There is a single data line with a very timing-specific protocol.

Since the protocol is very sensitive to timing,

it requires a real-time microcontroller such as an AVR, Arduino, PIC, mbed, etc.

It cannot be used with a Linux-based microcomputer or interpreted microcontroller

such as the netduino or Basic Stamp.

Chip: WS2812 (built-in LED)

LED:8/16/24/35/45/60/93pcs 5050 RGB full color highlighting

Voltage: DC5V

Package:

WS2812 Led Ring

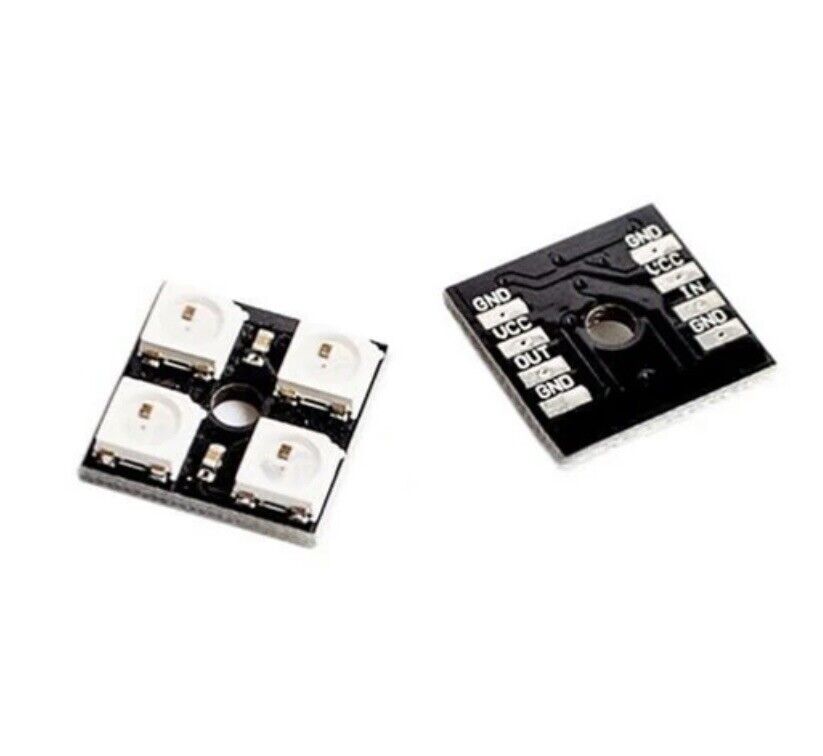

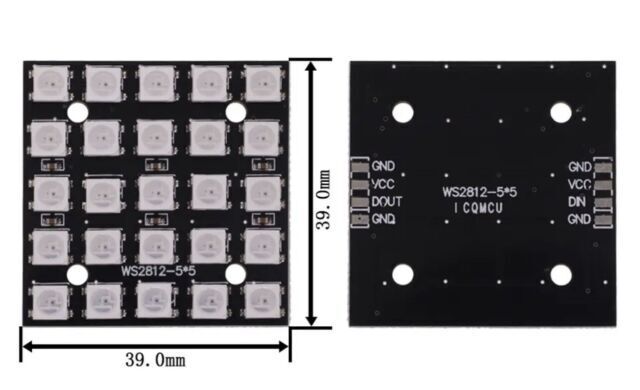

5050 LED Black 4-8-16-25-64

Features

Model: 4-64 bit 5050 full color LED module

Size: Varies with options

Chip: WS2812 (built-in LED)

LED: 5050 package RGB full color highlight

Voltage: 5V

Port: number

5050 bright LED, built-in control chip, only one 10 port can control multiple LEDs.

Chip built-in shaping circuit, the signal distortion will not accumulate, stable display.

Three-color 256-level brightness adjustment,16 million color true color display, scanning frequency of not less than 400Hz / S.

Serial-level interface, through a signal line to complete the data reception and decoding.

Refresh rate of 30 frames / sec, the low-speed mode with the series of not less than 512 points.

Data transceiver speeds up to 800Kbps.

Highlight LED, light color brightness consistency.

Both ends have a series interface, can be directly connected.
